Search results: “revelator” – Page 1

Showing 1–9 of 28 results

•
  Tweeter

  D2908/716000

  ---

  - Bespoke tailored Thin-Ply Carbon Diaphragm (TPCD)
  - Rear Mount Magnet System
  - Patented Symmetrical Drive (SD-2) motor
  - Titanium Voice Coil Former
  - Black Anodized 120mm Machined Alu Faceplate
  - Non Resonant Aluminium Rear Chamber



  Size:	2.6 cm
  Fs:	534 Hz
  Re:	5.7 Ω
  Qt:	0.47
  Sensitivity:	92 dB
  VAS:	0.02 ltr.
  Sd:	7 cm²
  Bl:	3.6 Tm




•
  Tweeter

  D2104/712000

  ---

  - Patented Symmetrical Drive (SD-2) motor
  - Neodymium ring magnet system with double vent.
  - High frequency extension beyond 40kHz
  - Coated textile diaphragm w. large roll Surround
  - Back chamber with high consistency felt pads
  - Anodized Machined Alu Face Plate



  Size:	1.9 cm
  Fs:	500 Hz
  Re:	2.8 Ω
  Qt:	0.40
  Sensitivity:	92 dB
  VAS:	0.01 ltr.
  Sd:	4.5 cm²
  Bl:	2.0 Tm




•
  Midrange

  15M/8631G00

  ---

  - Patented Symmetrical Drive motor system
  - Low loss, low damping linear suspension
  - Sliced cone technology
  - Die cast Alu chassis vented below spider
  - Large ferrite magnet system




  Size:	15 cm
  Fs:	42 Hz
  Re:	5.9 Ω
  Qt:	0.35
  Sensitivity:	87 dB
  VAS:	16.2 ltr.
  Sd:	95 cm²
  Bl:	6.8 Tm




•
  Tweeter

  R2904/700009

  ---

  - 1" Ring Dome Diaphragm
  - Patented Phase Plug Design
  - Patented Symmetrical Drive (SD-2) motor
  - Large Ring Neo Magnet f. High Output
  - Non Resonant Alu Rear Chamber
  - Black Anodized Machined Alu Face Plate



  Size:	2.6 cm
  Fs:	520 Hz
  Re:	3 Ω
  Qt:	0.33
  Sensitivity:	94.5 dB
  VAS:	0.01 ltr.
  Sd:	5.6 cm²
  Bl:	2.8 Tm




•
  Tweeter

  R2904/700005

  ---

  - 1" Ring Dome Diaphragm
  - Patented Phase Plug Design
  - Patented Symmetrical Drive (SD-2) motor
  - Large Ring Neo Magnet f. High Output
  - Non Resonant Alu Rear Chamber
  - Black Anodized Machined Alu Face Plate



  Size:	2.6 cm
  Fs:	520 Hz
  Re:	3 Ω
  Qt:	0.33
  Sensitivity:	94.5 dB
  VAS:	0.01 ltr.
  Sd:	5.6 cm²
  Bl:	2.8 Tm




•
  Tweeter

  R2904/700000

  ---

  - 1" Ring Dome Diaphragm
  - Patented Phase Plug Design
  - Patented Symmetrical Drive (SD-2) motor
  - Large Ring Neo Magnet f. High Output
  - Non Resonant Alu Rear Chamber
  - Silver Anodized Mashined Alu Face Plate



  Size:	2.6 cm
  Fs:	520 Hz
  Re:	3 Ω
  Qt:	0.33
  Sensitivity:	94.5 dB
  VAS:	0.01 ltr.
  Sd:	5.6 cm²
  Bl:	2.8 Tm




•
  Tweeter

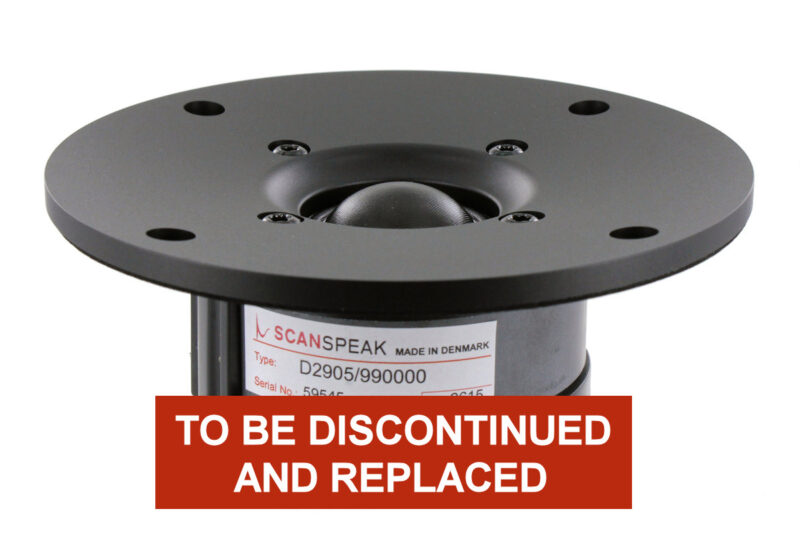

  D2905/990000

  ---

  - Excellent Sound Reproduction
  - 1" Textile Dome Diaphragm
  - Patented Symmetrical Drive (SD-2) motor
  - Wide Surround Textile Diaphragm
  - Large Wave Guide Front
  - Black Anodized Mashined Alu Face Plate



  Size:	2.8 cm
  Fs:	500 Hz
  Re:	4.7 Ω
  Qt:	0.63
  Sensitivity:	91 dB
  VAS:	0.02 ltr.
  Sd:	8.5 cm²
  Bl:	3.5 Tm




•
  Tweeter

  D2904/710003

  ---

  - 1" Coated Textile Diaphragm
  - Large Roll Surround f. Wide Dispersion
  - Patented Symmetrical Drive (SD-2) motor
  - Large Ring Neo Magnet f. High Output
  - Non Resonant Alu Rear Chamber
  - Black Anodized Machined Alu Face Plate



  Size:	2.6 cm
  Fs:	520 Hz
  Re:	3 Ω
  Qt:	0.44
  Sensitivity:	94.5 dB
  VAS:	0.02 ltr.
  Sd:	7 cm²
  Bl:	2.8 Tm




•
  Tweeter

  D2904/710002

  ---

  - 1" Coated Textile Diaphragm
  - Large Roll Surround f. Wide Dispersion
  - Patented Symmetrical Drive (SD-2) motor
  - Large Ring Neo Magnet f. High Output
  - Non Resonant Alu Rear Chamber
  - Silver Anodized Machined Alu Face Plate



  Size:	2.6 cm
  Fs:	520 Hz
  Re:	3 Ω
  Qt:	0.44
  Sensitivity:	94.5 dB
  VAS:	0.02 ltr.
  Sd:	7 cm²
  Bl:	2.8 Tm
