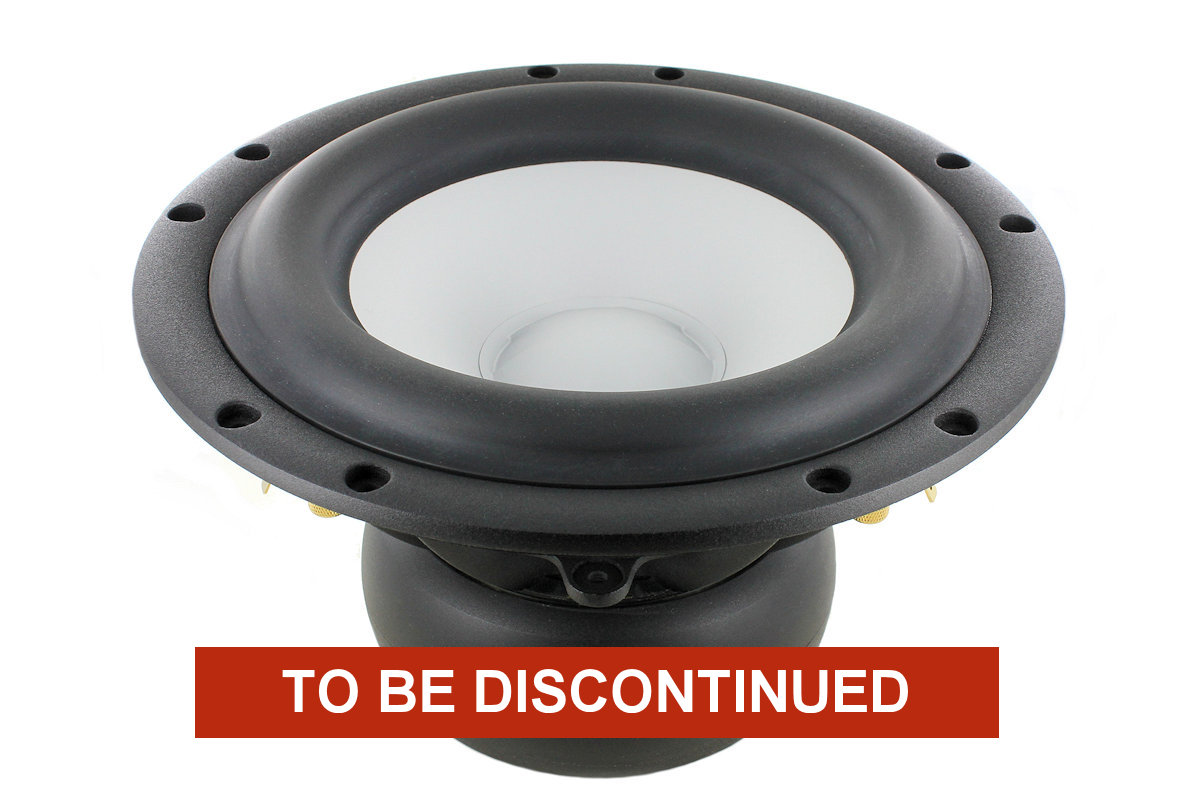

23cm Subwoofer 4ohm, Silver Alu Cone, Ferrite Magnet

Category: Tags: ,

The Revelator woofers and subwoofers features very rigid cones in paper or aluminium that operates as a piston over a wide frequency range, in combination with Scan-Speaks linear suspension and the patented Symmetrical Drive (SD-1) it results in very low distortion and a smooth and well behaved frequency response as well as perfect transient reproduction.




Weight 4.9 kg
Product Families


Product Categories


- Patented Symmetrical Drive Motor Design
- Silver Anodized Rigid Alu Cone
- Long Throw Surround
- Die cast Alu Chassis vented below spider
- Ferrite Magnet System w. Rubber Boot
- Gold Binding Post Terminals

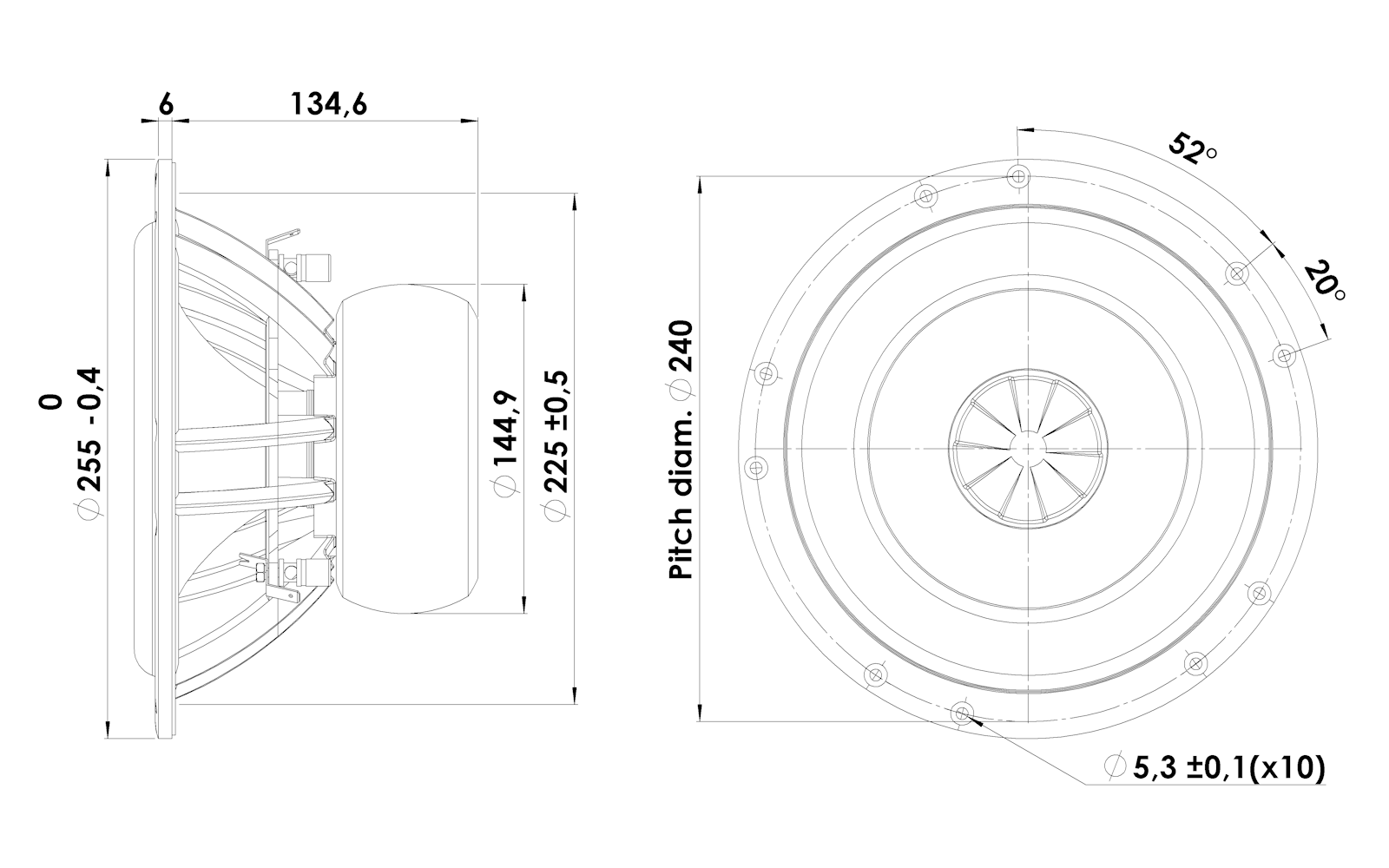

  Size:23 cm
  Fs:21 Hz
  Re:3.5 Ω
  Sensitivity:82 dB
  VAS:45 ltr.
  Sd:232 cm²
  Bl:9.3 Tm
