23W/4557T02

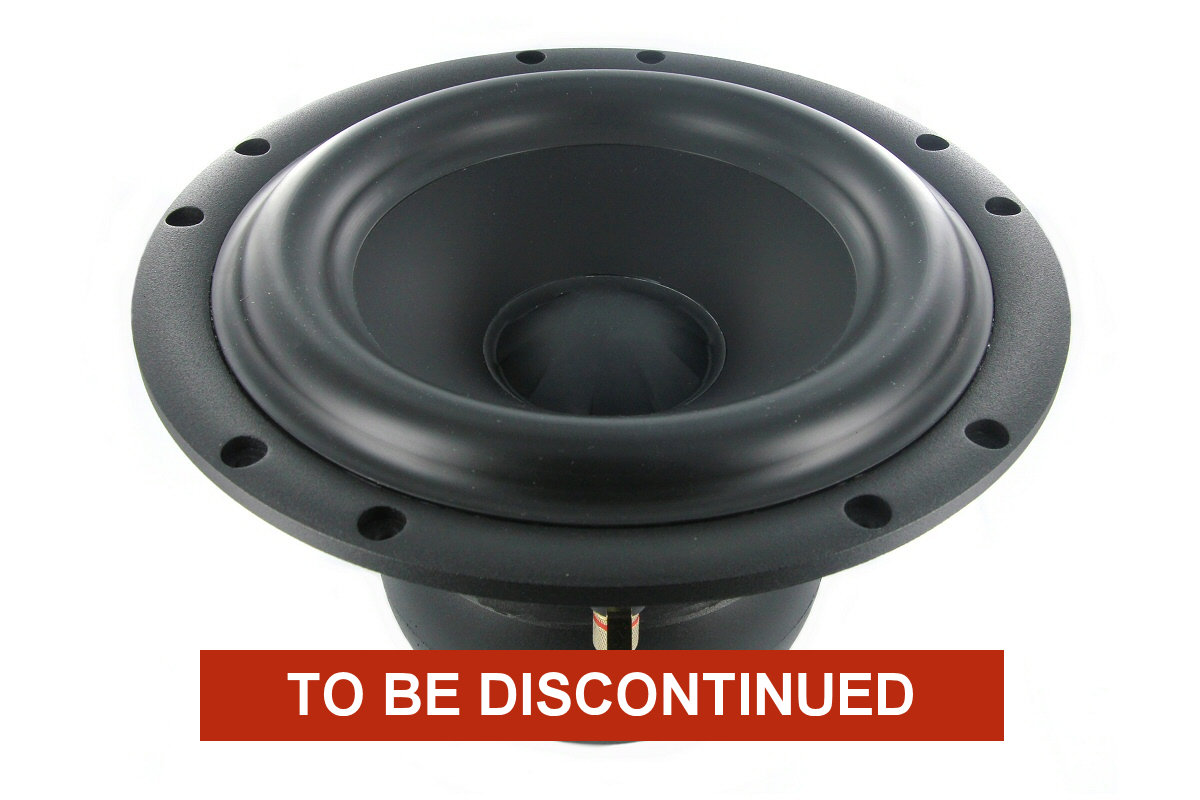

23cm Subwoofer 4ohm, Black Alu Cone, Ferrite Magnet

Category: Tags: ,

The Revelator woofers and subwoofers features very rigid cones in paper or aluminium that operates as a piston over a wide frequency range, in combination with Scan-Speaks linear suspension and the patented Symmetrical Drive (SD-1) it results in very low distortion and a smooth and well behaved frequency response as well as perfect transient reproduction.






Weight 4.9 kg
Product Families

Revelator

Product Categories

Subwoofer


- Patented Symmetrical Drive Motor Design
- Black Anodized Rigid Alu Cone
- Long Throw Surround
- Die cast Alu Chassis vented below spider
- Ferrite Magnet System w. Rubber Boot
- Gold Binding Post Terminals

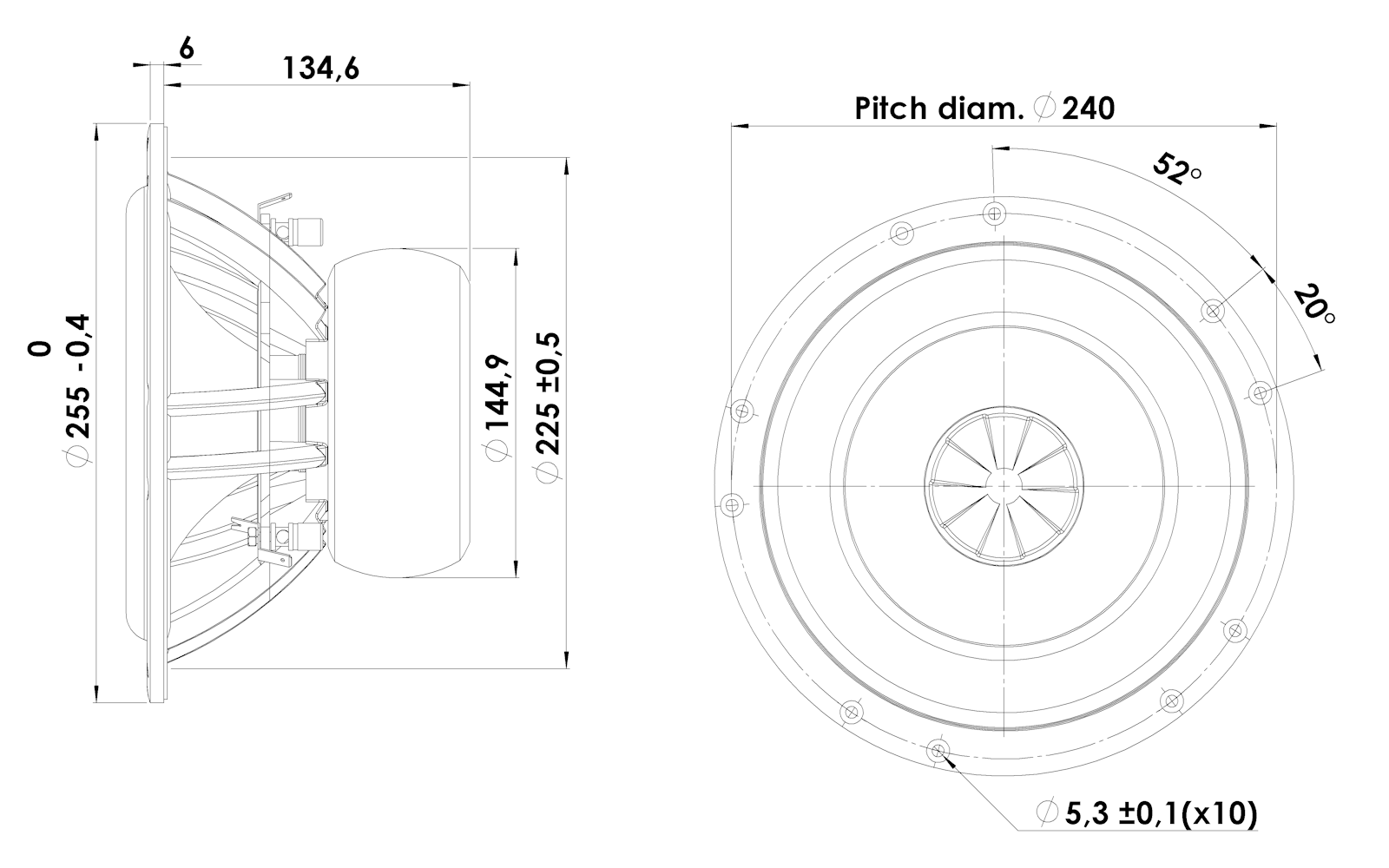

  Size:23 cm
  Fs:21 Hz
  Re:3.5 Ω
  Qt:0.47
  Sensitivity:82 dB
  VAS:45 ltr.
  Sd:232 cm²
  Bl:9.3 Tm
