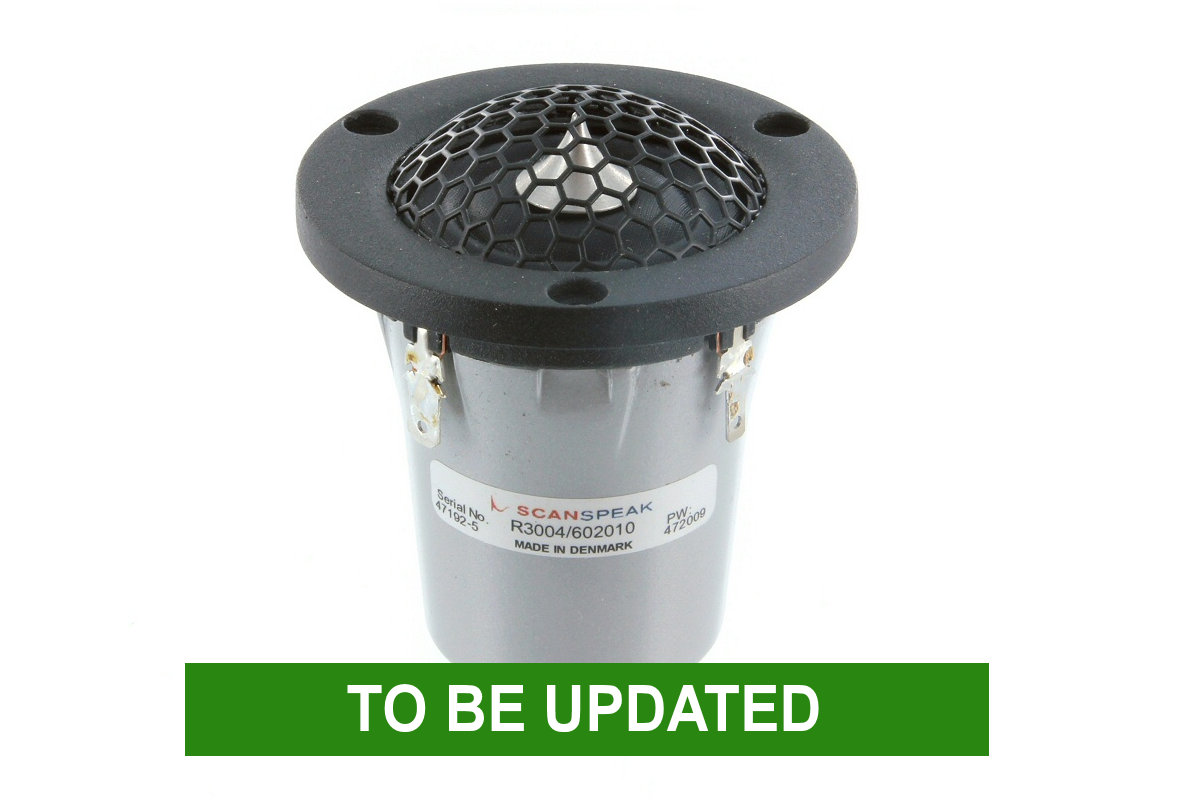

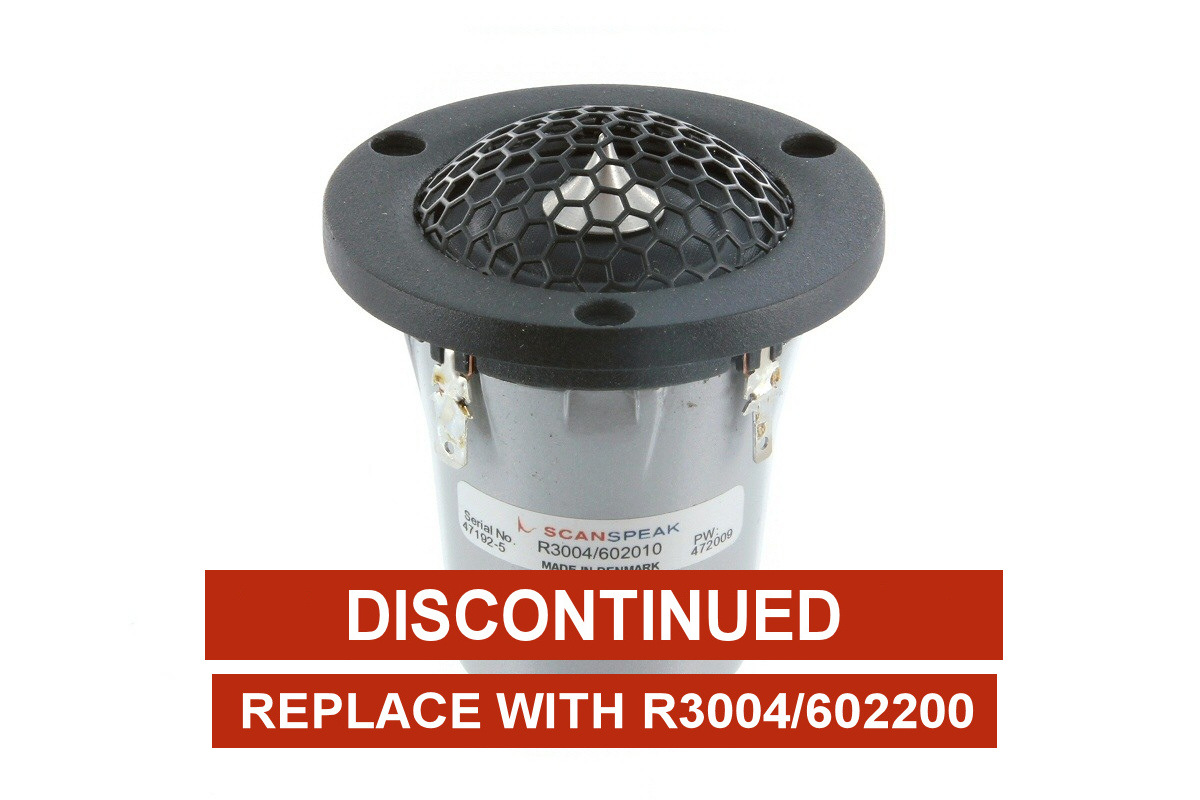

R3004/602010

26mm Ring Radiator 4ohm, Neo, Large Chamber, Grill

Category: Tags: ,

The compact size is one of the key elements of these Illuminator tweeters, which provides a high degree of flexibility within design options. The small size is employed without compromising sound quality where these compact tweeters are fully comparable to the renowned full size Illuminator and Revelator tweeters, no matter if the music is played at high or low listening levels.

DIY Kits:
Discovery 12W (R3004/602010, 12W/8524G00)




Weight 0.4 kg
Product Families

Illuminator

Product Categories

Tweeter


- 1" Ring Dome Diaphragm
- Patented Phase Plug Design
- Patented Symmetrical Drive (SD-2) motor
- Sound Transparant Protective Grill
- Large Non Resonant Alu Rear Chamber
- Die Cast Housing & Face Plate

  Size:2.6 cm
  Fs:420 Hz
  Re:3 Ω
  Qt:0.74
  Sensitivity:87.5 dB
  VAS:0.02 ltr.
  Sd:5.6 cm²
  Bl:1.7 Tm
