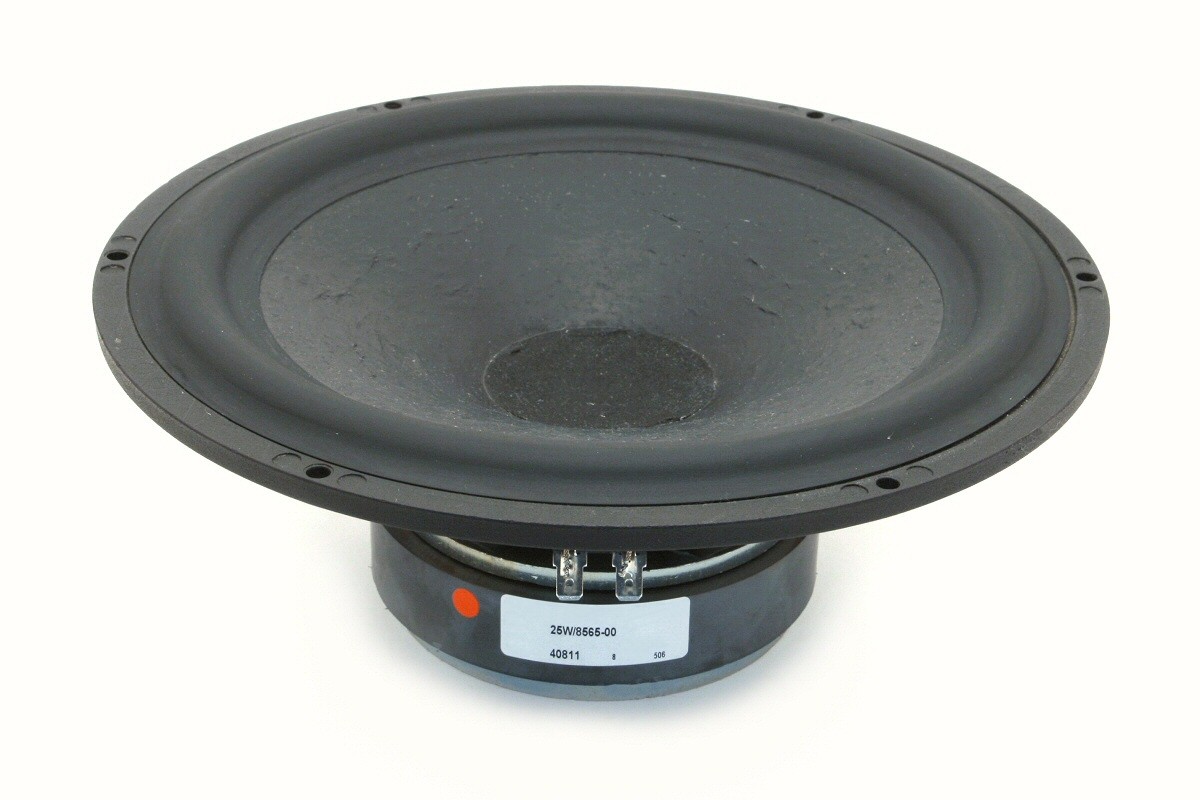

25W/8565-00

26cm Midwoofer 8ohm, Carbonfiber Paper Cone

Category: Tags: ,

The Symmetric Drive (SD-1) concept with copper in the magnet system was invented by Scan-Speak. High-quality magnet system design has thus been a key feature of Scan-Speak design since the companys inception. The Classic woofers are highly praised, and are used in some of the worlds most exceptional high-end Loudspeakers. Some feature Kevlar cones, others have the innovative Carbon fibre/Paper cones.






Weight 2.6 kg
Product Families

Classic

Product Categories

Woofer


- Patented Symmetrical Drive Motor Design
- Low Resonance Freq. 20Hz
- Low-Loss linear suspension
- Air Dried Paper/Carbon Fibre Cone
- Low Damping SBR Rubber Surround
- 42mm Voice Coil

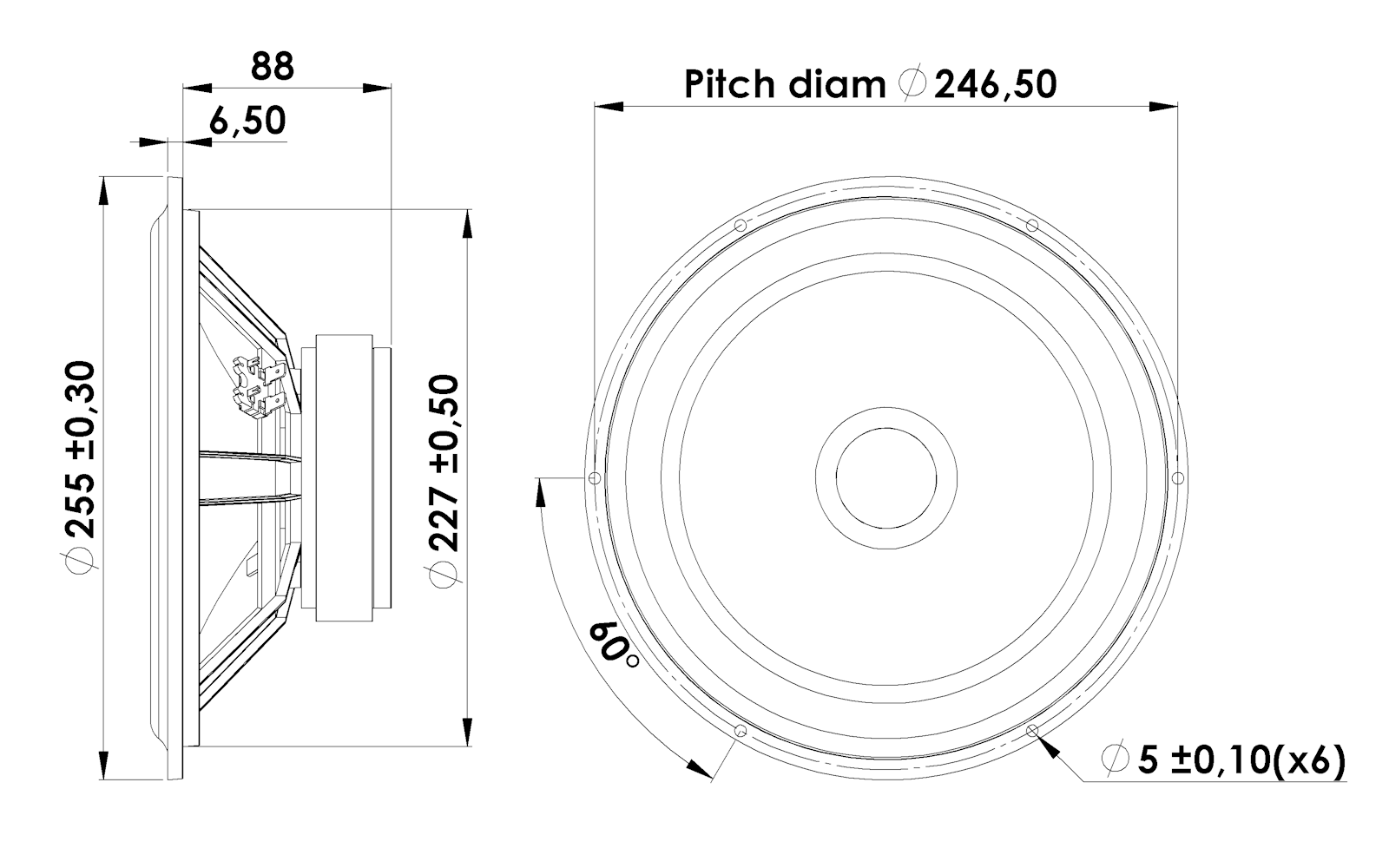

  Size:25 cm
  Fs:20 Hz
  Re:5.5 Ω
  Qt:0.41
  Sensitivity:88 dB
  VAS:225 ltr.
  Sd:330 cm²
  Bl:8.2 Tm
