Classic

The many decades’ heritage, quality and success of Scan-Speak’s designs are found in the Classic family with such patented and proprietary technologies as: Symmetrical Drive, Low Loss Linear Suspension, cones of air dried carbon reinforced paper and nylon reinforced paper. Our latest addition is a new 15 cm midwoofer made with a multilayer material called “Phenomax”.

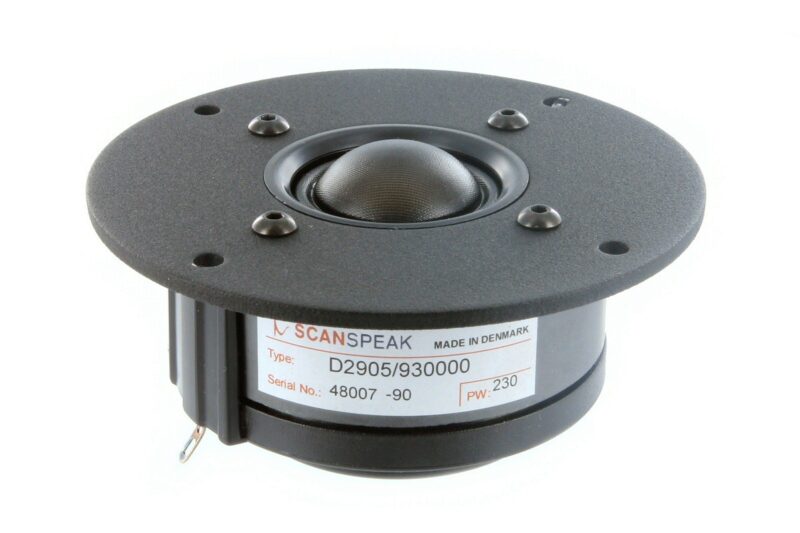

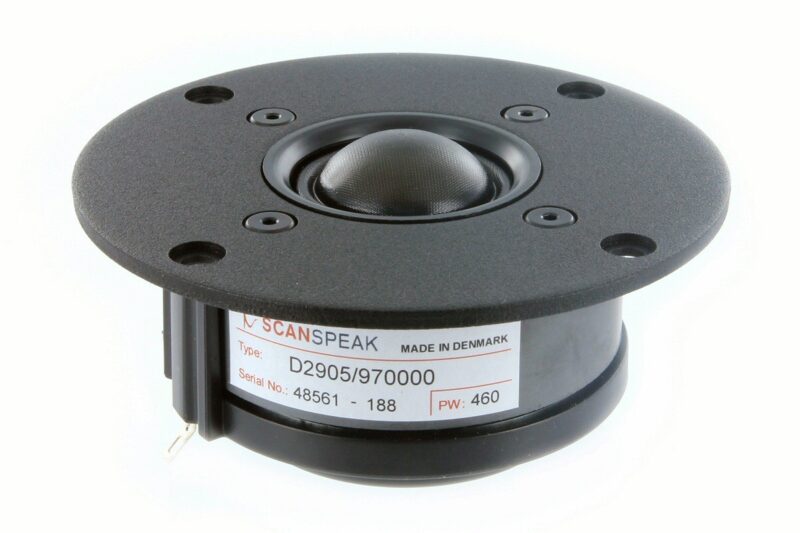

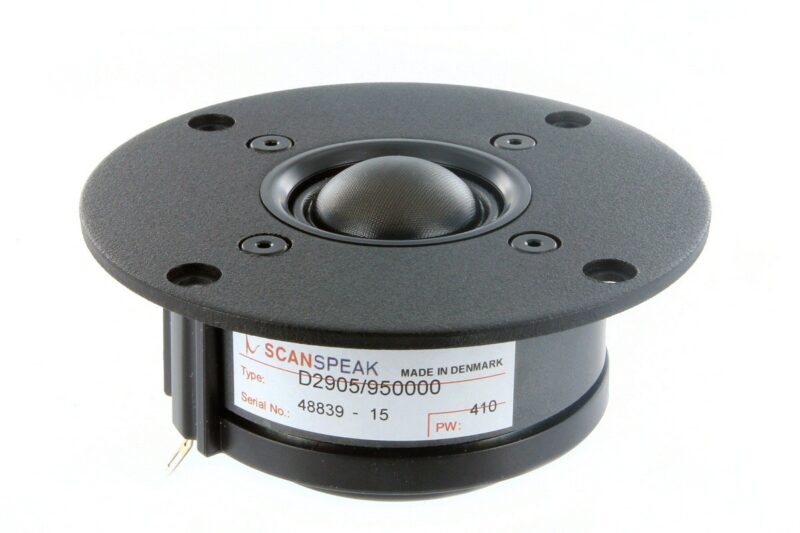

Our Classic tweeters are also the result of careful design and craftsmanship. Our 20 mm Tweeters D2008‘s and D2010’s have provided the excellent treble in many famous loudspeakers since the 1970’s. Our 28mm D2905/ tweeters have evolved over the years from the initial designs into four parts; the 9000, 9300, 9500 and 9700 models all with select and coated textile diaphragms on carefully designed motor and chamber combinations.
The Classic drivers have been the heart of many iconic loudspeaker designs over the years and continue to be so.

Showing 1–12 of 17 results

  • Midwoofer

    15W/8534T00


    - "Phenomax" cone material
    - Symmetrical drive motor system
    - 38 mm voice coil
    - Low loss linear rubber suspension
    - Aluminium chassis



      Size:15 cm
      Fs:32 Hz
      Re:5.8 Ω
      Qt:0.39
      Sensitivity:85.5 dB
      VAS:30 ltr.
      Sd:98.1 cm²
      Bl:5.5 Tm


  • Midwoofer

    18W/8535-01


    - Patented Symmetrical Drive Motor Design
    - Coated Air Dried Paper/Carbon Fibre Cone
    - 38mm Voice Coil
    - Low-Loss linear suspension
    - Low Damping SBR Rubber Surround
    - Aluminium Chassis


      Size:18 cm
      Fs:25 Hz
      Re:5.9 Ω
      Qt:0.38
      Sensitivity:87 dB
      VAS:68.9 ltr.
      Sd:145 cm²
      Bl:5.9 Tm

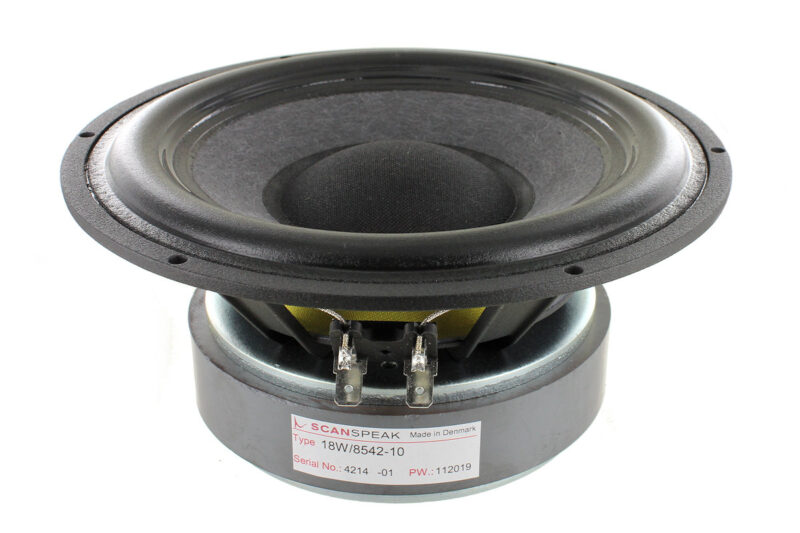

  • Midwoofer

    18W/8542-10


    - Patented Symmetrical Drive Motor Design
    - Air Dried Paper/Nylon Fibre Cone
    - 42mm Voice Coil
    - Low-Loss linear suspension
    - Low Damping Black Coated Foam Surround
    - Die-cast alu. chassis


      Size:18 cm
      Fs:43 Hz
      Re:5.7 Ω
      Qt:0.35
      Sensitivity:88 dB
      VAS:26 ltr.
      Sd:135 cm²
      Bl:6.9 Tm


  • Midwoofer

    18W/8545-01


    - Patented Symmetrical Drive Motor Design
    - Coated Air Dried Paper/Carbon Fibre Cone
    - 42mm Voice Coil w. Alu foil
    - Low-Loss linear suspension
    - Low Damping SBR Rubber Surround
    - Aluminium Chassis


      Size:18 cm
      Fs:25 Hz
      Re:5.7 Ω
      Qt:0.2
      Sensitivity:88 dB
      VAS:68.6 ltr.
      Sd:145 cm²
      Bl:8.4 Tm


  • Midwoofer

    18W/8545K00


    - Patented Symmetrical Drive Motor Design
    - Low-Loss linear suspension
    - Air Dried Paper/Carbon Fibre Cone
    - Low Damping SBR Rubber Surround
    - 42mm Voice Coil w. fiber glass foil



      Size:18 cm
      Fs:28 Hz
      Re:5.5 Ω
      Qt:0.28
      Sensitivity:87.5 dB
      VAS:46.4 ltr.
      Sd:145 cm²
      Bl:8.2 Tm

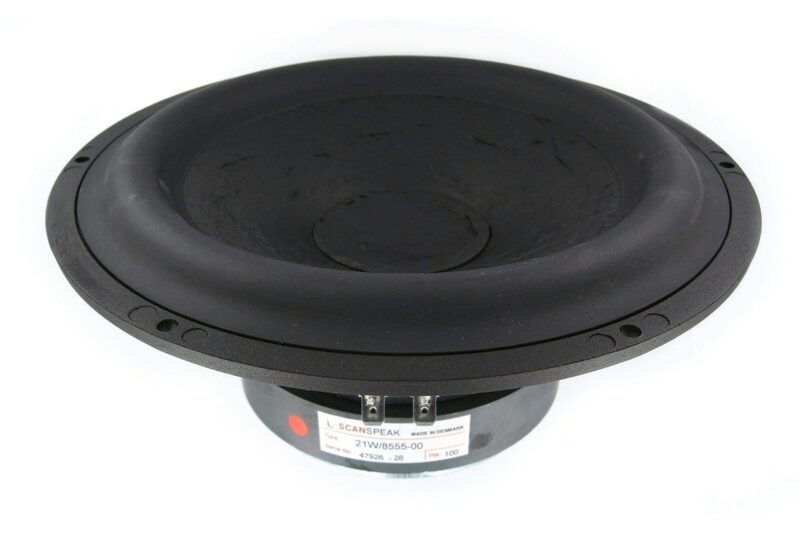

  • Woofer

    21W/8555-10


    - Patented Symmetrical Drive Motor Design SD-1
    - Die Cast Alu. Chassis
    - Low-Loss linear suspension
    - Air Dried Paper/Carbon Fibre Cone
    - Low Damping SBR Rubber Surround
    - 42mm Voice Coil


      Size:21 cm
      Fs:20 Hz
      Re:5.5 Ω
      Qt:0.31
      Sensitivity:87 dB
      VAS:134 ltr.
      Sd:220 cm²
      Bl:8.2 Tm

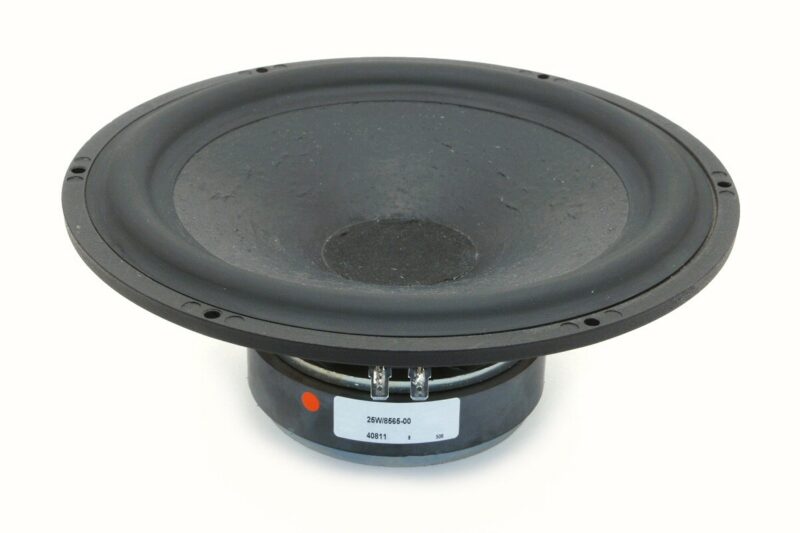

  • Woofer

    25W/8565-00


    - Patented Symmetrical Drive Motor Design
    - Low Resonance Freq. 20Hz
    - Low-Loss linear suspension
    - Air Dried Paper/Carbon Fibre Cone
    - Low Damping SBR Rubber Surround
    - 42mm Voice Coil


      Size:25 cm
      Fs:20 Hz
      Re:5.5 Ω
      Qt:0.41
      Sensitivity:88 dB
      VAS:225 ltr.
      Sd:330 cm²
      Bl:8.2 Tm


  • Tweeter

    D2008/851100


    - 3/4" Textile Dome Diaphragm
    - Wide Dispersion
    - Dual Rear Chamber
    - Vented Pole Piece




      Size:1.9 cm
      Fs:650 Hz
      Re:5.7 Ω
      Qt:0.57
      Sensitivity:89 dB
      VAS:0.01 ltr.
      Sd:3.8 cm²
      Bl:2.4 Tm


  • Tweeter

    D2008/851200


    - 3/4" Textile Dome Diaphragm
    - Wide Dispersion
    - Dual Rear Chamber
    - Ferro Fluid




      Size:1.9 cm
      Fs:800 Hz
      Re:5.7 Ω
      Qt:0.63
      Sensitivity:88 dB
      VAS:0.01 ltr.
      Sd:3.8 cm²
      Bl:2.4 Tm

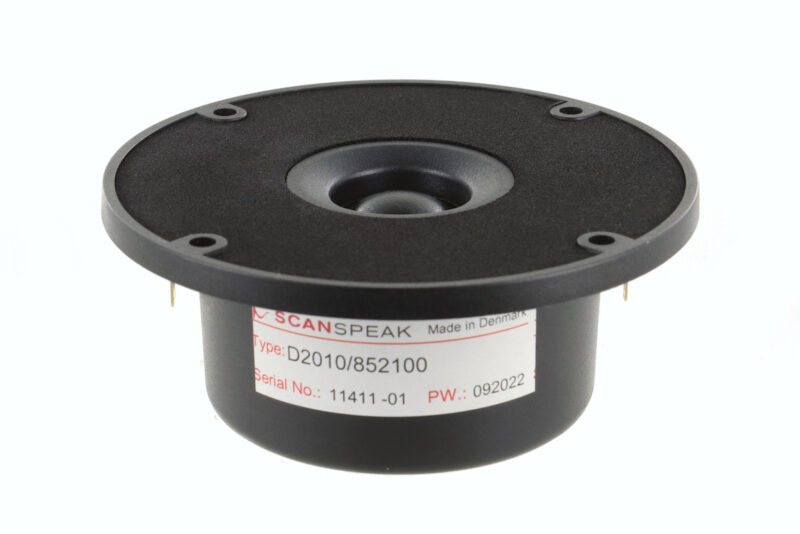

  • Tweeter

    D2010/851100


    - 3/4" Textile Dome Diaphragm
    - Wide Dispersion
    - Diffraction Damping Foam Front
    - Dual Rear Chamber




      Size:1.9 cm
      Fs:650 Hz
      Re:5.7 Ω
      Qt:0.57
      Sensitivity:89 dB
      VAS:0.01 ltr.
      Sd:3.8 cm²
      Bl:2.4 Tm


  • Tweeter

    D2010/851300


    - 3/4" Textile Dome Diaphragm
    - Wide Dispersion
    - Diffraction Damping Foam Front
    - Dual Rear Chamber
    - Ferro Fluid



      Size:1.9 cm
      Fs:800 Hz
      Re:5.7 Ω
      Qt:0.63
      Sensitivity:88 dB
      VAS:0.01 ltr.
      Sd:3.8 cm²
      Bl:2.4 Tm

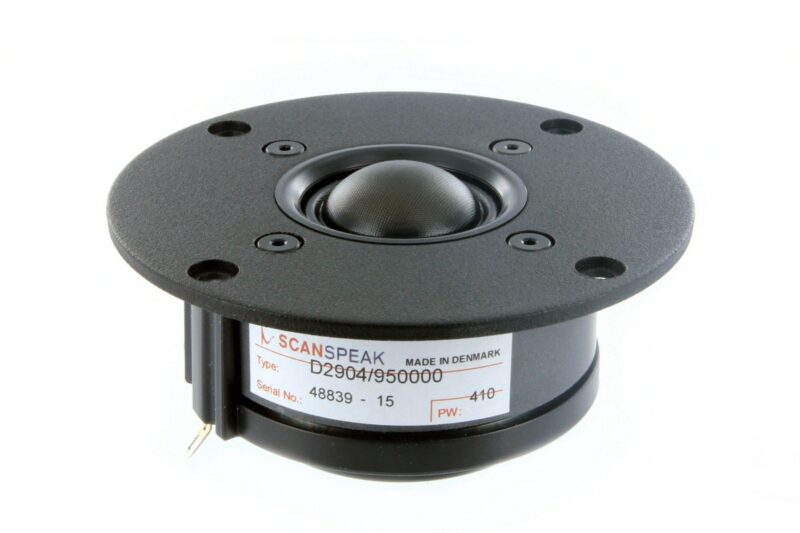

  • Tweeter

    D2904/950000


    - 1" Textile Dome Diaphragm
    - Ferro Fluid
    - Low Resonant Rear Chamber
    - Black Paineted Alu Face Plate
    - 4 ohm



      Size:2.8 cm
      Fs:550 Hz
      Re:3.5 Ω
      Qt:0.39
      Sensitivity:91 dB
      VAS:0.02 ltr.
      Sd:9.5 cm²
      Bl:3.2 Tm
