Discovery

The Discovery family is one of the largest lines in Scan-Speak’s families of drivers. This family was established to make certain that our customers would have access to high quality Danish designed and built drivers at an affordable price. Although affordable, make no mistake that there has been nothing compromised about these drivers’ build quality or sonic performance.
The Discovery family’s line of products offers a very large variety of choice. You can build loudspeaker systems from tiny desktop models to big systems with 12” woofers and even a passive radiator all from this family. The design is based on traditional electroacoustic knowledge and craftsmanship. The cones are made of a glass fibre material coated to achieve proper damping and all cones are shaped with the NRSC (Non Resonant Suspension Coupling) principle that ensures smooth sound pressure frequency response.
In this family, our well-known design, namely the 3” dome midrange D7608, still goes strong in terms of quality and performance despite its many years on the market. The 5F and 10F drivers are noteworthy as they deliver, we believe, unparalleled performance for their size.
To fans of Danish loudspeaker design the Discovery tweeters will be recognized as almost “classic” unto themselves. They include a range of mostly fabric diaphragms in closed or chambered magnet systems and the diaphragms are either traditional domes or ring radiators.

Showing all 8 results

  • Fullrange

    10F/4424G00

    - Very wide Frequency Range
    - High Sensitivity 90dB / 2.83V
    - Coated NRSC Fibre Glass Cone (patent)
    - SBR Rubber Surround
    - Compact Size, Neo magnet, Alu. Chassis
    - Copper Cap on Pole Piece


      Size:10 cm
      Fs:90 Hz
      Re:3.2 Ω
      Qt:0.29
      Sensitivity:90 dB
      VAS:2 ltr.
      Sd:36 cm²
      Bl:3.9 Tm


  • Fullrange

    10F/8414G10

    - Wide Frequency Range
    - Vented Alu. Chassis, SBR Rubber Surround
    - Compact Neo magnet Motor
    - High Sensitivity 86dB/2,83V
    - Copper Cap on Pole Piece
    - Coated NRSC Fibre Glass Cone (patent)


      Size:10 cm
      Fs:100 Hz
      Re:6.3 Ω
      Qt:0.51
      Sensitivity:86 dB
      VAS:1.57 ltr.
      Sd:36.3 cm²
      Bl:4.3 Tm


  • Fullrange

    10F/8424G00

    - Very wide Frequency Range
    - High Sensitivity 87dB / 2,83V
    - Coated NRSC Fibre Glass Cone (patent)
    - SBR Rubber Surround
    - Compact Size, Neo magnet, Alu. Chassis
    - Copper Cap on Pole Piece


      Size:10 cm
      Fs:90 Hz
      Re:5.8 Ω
      Qt:0.37
      Sensitivity:86.5 dB
      VAS:2.1 ltr.
      Sd:36 cm²
      Bl:4.8 Tm


  • Midwoofer

    12W/4524G00

    - Wide Operating Frequency Range
    - Suitable for 2-way or 3-way (as midrange)
    - Coated NRSC Fibre Glass Cone (patent)
    - Low Damping SBR Rubber Surround
    - Die cast Alu Chassis vented below spider



      Size:12 cm
      Fs:50 Hz
      Re:3.1 Ω
      Qt:0.27
      Sensitivity:89 dB
      VAS:8.2 ltr.
      Sd:59 cm²
      Bl:4.4 Tm


  • Midwoofer

    12W/8524G00

    - Wide Operating Frequency Range
    - Suitable for 2-way or 3-way (as midrange)
    - Coated NRSC Fibre Glass Cone (patent)
    - Low Damping SBR Rubber Surround
    - Die cast Alu Chassis vented below spider



      Size:12 cm
      Fs:52 Hz
      Re:5.7 Ω
      Qt:0.32
      Sensitivity:86 dB
      VAS:8.2 ltr.
      Sd:59 cm²
      Bl:5.4 Tm


  • Midrange

    15M/4624G00

    - High Output 92,5dB @ 2,83V
    - Phase Plug for Improved Phase Linearity
    - Coated NRSC Fibre Glass Cone
    - Very Low Damping Foam Surround (Coated)
    - Die cast Alu Chassis vented below spider
    - Magnet System w. Alu Ring


      Size:15 cm
      Fs:100 Hz
      Re:3.2 Ω
      Qt:0.43
      Sensitivity:92.5 dB
      VAS:3.7 ltr.
      Sd:75 cm²
      Bl:5.3 Tm


  • Midwoofer

    15W/4424G00

    - High Output 90,5dB @ 2,83V
    - Excellent Midrange Performance
    - Coated NRSC Fibre Glass Cone
    - Low Damping SBR Rubber Surround
    - Die cast Alu Chassis vented below spider



      Size:15 cm
      Fs:46 Hz
      Re:3.1 Ω
      Qt:0.24
      Sensitivity:90.5 dB
      VAS:13.8 ltr.
      Sd:80 cm²
      Bl:5.2 Tm


  • Midwoofer

    15W/4434G00

    - High Output 90dB @ 2,83V
    - Coated NRSC Fibre Glass Cone
    - Magnet System w. Alu Ring
    - Low Damping SBR Rubber Surround
    - Die cast Alu Chassis vented below spider



      Size:15 cm
      Fs:43 Hz
      Re:3 Ω
      Qt:0.21
      Sensitivity:89.5 dB
      VAS:12.8 ltr.
      Sd:80 cm²
      Bl:5.9 Tm


  • Midwoofer

    15W/8424G00

    - Excellent Midrange Performance
    - Coated NRSC Fibre Glass Cone
    - Low Damping SBR Rubber Surround
    - Die cast Alu Chassis vented below spider




      Size:15 cm
      Fs:46 Hz
      Re:5.5 Ω
      Qt:0.25
      Sensitivity:87.5 dB
      VAS:14.5 ltr.
      Sd:80 cm²
      Bl:6.6 Tm


  • Midwoofer

    15W/8434G00

    - Coated NRSC Fibre Glass Cone
    - Magnet System w. Alu Ring
    - Low Damping SBR Rubber Surround
    - Die cast Alu Chassis vented below spider




      Size:15 cm
      Fs:45 Hz
      Re:5.7 Ω
      Qt:0.25
      Sensitivity:87 dB
      VAS:12.8 ltr.
      Sd:80 cm²
      Bl:7.3 Tm


  • Midwoofer

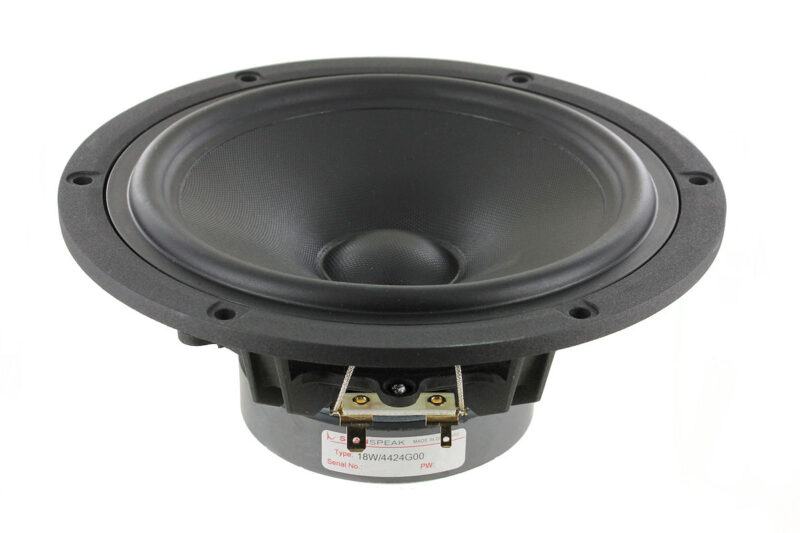

    18W/4424G00

    - High Output 91dB @ 2,83V
    - Excellent Midrange Performance
    - Coated NRSC Fibre Glass Cone
    - Low Damping SBR Rubber Surround
    - Die cast Alu Chassis vented below spider



      Size:18 cm
      Fs:49 Hz
      Re:3.2 Ω
      Qt:0.38
      Sensitivity:91 dB
      VAS:24.1 ltr.
      Sd:137 cm²
      Bl:5.2 Tm


  • Midwoofer

    18W/4434G00

    - High Output 91dB @ 2,83V
    - Coated NRSC Fibre Glass Cone
    - Magnet System w. Alu Ring
    - Low Damping SBR Rubber Surround
    - Die cast Alu Chassis vented below spider



      Size:18 cm
      Fs:47 Hz
      Re:3 Ω
      Qt:0.35
      Sensitivity:91.5 dB
      VAS:20.7 ltr.
      Sd:137 cm²
      Bl:6 Tm


  • Midwoofer

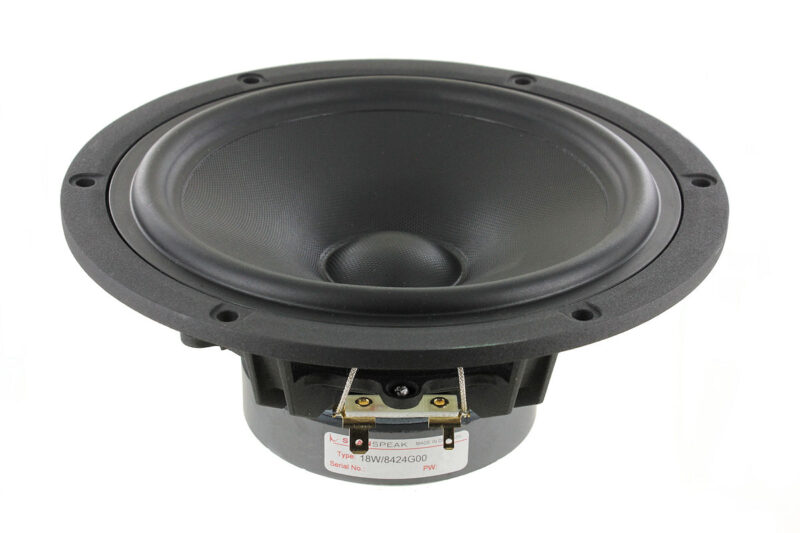

    18W/8424G00

    - High Output 89,5dB @ 2,83V
    - Excellent Midrange Performance
    - Coated NRSC Fibre Glass Cone
    - Low Damping SBR Rubber Surround
    - Die cast Alu Chassis vented below spider



      Size:18 cm
      Fs:54 Hz
      Re:5.7 Ω
      Qt:0.45
      Sensitivity:89.5 dB
      VAS:20.3 ltr.
      Sd:137 cm²
      Bl:6.6 Tm


  • Midwoofer

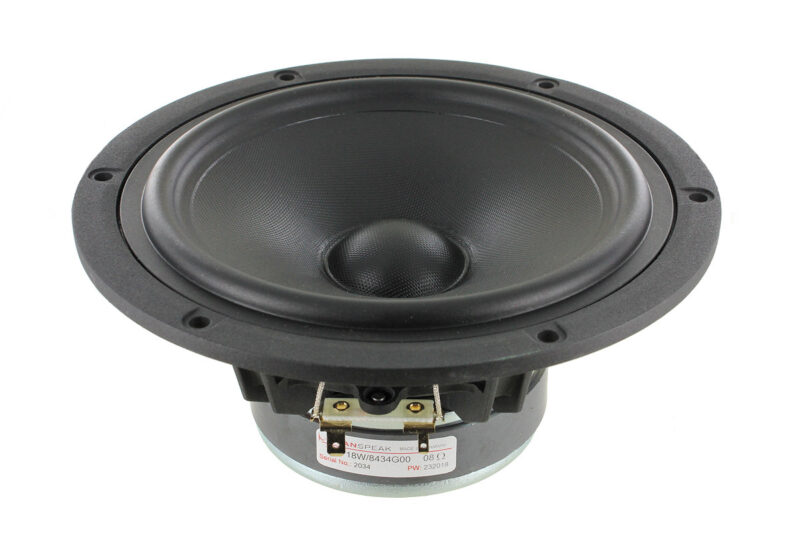

    18W/8434G00

    - High Output 89dB @ 2,83V
    - Coated NRSC Fibre Glass Cone
    - Magnet System w. Alu Ring
    - Low Damping SBR Rubber Surround
    - Die cast Alu Chassis vented below spider



      Size:18 cm
      Fs:50 Hz
      Re:5.6 Ω
      Qt:0.43
      Sensitivity:88.5 dB
      VAS:19.5 ltr.
      Sd:137 cm²
      Bl:7.2 Tm


  • Woofer

    22W/4534G00

    - High Output 92,5dB @ 2,83V
    - Low Resonance Freq. 30Hz
    - Coated NRSC Fibre Glass Cone
    - Magnet System w. Alu Ring
    - Low Damping SBR Rubber Surround
    - Die cast Alu Chassis vented below spider


      Size:22 cm
      Fs:30 Hz
      Re:3 Ω
      Qt:0.34
      Sensitivity:92.5 dB
      VAS:95 ltr.
      Sd:235 cm²
      Bl:6 Tm


  • Woofer

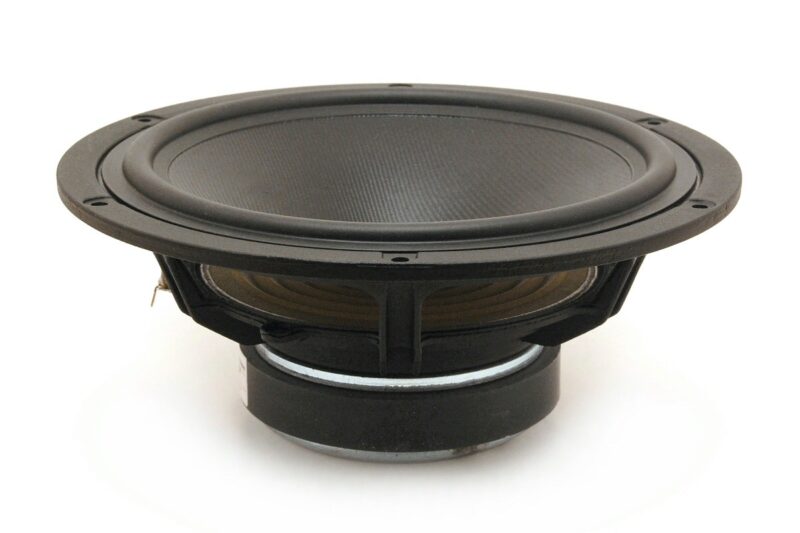

    22W/8534G00

    - High Output 89dB @ 2,83V
    - Low Resonance Freq. 30Hz
    - Coated NRSC Fibre Glass Cone
    - Magnet System w. Alu Ring
    - Low Damping SBR Rubber Surround
    - Die cast Alu Chassis vented below spider


      Size:22 cm
      Fs:30 Hz
      Re:5.9 Ω
      Qt:0.39
      Sensitivity:89 dB
      VAS:94.2 ltr.
      Sd:235 cm²
      Bl:7.8 Tm


  • Passive Radiator

    26W/0-00-00

    - Optimized for 26W/4558T00
    - Adjustable Weight for Optimum Fres
    - Rigid Black Aluminium Cone
    - Coated Sandwich Fibre Glass Dust Cap
    - Die cast Alu Chassis



      Size:26 cm
      Fs:11 Hz
      Re: Ω
      Qt:
      Sensitivity: dB
      VAS:95 ltr.
      Sd:352 cm²
      Bl: Tm


  • Woofer

    26W/4534G00

    - Black Anodized Alu Cone
    - Coated Fibre Glass Dust Cap
    - Magnet System w. Alu Ring
    - Die cast Alu Chassis vented below spider
    - Low Resonance Freq. 23Hz



      Size:26 cm
      Fs:23 Hz
      Re:3.8 Ω
      Qt:0.36
      Sensitivity:90.5 dB
      VAS:156 ltr.
      Sd:350 cm²
      Bl:8.8 Tm


  • Subwoofer

    26W/4558T00

    - 56mm Peak Excursion, 25mm Linear
    - High Output 88dB @ 2,83V
    - Low Resonance Freq. 21Hz
    - Anodized Alu Cone, Fibre Glass Dust Cap
    - Magnet System w. Alu Ring
    - Die cast Alu Chassis vented below spider


      Size:26 cm
      Fs:21 Hz
      Re:2.6 Ω
      Qt:0.31
      Sensitivity:88 dB
      VAS:94.9 ltr.
      Sd:352 cm²
      Bl:10.5 Tm


  • Woofer

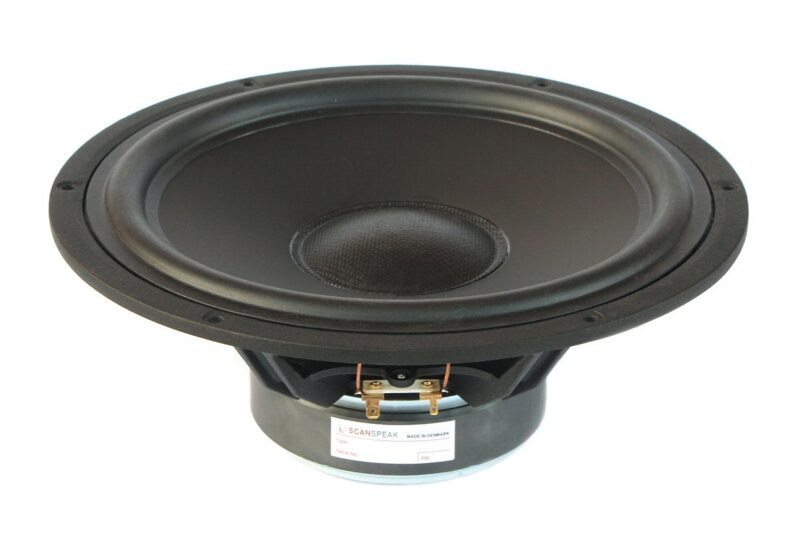

    26W/8534G00

    - Black Anodized Alu Cone
    - Coated Fibre Glass Dust Cap
    - Magnet System w. Alu Ring
    - Die cast Alu Chassis vented below spider
    - Low Resonance Freq. 23Hz



      Size:26 cm
      Fs:23 Hz
      Re:5.7 Ω
      Qt:0.4
      Sensitivity:89 dB
      VAS:150 ltr.
      Sd:350 cm²
      Bl:10.1 Tm


  • Passive Radiator

    30W/0-00-00

    - Optimized for 30W/4558T00
    - Adjustable Weight for Optimum Fres
    - Rigid Black Aluminium Cone
    - Coated Sandwich Fibre Glass Dust Cap
    - Die cast Alu Chassis



      Size:30 cm
      Fs:9.5 Hz
      Re: Ω
      Qt:
      Sensitivity: dB
      VAS:200 ltr.
      Sd:466 cm²
      Bl: Tm


  • Subwoofer

    30W/4558T00

    - 56mm Peak Excursion, 25mm Linear
    - High Output 89dB @ 2,83V
    - Low Resonance Freq. 17Hz
    - Anodized Alu Cone, Fibre Glass Dust Cap
    - Magnet System w. Alu Ring
    - Die cast Alu Chassis vented below spider


      Size:30 cm
      Fs:17 Hz
      Re:2.6 Ω
      Qt:0.32
      Sensitivity:89 dB
      VAS:197 ltr.
      Sd:466 cm²
      Bl:10.5 Tm


  • Fullrange

    5F/8422T01

    - Powerful Neo Ring Motor, Symmetric Drive
    - Large Pole Piece Vent, Low Distortion
    - 1" Voice Coil, Ti Former, European Soft Parts
    - Wide Frequency Range
    - Hard Paper Cone, Foam Surround, Long Excursion
    - Extended Copper Cap on Pole Piece


      Size:5 cm
      Fs:93 Hz
      Re:6 Ω
      Qt:0.61
      Sensitivity:80 dB
      VAS:0.5 ltr.
      Sd:15.2 cm²
      Bl:3.1 Tm


  • Tweeter

    D2604/830000

    - High sensitivity - 92dB
    - Extended Frequency to Above 30KHz
    - Low Resonance Frequency - 630Hz
    - Low Distortion
    - Wide Dispersion
    - Textile Diaphragm, Wide Surround


      Size:2.6 cm
      Fs:630 Hz
      Re:2.8 Ω
      Qt:0.79
      Sensitivity:92 dB
      VAS:0.01 ltr.
      Sd:8 cm²
      Bl:2.2 Tm


  • Tweeter

    D2604/833000

    - High sensitivity - 93dB
    - Extended Frequency to Above 40KHz
    - Low Resonance Frequency - 475Hz
    - Low Distortion
    - Wide Dispersion
    - Textile Diaphragm, wide Surround


      Size:2.6 cm
      Fs:475 Hz
      Re:2.8 Ω
      Qt:0.55
      Sensitivity:93 dB
      VAS:0.02 ltr.
      Sd:8 cm²
      Bl:2.2 Tm


  • Tweeter

    D2606/920000

    - High Performance Tweeter
    - Coated Textile Diaphragm
    - Low Damping Ferrofluid Cooling
    - High Stability
    - Linear response faceplate, Neutral Design
    - Dampened Cavity in Pole Piece


      Size:2.6 cm
      Fs:1100 Hz
      Re:4.6 Ω
      Qt:0.84
      Sensitivity:91.5 dB
      VAS:0.01 ltr.
      Sd:7.1 cm²
      Bl:2.7 Tm


  • Tweeter

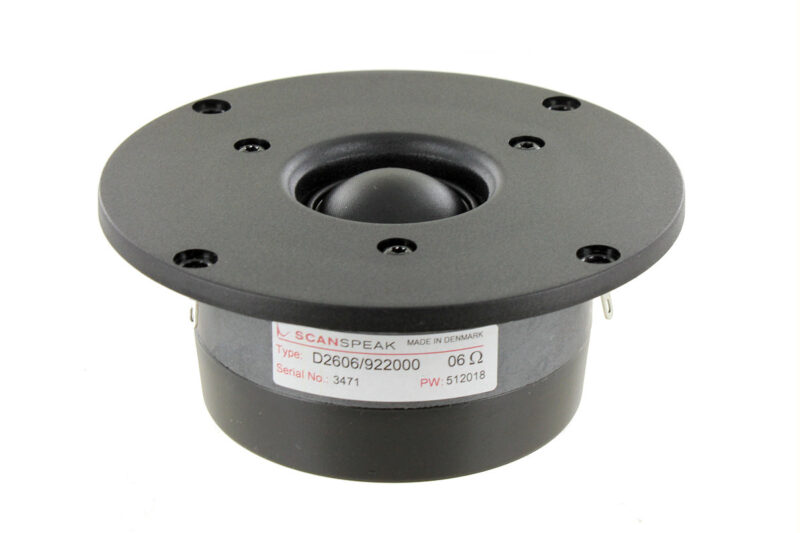

    D2606/922000

    - High Performance 1" Tweeter
    - Low Damping Ferrofluid Cooling for High Stability
    - Coated Textile Diaphragm
    - Double chamber
    - Braided tinsel leads
    - Neutral face plate design


      Size:2.6 cm
      Fs:850 Hz
      Re:4.6 Ω
      Qt:0.57
      Sensitivity:91.5 dB
      VAS:0.01 ltr.
      Sd:7.1 cm²
      Bl:2.8 Tm


  • Tweeter

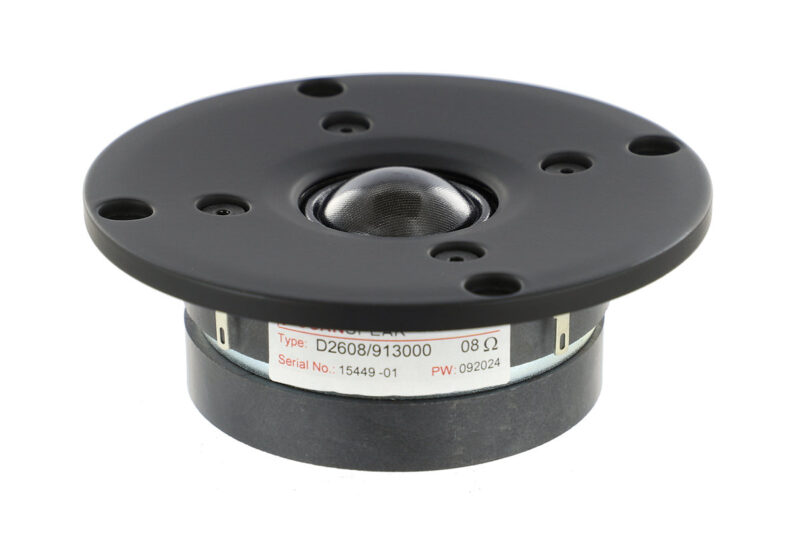

    D2608/913000

    - Very low mass soft dome diaphragm
    - Optimized Magnet System with Double magnets
    - Ferrofluid
    - Fully Vented Motor System for Low compression
    - Low resonance Frequency
    - Black Die-Cast Aluminium Face Plate


      Size:2.6 cm
      Fs:700 Hz
      Re:5.6 Ω
      Qt:0.29
      Sensitivity:91.5 dB
      VAS:0.02 ltr.
      Sd:7 cm²
      Bl:2.6 Tm


  • Midrange

    D7608/920000

    - Fast action due to low moving mass
    - Wide Dispersion
    - High SPL Output 92dB
    - Vented / open rearside
    - Internal Ferrite Magnet
    - Internal grill to prevent dome from being pushed in


      Size:7.6 cm
      Fs:300 Hz
      Re:5.7 Ω
      Qt:1.73
      Sensitivity:92 dB
      VAS:0.36 ltr.
      Sd:55 cm²
      Bl:4.7 Tm


  • Midrange

    D7608/920010

    - Fast action due to low moving mass
    - Wide Dispersion
    - High SPL Output 92dB
    - Vented / open rearside
    - Internal Ferrite Magnet
    - Internal grill to prevent dome from being pushed in


      Size:7.6 cm
      Fs:300 Hz
      Re:5.7 Ω
      Qt:1.73
      Sensitivity:92 dB
      VAS:0.36 ltr.
      Sd:55 cm²
      Bl:4.7 Tm


  • Tweeter

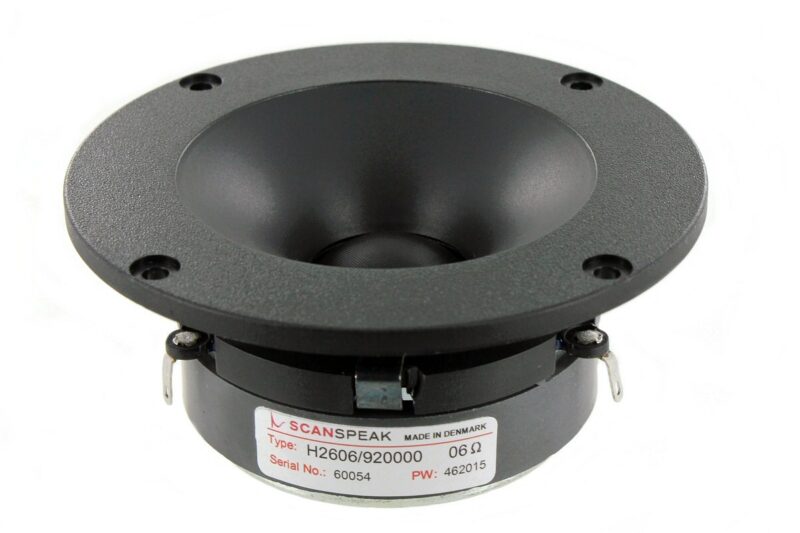

    H2606/920000

    - Horn Loaded High Sensitivity Tweeter
    - High Stability
    - Low Damping Ferrofluid Cooling
    - High Performance Tweeter
    - Coated Textile Diaphragm
    - Dampened Cavity in Pole Piece


      Size:2.5 cm
      Fs:1030 Hz
      Re:4.7 Ω
      Qt:0.7
      Sensitivity:95 dB
      VAS: ltr.
      Sd:5.7 cm²
      Bl:3.3 Tm


  • Tweeter

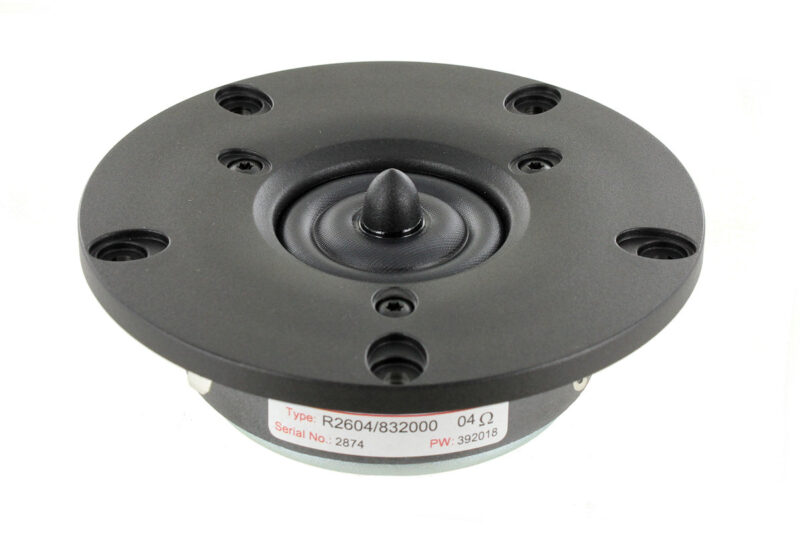

    R2604/832000

    - Extended Frequency To Above 40KHz
    - Very Low Resonance Frequency - 500Hz
    - Low Distortion
    - Dual Ring Radiator diaphragm (Patent)
    - Wave-guide center plug (Patent)
    - Textile Diaphragm


      Size:2.6 cm
      Fs:500 Hz
      Re:2.9 Ω
      Qt:0.44
      Sensitivity:90 dB
      VAS:0.01 ltr.
      Sd:5.4 cm²
      Bl:2.3 Tm


  • Tweeter

    R2604/833000

    - Extended Frequency To Above 40KHz
    - Very Low Resonance Frequency - 450Hz
    - Low Distortion
    - High sensitivity - 92dB
    - Dual Ring Radiator diaphragm (Patent)
    - Wave-guide center plug (Patent)


      Size:2.6 cm
      Fs:440 Hz
      Re:2.9 Ω
      Qt:0.38
      Sensitivity:92 dB
      VAS:0.02 ltr.
      Sd:5.4 cm²
      Bl:2.3 Tm
