Tweeter

Showing all 8 results

  • Tweeter

    D2004/602000


    - 3/4" Textile Dome Diaphragm
    - Large Roll Surround f. Wide Dispersion
    - Patented Symmetrical Drive (SD-2) motor
    - Sound Transparant Protective Grill
    - Non Resonant Alu Rear Chamber
    - Die Cast Housing & Face Plate


      Size:1.9 cm
      Fs:600 Hz
      Re:2.8 Ω
      Qt:1.07
      Sensitivity:88.5 dB
      VAS:0.01 ltr.
      Sd:4.5 cm²
      Bl:1.3 Tm


  • Tweeter

    D2004/602200


    - 3/4" Textile Dome Diaphragm
    - Large Roll Surround f. Wide Dispersion
    - Patented Symmetrical Drive (SD-2) motor
    - Black Anodized mashined Alu Faceplate
    - Gold Plated Terminals



      Size:1.9 cm
      Fs:550 Hz
      Re:2.8 Ω
      Qt:0.95
      Sensitivity:89 dB
      VAS:0.01 ltr.
      Sd:4.5 cm²
      Bl:1.3 Tm


  • Tweeter

    D2008/852100


    - 3/4" Textile Dome Diaphragm
    - Wide Dispersion
    - Dual Rear Chamber
    - Vented Pole Piece
    - Neodynium Magnet



      Size:1.9 cm
      Fs:550 Hz
      Re:5.9 Ω
      Qt:0.49
      Sensitivity:89 dB
      VAS:0.01 ltr.
      Sd:3.8 cm²
      Bl:2.4 Tm


  • Tweeter

    D2010/852100


    - 3/4" Textile Dome Diaphragm
    - Wide Dispersion
    - Diffraction Damping Cell Rubber Front
    - Dual Rear Chamber
    - Vented Pole Piece



      Size:1.9 cm
      Fs:550 Hz
      Re:5.9 Ω
      Qt:0.49
      Sensitivity:89 dB
      VAS:0.01 ltr.
      Sd:3.8 cm²
      Bl:2.4 Tm


  • Tweeter

    D2104/712000


    - Patented Symmetrical Drive (SD-2) motor
    - Neodymium ring magnet system with double vent.
    - High frequency extension beyond 40kHz
    - Coated textile diaphragm w. large roll Surround
    - Back chamber with high consistency felt pads
    - Anodized Machined Alu Face Plate


      Size:1.9 cm
      Fs:500 Hz
      Re:2.8 Ω
      Qt:0.40
      Sensitivity:92 dB
      VAS:0.01 ltr.
      Sd:4.5 cm²
      Bl:2.0 Tm


  • Tweeter

    D2404/552000


    - Elliptic voice coil
    - Low mechanical losses
    - High frequency extension beyond 30 kHz
    - Aircirc optimized magnetsystem
    - Low distortion
    - Flexible optics with replaceable decor ring


      Size:2.4 cm
      Fs:550 Hz
      Re:3.4 Ω
      Qt:0.83
      Sensitivity:91 dB
      VAS:0.01 ltr.
      Sd:4.6 cm²
      Bl:2 Tm


  • Tweeter

    D2604/830000


    - High sensitivity - 92dB
    - Extended Frequency to Above 30KHz
    - Low Resonance Frequency - 630Hz
    - Low Distortion
    - Wide Dispersion
    - Textile Diaphragm, Wide Surround


      Size:2.6 cm
      Fs:630 Hz
      Re:2.8 Ω
      Qt:0.79
      Sensitivity:92 dB
      VAS:0.01 ltr.
      Sd:8 cm²
      Bl:2.2 Tm


  • Tweeter

    D2604/833000


    - High sensitivity - 93dB
    - Extended Frequency to Above 40KHz
    - Low Resonance Frequency - 475Hz
    - Low Distortion
    - Wide Dispersion
    - Textile Diaphragm, wide Surround


      Size:2.6 cm
      Fs:475 Hz
      Re:2.8 Ω
      Qt:0.55
      Sensitivity:93 dB
      VAS:0.02 ltr.
      Sd:8 cm²
      Bl:2.2 Tm


  • Tweeter

    D2606/920000


    - High Performance Tweeter
    - Coated Textile Diaphragm
    - Low Damping Ferrofluid Cooling
    - High Stability
    - Linear response faceplate, Neutral Design
    - Dampened Cavity in Pole Piece


      Size:2.6 cm
      Fs:1100 Hz
      Re:4.6 Ω
      Qt:0.84
      Sensitivity:91.5 dB
      VAS:0.01 ltr.
      Sd:7.1 cm²
      Bl:2.7 Tm


  • Tweeter

    D2606/922000


    - High Performance 1" Tweeter
    - Low Damping Ferrofluid Cooling for High Stability
    - Coated Textile Diaphragm
    - Double chamber
    - Braided tinsel leads
    - Neutral face plate design


      Size:2.6 cm
      Fs:850 Hz
      Re:4.6 Ω
      Qt:0.57
      Sensitivity:91.5 dB
      VAS:0.01 ltr.
      Sd:7.1 cm²
      Bl:2.8 Tm


  • Tweeter

    D2608/913000


    - Very low mass soft dome diaphragm
    - Optimized Magnet System with Double magnets
    - Ferrofluid
    - Fully Vented Motor System for Low compression
    - Low resonance Frequency
    - Black Die-Cast Aluminium Face Plate


      Size:2.6 cm
      Fs:700 Hz
      Re:5.6 Ω
      Qt:0.29
      Sensitivity:91.5 dB
      VAS:0.02 ltr.
      Sd:7 cm²
      Bl:2.6 Tm


  • Tweeter

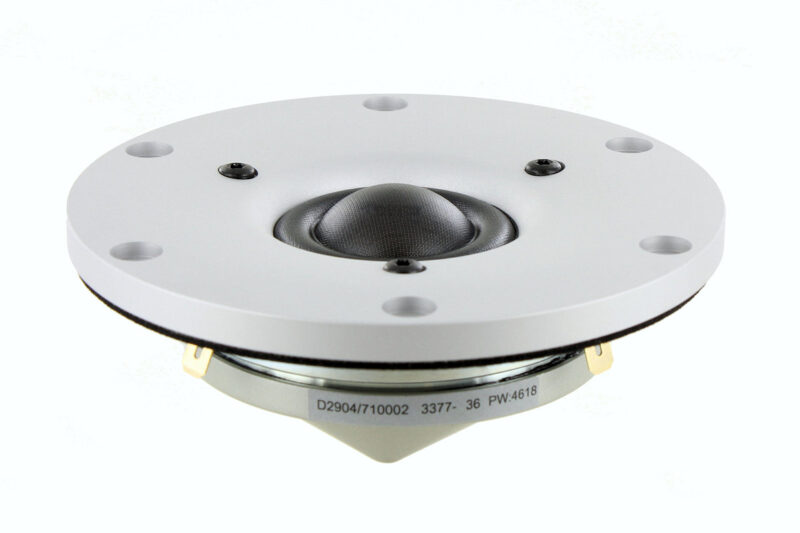

    D2904/710002


    - 1" Coated Textile Diaphragm
    - Large Roll Surround f. Wide Dispersion
    - Patented Symmetrical Drive (SD-2) motor
    - Large Ring Neo Magnet f. High Output
    - Non Resonant Alu Rear Chamber
    - Silver Anodized Machined Alu Face Plate


      Size:2.6 cm
      Fs:520 Hz
      Re:3 Ω
      Qt:0.44
      Sensitivity:94.5 dB
      VAS:0.02 ltr.
      Sd:7 cm²
      Bl:2.8 Tm


  • Tweeter

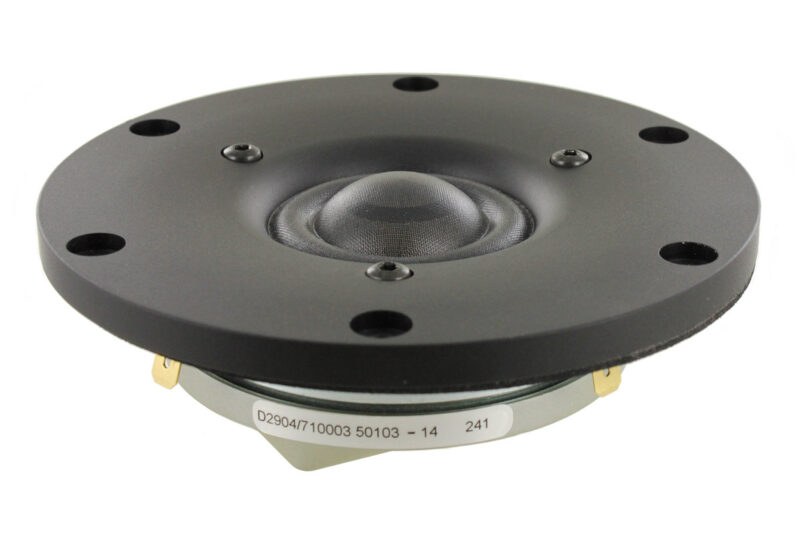

    D2904/710003


    - 1" Coated Textile Diaphragm
    - Large Roll Surround f. Wide Dispersion
    - Patented Symmetrical Drive (SD-2) motor
    - Large Ring Neo Magnet f. High Output
    - Non Resonant Alu Rear Chamber
    - Black Anodized Machined Alu Face Plate


      Size:2.6 cm
      Fs:520 Hz
      Re:3 Ω
      Qt:0.44
      Sensitivity:94.5 dB
      VAS:0.02 ltr.
      Sd:7 cm²
      Bl:2.8 Tm


  • Tweeter

    D2904/950000


    - 1" Textile Dome Diaphragm
    - Ferro Fluid
    - Low Resonant Rear Chamber
    - Black Paineted Alu Face Plate
    - 4 ohm



      Size:2.8 cm
      Fs:550 Hz
      Re:3.5 Ω
      Qt:0.39
      Sensitivity:91 dB
      VAS:0.02 ltr.
      Sd:9.5 cm²
      Bl:3.2 Tm


  • Tweeter

    D2904/980000


    - 1" Aluminium Dome Diaphragm
    - Wave Guide
    - Patented Symmetrical Drive (SD) motor
    - Low Resonance Rear Chamber
    - Black Painted Alu Face Plate



      Size:2.8 cm
      Fs:500 Hz
      Re:3.5 Ω
      Qt:0.66
      Sensitivity:88 dB
      VAS:0.02 ltr.
      Sd:8.5 cm²
      Bl:2.8 Tm


  • Tweeter

    D2905/930000


    - 1" Textile Dome Diaphragm
    - Ferro Fluid
    - Low Resonance Rear Chamber
    - Black Painted Alu Face Plate




      Size:2.8 cm
      Fs:650 Hz
      Re:4.7 Ω
      Qt:0.41
      Sensitivity:90 dB
      VAS:0.01 ltr.
      Sd:8.5 cm²
      Bl:3.5 Tm


  • Tweeter

    D2905/950000


    - 1" Textile Dome Diaphragm
    - Ferro Fluid
    - Low Resonance Rear Chamber
    - Black Painted Alu Face Plate




      Size:2.8 cm
      Fs:550 Hz
      Re:4.7 Ω
      Qt:0.38
      Sensitivity:90 dB
      VAS:0.02 ltr.
      Sd:8.5 cm²
      Bl:3.5 Tm


  • Tweeter

    D2905/970000


    - 1" Textile Dome Diaphragm
    - Frequency Extension to above 30KHz
    - Patented Symmetrical Drive (SD-2) motor
    - Low Resonance Rear Chamber
    - Black Painted Alu Face Plate



      Size:2.8 cm
      Fs:500 Hz
      Re:4.7 Ω
      Qt:0.47
      Sensitivity:89.5 dB
      VAS:0.02 ltr.
      Sd:8.5 cm²
      Bl:3.5 Tm


  • Tweeter

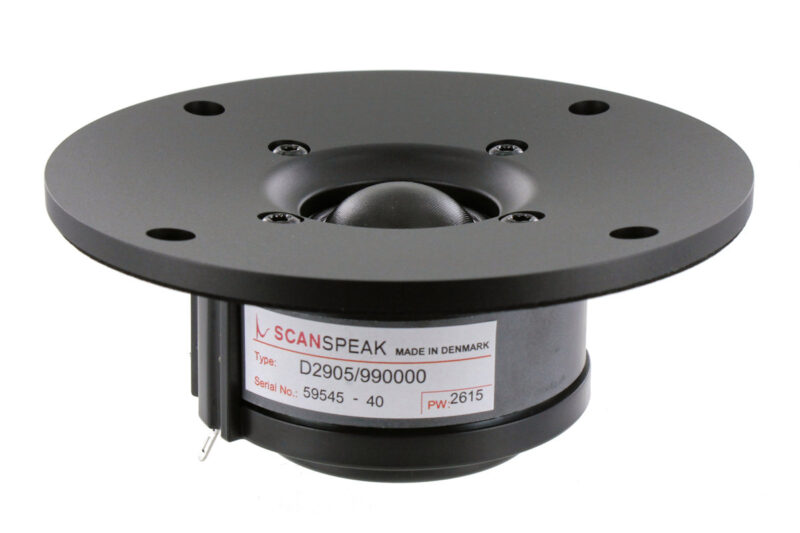

    D2905/990000


    - Excellent Sound Reproduction
    - 1" Textile Dome Diaphragm
    - Patented Symmetrical Drive (SD-2) motor
    - Wide Surround Textile Diaphragm
    - Large Wave Guide Front
    - Black Anodized Mashined Alu Face Plate


      Size:2.8 cm
      Fs:500 Hz
      Re:4.7 Ω
      Qt:0.63
      Sensitivity:91 dB
      VAS:0.02 ltr.
      Sd:8.5 cm²
      Bl:3.5 Tm

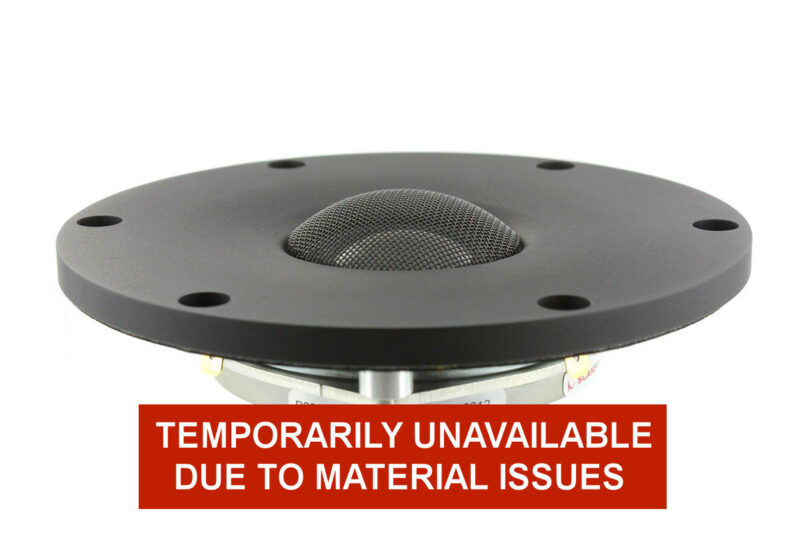

  • Tweeter

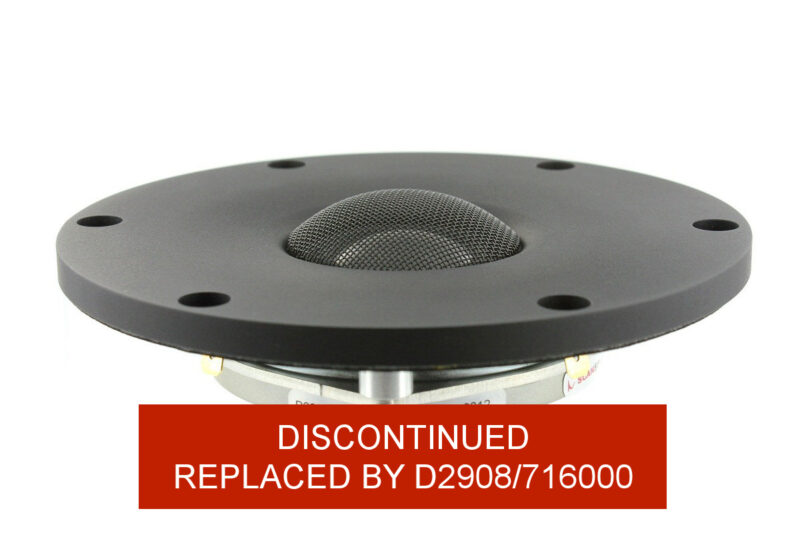

    D2908/714000


    - Beryllium Diaphragm (99% Pure Be)
    - Rear Mount Magnet System
    - Patented Symmetrical Drive (SD-2) motor
    - Titanium Voice Coil Former
    - Black Anodized ø120mm Machined Alu Faceplate
    - Non Resonant Aluminium Rear Chamber


      Size:2.6 cm
      Fs:534 Hz
      Re:5.7 Ω
      Qt:0.47
      Sensitivity:92 dB
      VAS:0.02 ltr.
      Sd:7 cm²
      Bl:3.6 Tm


  • Tweeter

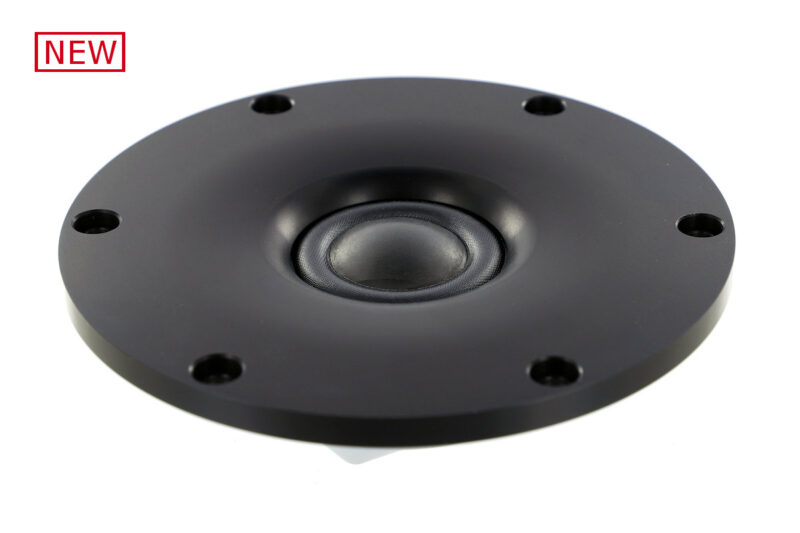

    D2908/716000


    - Bespoke tailored Thin-Ply Carbon Diaphragm (TPCD)
    - Rear Mount Magnet System
    - Patented Symmetrical Drive (SD-2) motor
    - Titanium Voice Coil Former
    - Black Anodized 120mm Machined Alu Faceplate
    - Non Resonant Aluminium Rear Chamber


      Size:2.6 cm
      Fs:534 Hz
      Re:5.7 Ω
      Qt:0.47
      Sensitivity:92 dB
      VAS:0.02 ltr.
      Sd:7 cm²
      Bl:3.6 Tm


  • Tweeter

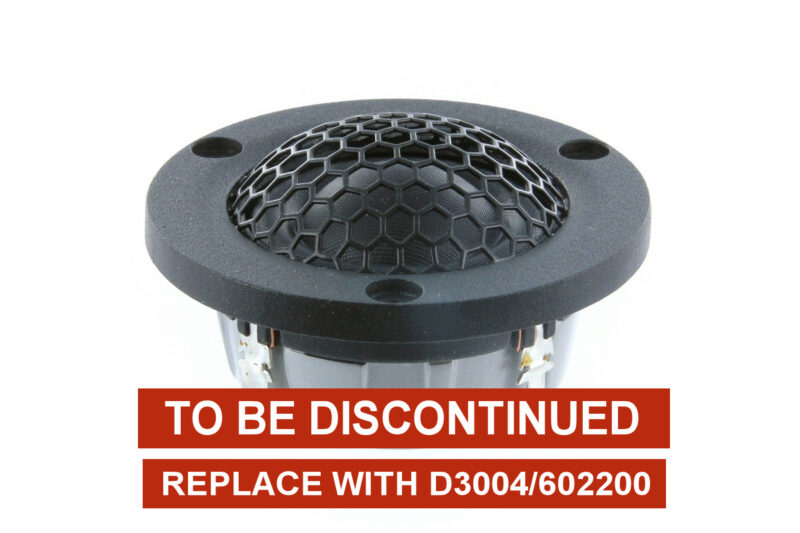

    D3004/602000


    - 1" Textile Dome Diamphragm
    - Large Roll Surround f. Wide Dispersion
    - Patented Symmetrical Drive (SD-2) motor
    - Sound Transparant Protective Grill
    - Non Resonant Alu Rear Chamber
    - Die Cast Housing & Face Plate


      Size:2.6 cm
      Fs:700 Hz
      Re:3 Ω
      Qt:1.15
      Sensitivity:89 dB
      VAS:0.01 ltr.
      Sd:7 cm²
      Bl:1.7 Tm


  • Automotive

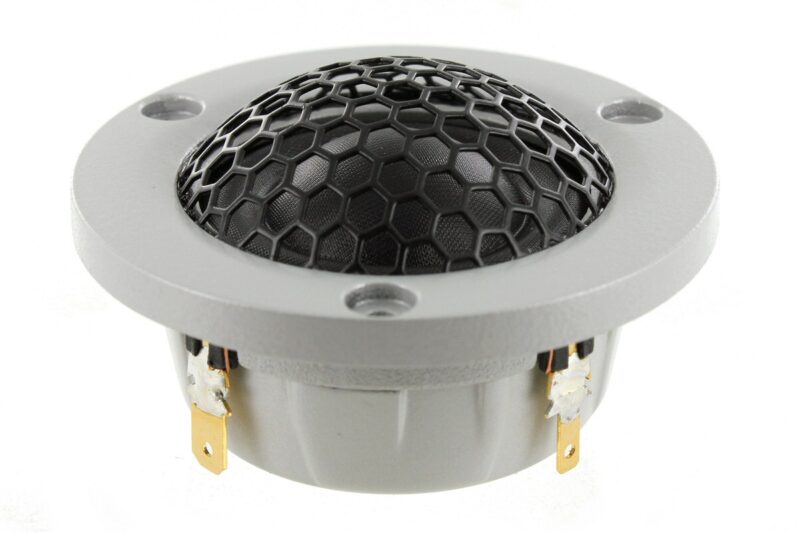

    D3004/602006


    - 1" Textile Dome Diamphragm
    - Patented Symmetrical Drive (SD-2) motor
    - Patented Symmetrical Drive (SD-2) motor
    - Large Roll Surround f. Wide Dispersion
    - Sound Transparant Protective Grill
    - Die Cast Housing & Face Plate


      Size:2.6 cm
      Fs:700 Hz
      Re:3 Ω
      Qt:1.15
      Sensitivity:89 dB
      VAS:0.01 ltr.
      Sd:7 cm²
      Bl:1.7 Tm


  • Tweeter

    D3004/602010


    - 1" Textile Dome Diamphragm
    - Large Roll Surround f. Wide Dispersion
    - Patented Symmetrical Drive (SD-2) motor
    - Sound Transparant Protective Grill
    - Large Non Resonant Alu Rear Chamber
    - Die Cast Housing & Face Plate


      Size:2.6 cm
      Fs:425 Hz
      Re:3 Ω
      Qt:0.7
      Sensitivity:89.5 dB
      VAS:0.03 ltr.
      Sd:7 cm²
      Bl:1.7 Tm

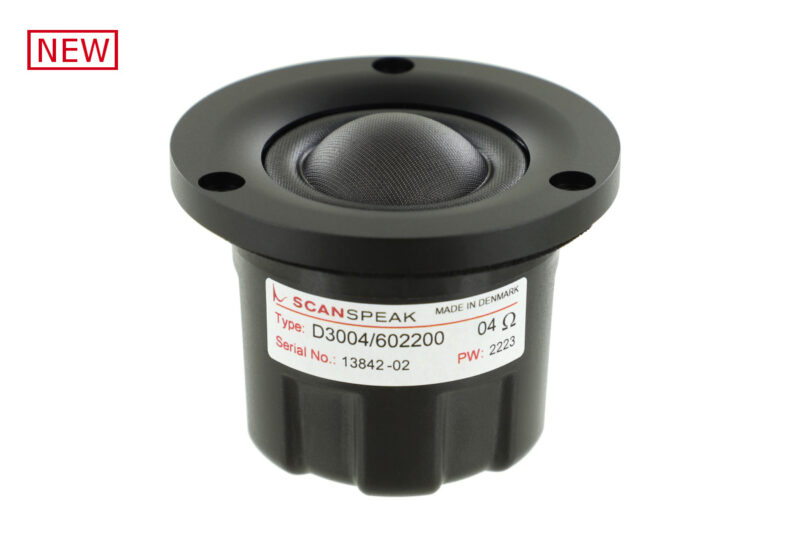

  • Tweeter

    D3004/602200


    - 1" Textile Dome Tweeter
    - Large roll surround f. wide dispersion
    - Patented Symmetrical Drive (SD-2) motor
    - Black Anodized machined Faceplate
    - Gold plated terminals



      Size:2.6 cm
      Fs:440 Hz
      Re:3 Ω
      Qt:0.42
      Sensitivity:90.5 dB
      VAS:0.03 ltr.
      Sd:7 cm²
      Bl:2.3 Tm


  • Tweeter

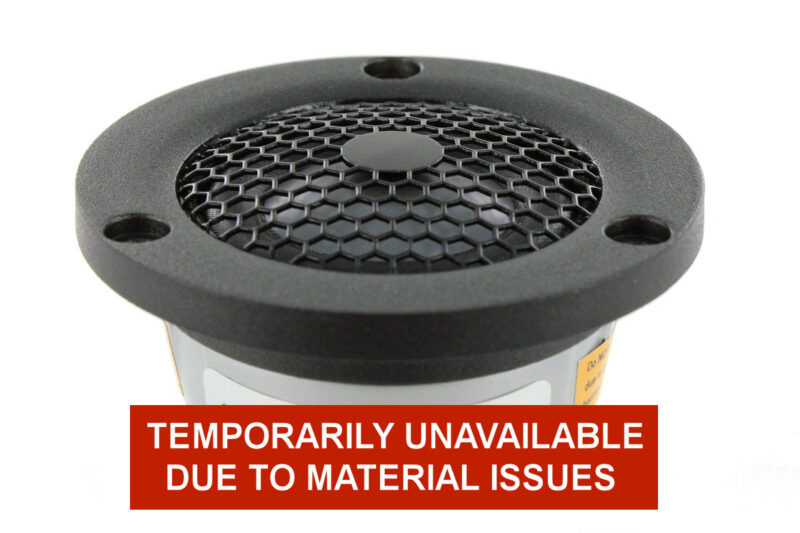

    D3004/604000


    - 1" Beryllium Diaphragm (99% pure Be)
    - Large Roll Surround f. wide dispersion
    - Patented Symmetrical Drive (SD-2) motor
    - Compact Non Resonant Alu Rear Champer
    - Die Cast Housing & Face Plate
    - Sound Transparant Protective Grill


      Size:2.6 cm
      Fs:750 Hz
      Re:2.9 Ω
      Qt:1.41
      Sensitivity:90.5 dB
      VAS:0.01 ltr.
      Sd:7 cm²
      Bl:1.2 Tm

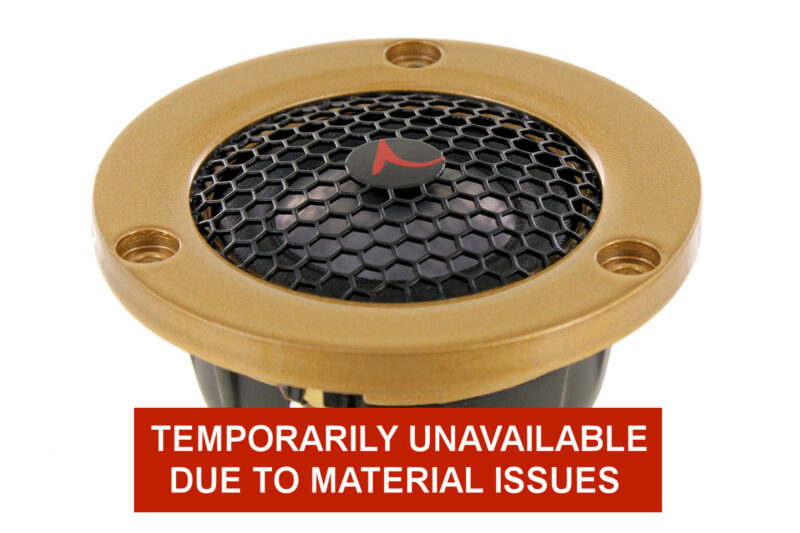

  • Automotive

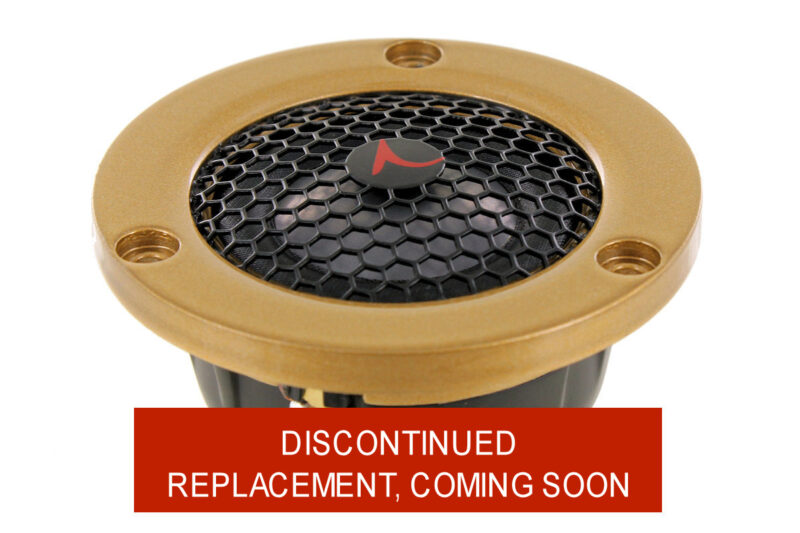

    D3004/604005


    - 1" Beryllium Diaphragm (99% pure Be)
    - High Power Patented SD-2 magnet system
    - Die Cast Housing & Face Plate
    - Large Roll Surround f. wide dispersion
    - Compact Non Resonant Alu Rear Champer
    - Sound Transparant Protective Grill


      Size:2.6 cm
      Fs:715 Hz
      Re:2.9 Ω
      Qt:0.69
      Sensitivity:92 dB
      VAS:0.01 ltr.
      Sd:7 cm²
      Bl:2.4 Tm

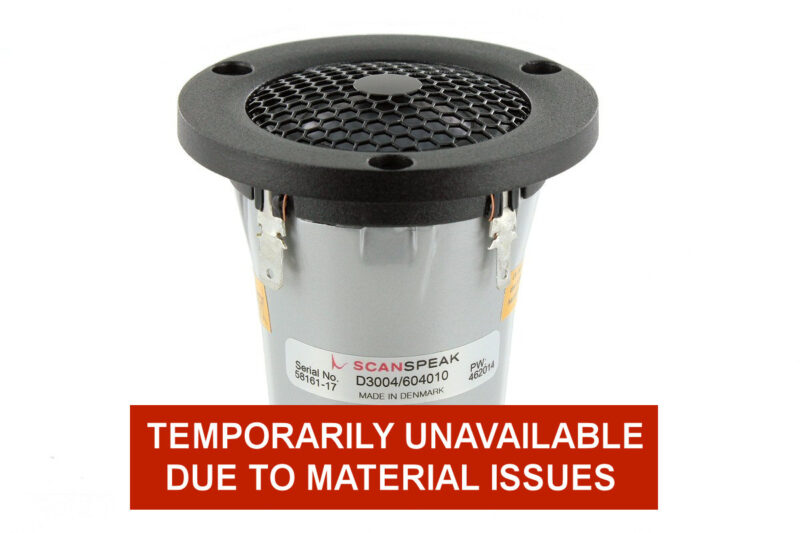

  • Tweeter

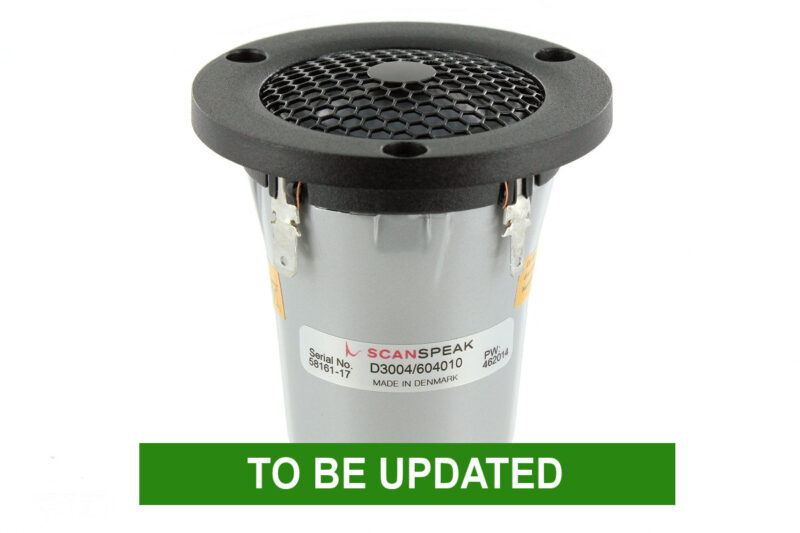

    D3004/604010


    - 1" Beryllium diaphragm (99% pure BE)
    - Patented symetrical drive (SD-2) motor
    - Large non resonant aluminium enclosure
    - Large roll surround f. wide dispersion
    - Sound transparant protective grill
    - Applicable for HiFi and automotive


      Size:2.6 cm
      Fs:450 Hz
      Re:3 Ω
      Qt:0.7
      Sensitivity:90.5 dB
      VAS:0.03 ltr.
      Sd:7 cm²
      Bl:1.7 Tm

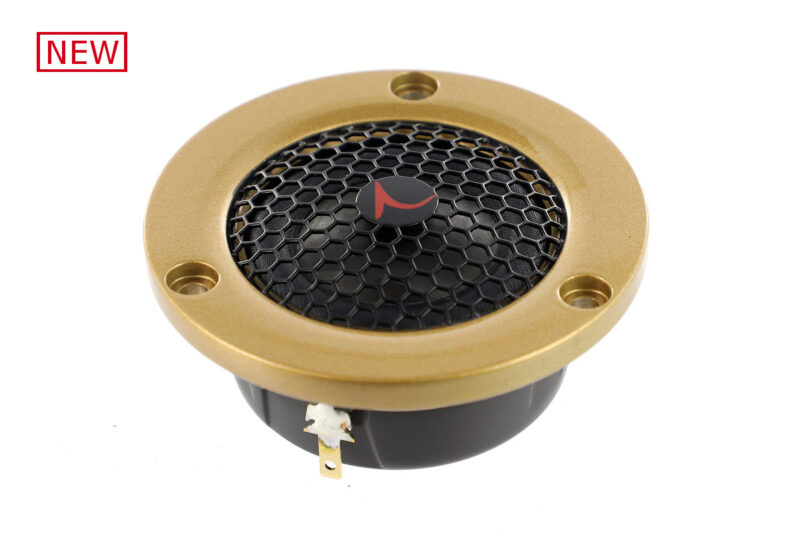

  • Automotive

    D3004/606005


    - Bespoke manufactured Thin Ply Carbon Fiber diaphragm
    - Large Roll Surround f. wide dispersion
    - High Power Patented SD-2 magnet system
    - Compact non-Resonant Alu Rear Chamber
    - Die Cast housing & Face Plate
    - Sound Transparent Protective Grill


      Size:2.6 cm
      Fs:700 Hz
      Re:2.9 Ω
      Qt:0.54
      Sensitivity:91 dB
      VAS:0.01 ltr.
      Sd:7 cm²
      Bl:2.4 Tm


  • Tweeter

    D3004/606200


    - 1" TPCD Tweeter
    - Bespoke tailored Thin-ply Carbon Diaphragm
    - Large roll surround f. wide dispersion
    - Patented Symmetrical Drive (SD-2) motor
    - Black Anodized mashined Faceplate
    - Gold Plated Terminals


      Size:2.6 cm
      Fs:430 Hz
      Re:3 Ω
      Qt:0.38
      Sensitivity:91 dB
      VAS:0.03 ltr.
      Sd:7 cm²
      Bl:2.4 Tm


  • Tweeter

    D3004/660000


    - 1" Textile Dome Diaphragm
    - Large Roll Surround f. Wide Dispersion
    - Patented Symmetrical Drive (SD-2) motor
    - AirCirc Motor Design w. 6 Neo magnets
    - Die Cast Rubber Painted Alu Face Plate



      Size:2.6 cm
      Fs:470 Hz
      Re:3 Ω
      Qt:0.49
      Sensitivity:91.5 dB
      VAS:0.02 ltr.
      Sd:6.9 cm²
      Bl:2.3 Tm


  • Tweeter

    D3004/662000


    - 1" Textile Dome Diaphragm
    - Large Roll Surround f. Wide Dispersion
    - Patented Symmetrical Drive (SD-2) motor
    - AirCirc Motor Design w. 6 Neo magnets
    - Diffraction Damping Rubber Front
    - Die Cast Rubber Painted Alu Face Plate


      Size:2.6 cm
      Fs:500 Hz
      Re:3 Ω
      Qt:0.54
      Sensitivity:91.5 dB
      VAS:0.02 ltr.
      Sd:7 cm²
      Bl:2.3 Tm


  • Tweeter

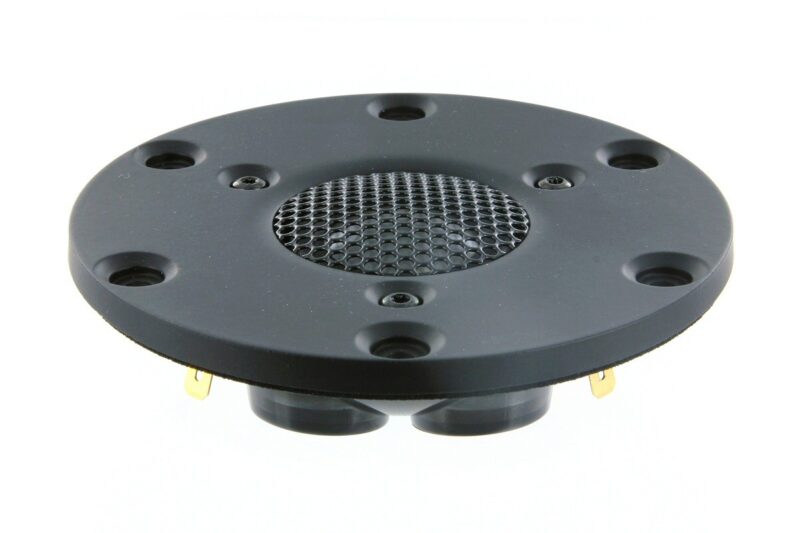

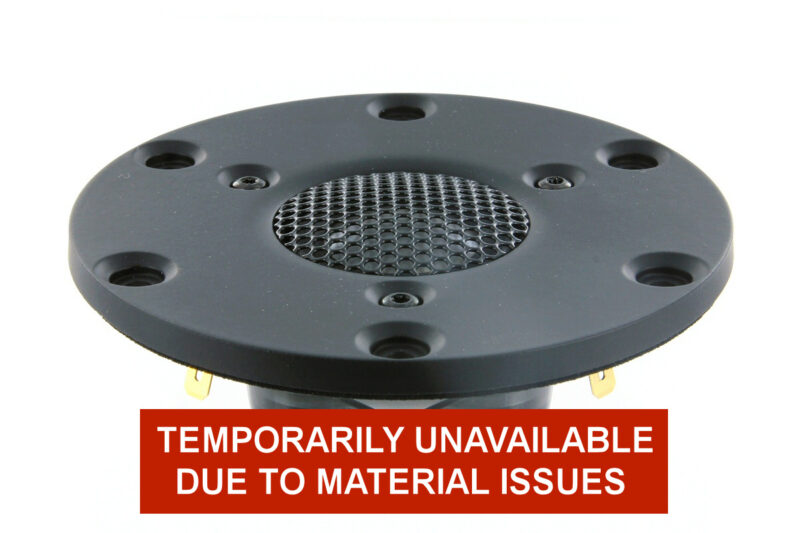

    D3004/664000


    - Beryllium Diaphragm (99% Pure Be)
    - AirCirc Motor Design w. 6 Neo magnets
    - Patented Symmetrical Drive (SD-2) motor
    - Large Roll Surround f. Wide Dispersion
    - Black Rubber Painted Die Cast Faceplate
    - Non-Magnetic Protective Grill


      Size:2.6 cm
      Fs:500 Hz
      Re:3 Ω
      Qt:0.54
      Sensitivity:91.5 dB
      VAS:0.02 ltr.
      Sd:7 cm²
      Bl:2.3 Tm


  • Tweeter

    D3004/666000


    - Bespoke tailored Thin-Ply Carbon Diaphragm (TPCD)
    - AirCirc Motor Design w. 6 Neo magnets
    - Patented Symmetrical Drive (SD-2) motor
    - Large Roll Surround f. Wide Dispersion
    - Black Anodized mashined Faceplate



      Size:2.6 cm
      Fs:500 Hz
      Re:3 Ω
      Qt:0.54
      Sensitivity:91.5 dB
      VAS:0.02 ltr.
      Sd:7 cm²
      Bl:2.3 Tm


  • Tweeter

    D3404/552000


    - Elliptic voice coil
    - AirCirc optimized magnetsystem
    - Low mechanical losses
    - Exceptionally low distortion
    - High sensitivity (SPL)
    - Flexible optics with replaceable decor ring


      Size:2.8 cm
      Fs:475 Hz
      Re:3 Ω
      Qt:0.57
      Sensitivity:97 dB
      VAS:0.04 ltr.
      Sd:11.4 cm²
      Bl:2.8 Tm


  • Tweeter

    H2606/920000


    - Horn Loaded High Sensitivity Tweeter
    - High Stability
    - Low Damping Ferrofluid Cooling
    - High Performance Tweeter
    - Coated Textile Diaphragm
    - Dampened Cavity in Pole Piece


      Size:2.5 cm
      Fs:1030 Hz
      Re:4.7 Ω
      Qt:0.7
      Sensitivity:95 dB
      VAS: ltr.
      Sd:5.7 cm²
      Bl:3.3 Tm


  • Automotive

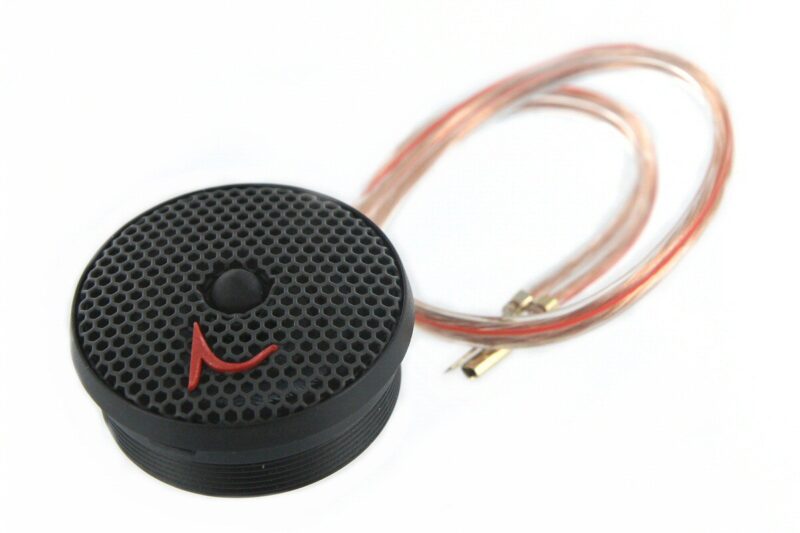

    R1904/613001


    - 3/4" Ring Dome tweeter
    - Compact mounting dimentions
    - Flange and Nut for doorpanel mounting
    - Optimized for Car use
    - Wedge House for dashboard mounting



      Size:1.9 cm
      Fs:1000 Hz
      Re:2.7 Ω
      Qt:1.61
      Sensitivity:87 dB
      VAS: ltr.
      Sd:3.8 cm²
      Bl:1.4 Tm


  • Tweeter

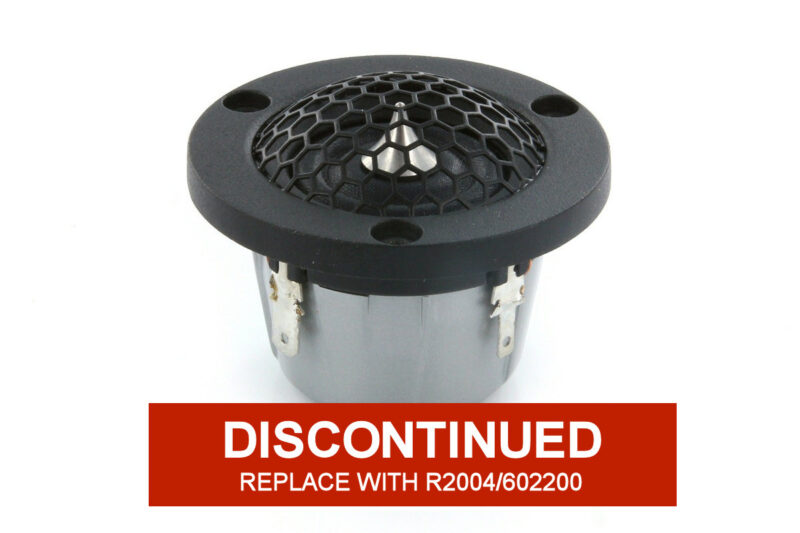

    R2004/602000


    - 3/4" Ring Dome Diaphragm
    - Patented Phase Plug Design
    - Patented Symmetrical Drive (SD-2) motor
    - Sound Transparant Protective Grill
    - Non Resonant Alu Rear Chamber
    - Die Cast Housing & Face Plate


      Size:1.9 cm
      Fs:675 Hz
      Re:2.8 Ω
      Qt:1.01
      Sensitivity:86 dB
      VAS:0.01 ltr.
      Sd:3.8 cm²
      Bl:1.3 Tm


  • Tweeter

    R2004/602200


    - 3/4" Ring Dome Diaphragm
    - Patented Phase Plug Design
    - Patented Symmetrical Drive (SD-2) motor
    - Black Anodized Machined Alu Face Plate
    - Gold plated terminals



      Size:1.9 cm
      Fs:625 Hz
      Re:2.8 Ω
      Qt:0.96
      Sensitivity:87.5 dB
      VAS:0.01 ltr.
      Sd:3.8 cm²
      Bl:1.3 Tm


  • Tweeter

    R2604/832000


    - Extended Frequency To Above 40KHz
    - Very Low Resonance Frequency - 500Hz
    - Low Distortion
    - Dual Ring Radiator diaphragm (Patent)
    - Wave-guide center plug (Patent)
    - Textile Diaphragm


      Size:2.6 cm
      Fs:500 Hz
      Re:2.9 Ω
      Qt:0.44
      Sensitivity:90 dB
      VAS:0.01 ltr.
      Sd:5.4 cm²
      Bl:2.3 Tm


  • Tweeter

    R2604/833000


    - Extended Frequency To Above 40KHz
    - Very Low Resonance Frequency - 450Hz
    - Low Distortion
    - High sensitivity - 92dB
    - Dual Ring Radiator diaphragm (Patent)
    - Wave-guide center plug (Patent)


      Size:2.6 cm
      Fs:440 Hz
      Re:2.9 Ω
      Qt:0.38
      Sensitivity:92 dB
      VAS:0.02 ltr.
      Sd:5.4 cm²
      Bl:2.3 Tm


  • Tweeter

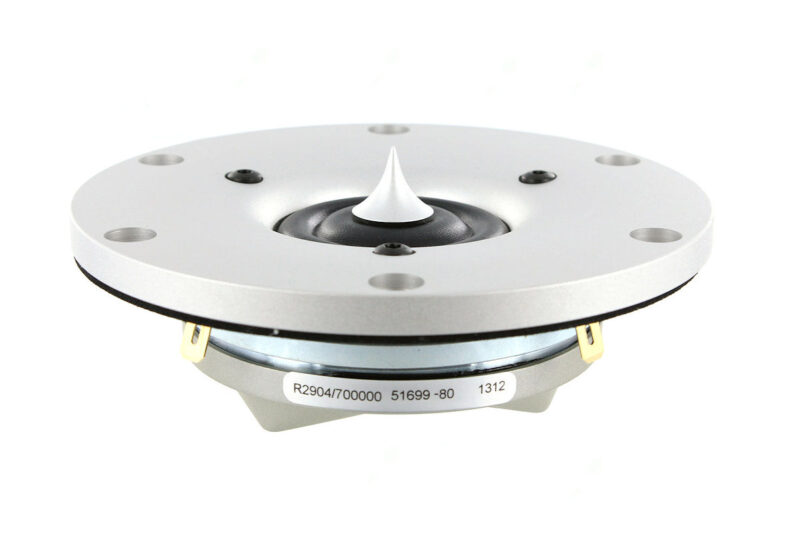

    R2904/700000


    - 1" Ring Dome Diaphragm
    - Patented Phase Plug Design
    - Patented Symmetrical Drive (SD-2) motor
    - Large Ring Neo Magnet f. High Output
    - Non Resonant Alu Rear Chamber
    - Silver Anodized Mashined Alu Face Plate


      Size:2.6 cm
      Fs:520 Hz
      Re:3 Ω
      Qt:0.33
      Sensitivity:94.5 dB
      VAS:0.01 ltr.
      Sd:5.6 cm²
      Bl:2.8 Tm


  • Tweeter

    R2904/700005


    - 1" Ring Dome Diaphragm
    - Patented Phase Plug Design
    - Patented Symmetrical Drive (SD-2) motor
    - Large Ring Neo Magnet f. High Output
    - Non Resonant Alu Rear Chamber
    - Black Anodized Machined Alu Face Plate


      Size:2.6 cm
      Fs:520 Hz
      Re:3 Ω
      Qt:0.33
      Sensitivity:94.5 dB
      VAS:0.01 ltr.
      Sd:5.6 cm²
      Bl:2.8 Tm


  • Tweeter

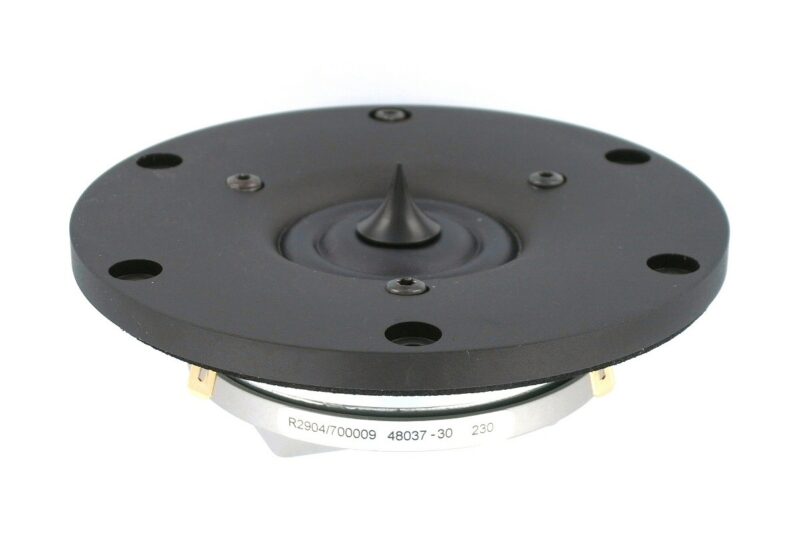

    R2904/700009


    - 1" Ring Dome Diaphragm
    - Patented Phase Plug Design
    - Patented Symmetrical Drive (SD-2) motor
    - Large Ring Neo Magnet f. High Output
    - Non Resonant Alu Rear Chamber
    - Black Anodized Machined Alu Face Plate


      Size:2.6 cm
      Fs:520 Hz
      Re:3 Ω
      Qt:0.33
      Sensitivity:94.5 dB
      VAS:0.01 ltr.
      Sd:5.6 cm²
      Bl:2.8 Tm


  • Tweeter

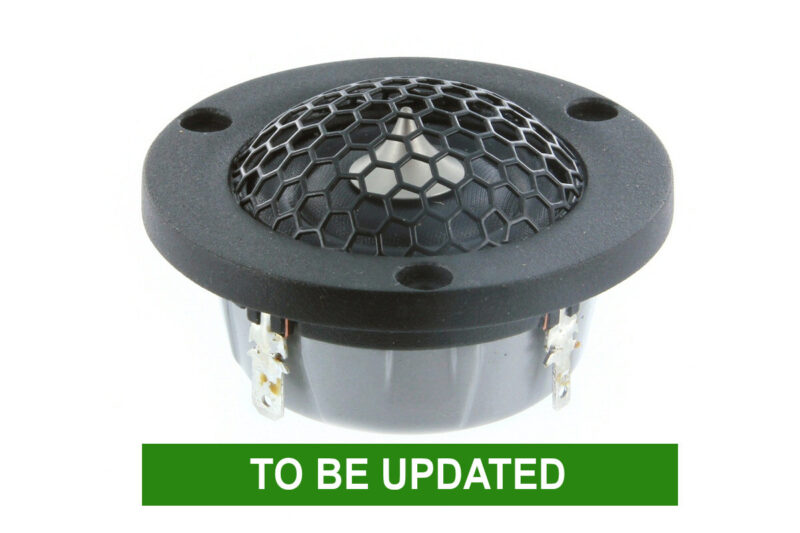

    R3004/602000


    - 1" Ring Dome Diaphragm
    - Patented Phase Plug Design
    - Patented Symmetrical Drive (SD-2) motor
    - Sound Transparant Protective Grill
    - Non Resonant Alu Rear Chamber
    - Die Cast Housing & Face Plate


      Size:2.6 cm
      Fs:625 Hz
      Re:3 Ω
      Qt:1.14
      Sensitivity:87.5 dB
      VAS:0.01 ltr.
      Sd:5.6 cm²
      Bl:1.7 Tm


  • Automotive

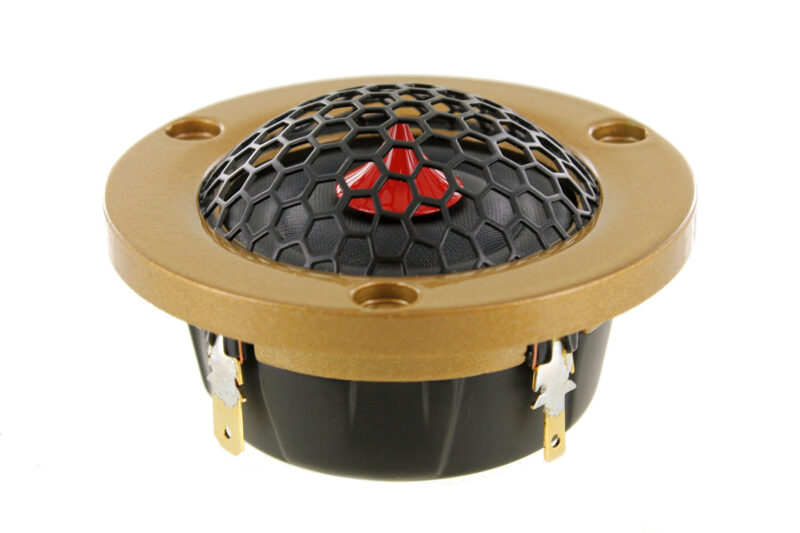

    R3004/602005


    - 1" Ring Dome Diaphragm
    - High Power Patented SD-2 magnet system
    - Non Resonant Alu Rear Chamber
    - Non Resonant Alu Rear Chamber
    - Sound Transparant Protective Grill
    - Die Cast Housing & Face Plate


      Size:2.6 cm
      Fs:630 Hz
      Re:3 Ω
      Qt:0.86
      Sensitivity:90 dB
      VAS:0.01 ltr.
      Sd:5.6 cm²
      Bl:2.4 Tm


  • Automotive

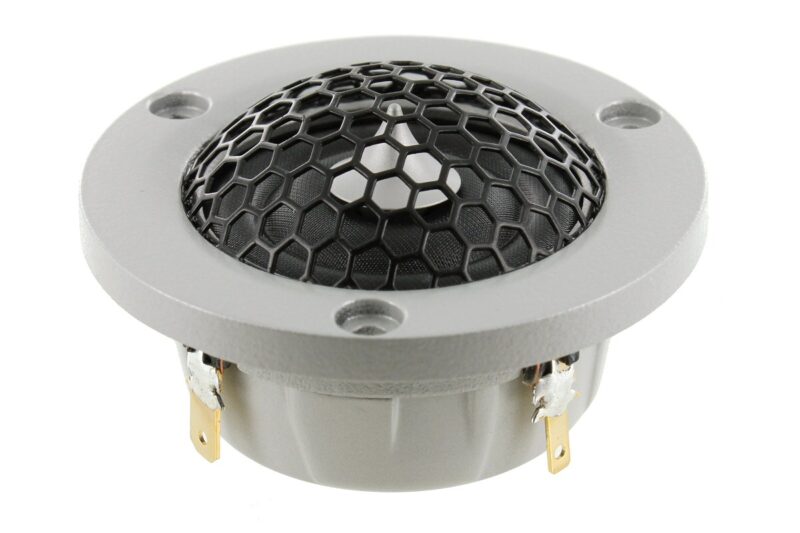

    R3004/602006


    - 1" Ring Dome Diaphragm
    - Patented Symmetrical Drive (SD-2) motor
    - Non Resonant Alu Rear Chamber
    - Patented Phase Plug Design
    - Sound Transparant Protective Grill
    - Die Cast Housing & Face Plate


      Size:2.6 cm
      Fs:625 Hz
      Re:3 Ω
      Qt:1.14
      Sensitivity:87.5 dB
      VAS:0.01 ltr.
      Sd:5.6 cm²
      Bl:1.7 Tm


  • Tweeter

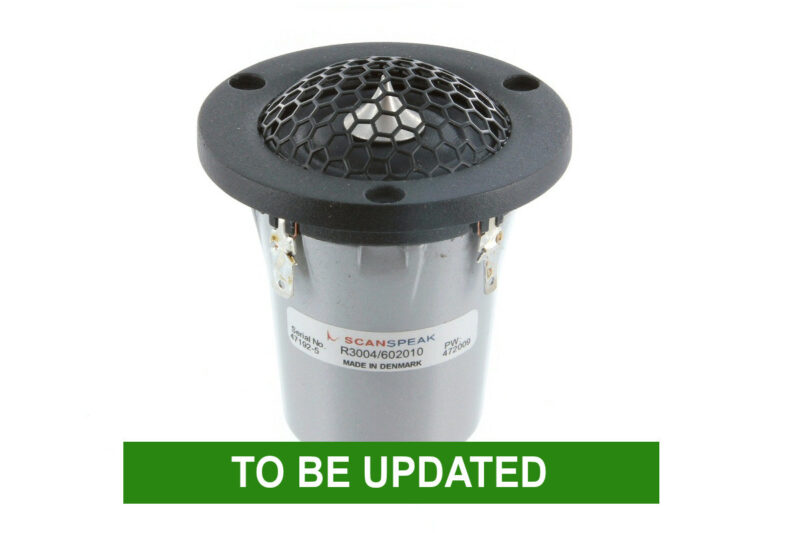

    R3004/602010


    - 1" Ring Dome Diaphragm
    - Patented Phase Plug Design
    - Patented Symmetrical Drive (SD-2) motor
    - Sound Transparant Protective Grill
    - Large Non Resonant Alu Rear Chamber
    - Die Cast Housing & Face Plate


      Size:2.6 cm
      Fs:420 Hz
      Re:3 Ω
      Qt:0.74
      Sensitivity:87.5 dB
      VAS:0.02 ltr.
      Sd:5.6 cm²
      Bl:1.7 Tm


  • Tweeter

    R3004/602200


    - 1" Ring Dome Tweeter
    - Patented Phase Plug Design
    - Patented Symmetrical Drive (SD-2) motor
    - Black Anodized machined Faceplate
    - Gold plated terminals



      Size:2.6 cm
      Fs:420 Hz
      Re:3 Ω
      Qt:0.40
      Sensitivity:89.5 dB
      VAS:0.02 ltr.
      Sd:5.6 cm²
      Bl:2.4 Tm


  • Tweeter

    R3004/662000


    - 1" Ring Dome Diaphragm
    - Patented Phase Plug Design
    - Patented Symmetrical Drive (SD-2) motor
    - AirCirc Motor Design w. 6 Neo magnets
    - Diffraction Damping Rubber Front
    - Die Cast Rubber Painted Alu Face Plate


      Size:2.6 cm
      Fs:520 Hz
      Re:3 Ω
      Qt:0.48
      Sensitivity:90.5 dB
      VAS:0.01 ltr.
      Sd:5.6 cm²
      Bl:2.3 Tm
