Illuminator

Products in the Illuminator family feature a wealth of advanced technologies, materials and sophisticated designs. Their common features are the underhung voice coil configuration and a large linear excursion capability.
Carefully designed and combined with a unique cone structure, the transparency, detail and lack of distortion even at higher levels is hard to find elsewhere.
In the end it all comes down to one thing; a loudspeaker should not have a sound of its own and should faithfully reproduce the signal flowing through the voice coil without adding or removing anything. The transducers in the Illuminator family do that better than most other products that we know of!

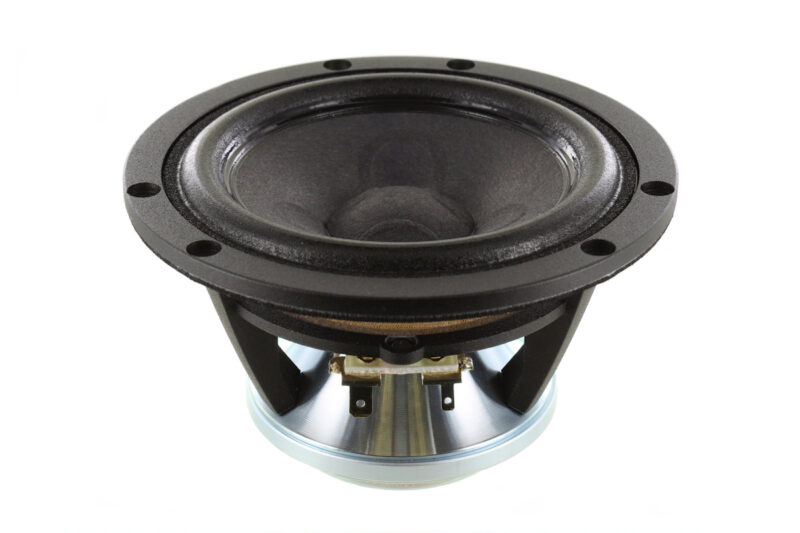

  • 12MU/4731T00
    Midrange

    12MU/4731T00

    - Under-Hung Neodymium Motor Design
    - Patented Symmetrical Drive (SD-3)
    - One Piece Cone-Dust Cap
    - Low-Loss Linear Suspension
    - Very Wide Frequency Response 100-10KHz
    - High Output 90dB @ 2,83V


      Size:12 cm
      Fs:64 Hz
      Re:3.1 Ω
      Qt:0.24
      Sensitivity:90 dB
      VAS:5.4 ltr.
      Sd:58 cm²
      Bl:5.1 Tm


  • 12MU/8731T00
    Midrange

    12MU/8731T00

    - Under-Hung Neodymium Motor Design
    - Patented Symmetrical Drive (SD-3)
    - One Piece Cone-Dust Cap
    - Low-Loss Linear Suspension
    - Very Wide Frequency Response 100-10KHz
    - High Output 87dB @ 2,83V


      Size:12 cm
      Fs:66 Hz
      Re:5.9 Ω
      Qt:0.29
      Sensitivity:87 dB
      VAS:5.8 ltr.
      Sd:58 cm²
      Bl:6.1 Tm


  • 15WU/4741T00
    Midwoofer

    15WU/4741T00

    - Under-Hung Neodymium Motor Design
    - Patented Symmetrical Drive (SD-3)
    - Patented Sandwich Paper Cone
    - Exceptionally Long Linear Excursion
    - Low-loss linear suspension
    - Patented Design


      Size:15 cm
      Fs:34 Hz
      Re:3.2 Ω
      Qt:0.23
      Sensitivity:86 dB
      VAS:20 ltr.
      Sd:92 cm²
      Bl:6 Tm

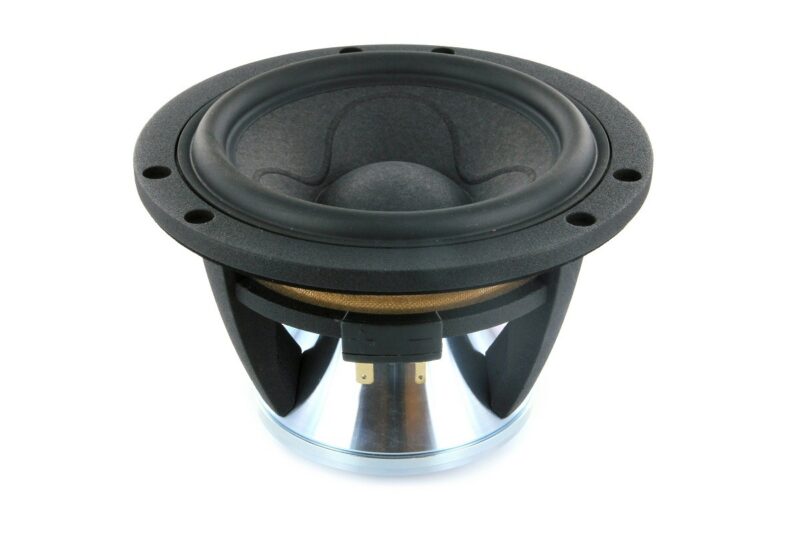

  • 15WU/8741T00
    Midwoofer

    15WU/8741T00

    - Under-Hung Neodymium Motor Design
    - Patented Symmetrical Drive (SD-3)
    - Patented Sandwich Paper Cone
    - Exceptionally Long Linear Excursion
    - Low-loss linear suspension
    - Patented Design


      Size:15 cm
      Fs:35 Hz
      Re:5.9 Ω
      Qt:0.26
      Sensitivity:83.5 dB
      VAS:19.9 ltr.
      Sd:92 cm²
      Bl:7.5 Tm


  • 18WU/4741T00
    Midwoofer

    18WU/4741T00

    - Under-Hung Neodymium Motor Design
    - Patented Symmetrical Drive (SD-3)
    - Patented Sandwich Paper Cone
    - Exceptionally Long Linear Excursion
    - Low-Loss linear suspension
    - Patented Design


      Size:18 cm
      Fs:34 Hz
      Re:3.3 Ω
      Qt:0.36
      Sensitivity:87.5 dB
      VAS:38.4 ltr.
      Sd:154 cm²
      Bl:5.9 Tm


  • 18WU/4747T00
    Woofer

    18WU/4747T00

    - Under-Hung Neodymium Motor Design
    - Patented Symmetrical Drive (SD-3)
    - Black Anodized Alu. Cone
    - Exceptionally Long Linear Excursion
    - Low-Loss linear suspension
    - Patented Design


      Size:18 cm
      Fs:36 Hz
      Re:3.3 Ω
      Qt:0.35
      Sensitivity:87.5 dB
      VAS:36 ltr.
      Sd:154 cm²
      Bl:5.9 Tm

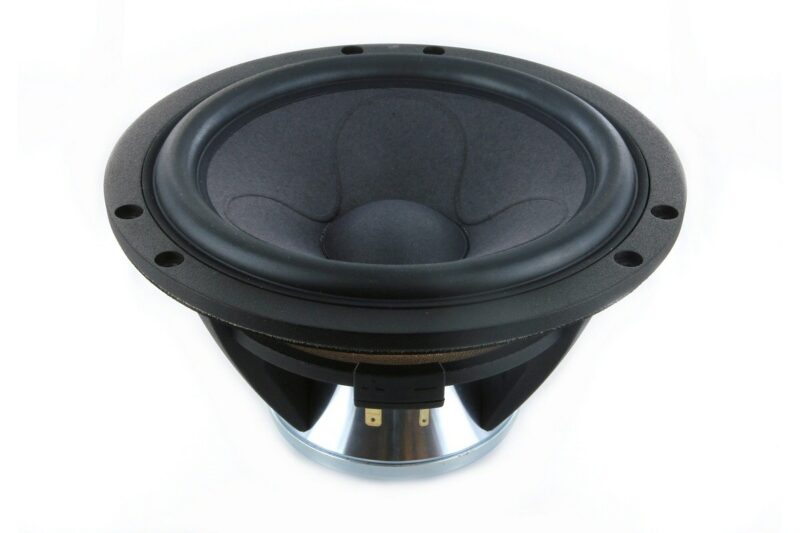

  • 18WU/8741T00
    Midwoofer

    18WU/8741T00

    - Under-Hung Neodymium Motor Design
    - Patented Symmetrical Drive (SD-3)
    - Patented Sandwich Paper Cone
    - Exceptionally Long Linear Excursion
    - Low-Loss linear suspension
    - Patented Design


      Size:18 cm
      Fs:35 Hz
      Re:5.8 Ω
      Qt:0.39
      Sensitivity:85.5 dB
      VAS:37.1 ltr.
      Sd:154 cm²
      Bl:7.3 Tm

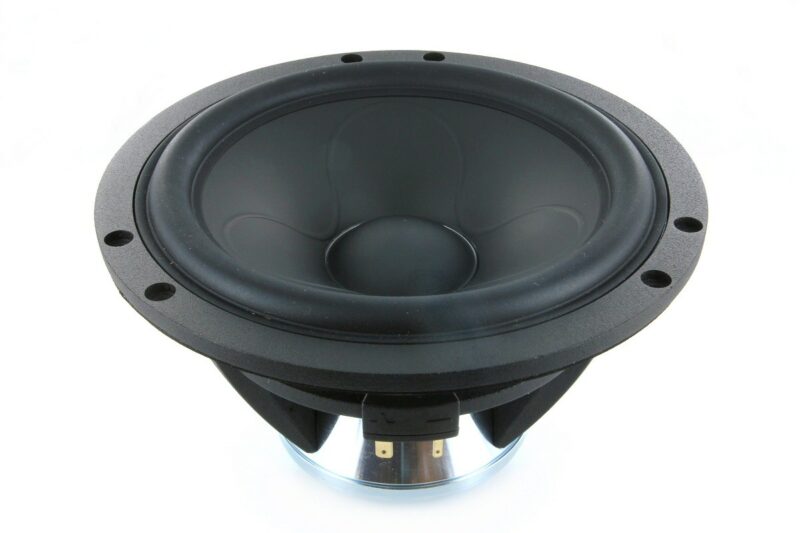

  • 18WU/8747T00
    Woofer

    18WU/8747T00

    - Under-Hung Neodymium Motor Design
    - Patented Symmetrical Drive (SD-3)
    - Black Anodized Alu. Cone
    - Exceptionally Long Linear Excursion
    - Low-Loss linear suspension
    - Patented Design


      Size:18 cm
      Fs:36 Hz
      Re:5.8 Ω
      Qt:0.38
      Sensitivity:85.5 dB
      VAS:36.2 ltr.
      Sd:154 cm²
      Bl:7.4 Tm


  • D2004/602000
    Tweeter

    D2004/602000

    - 3/4" Textile Dome Diaphragm
    - Large Roll Surround f. Wide Dispersion
    - Patented Symmetrical Drive (SD-2) motor
    - Sound Transparant Protective Grill
    - Non Resonant Alu Rear Chamber
    - Die Cast Housing & Face Plate


      Size:1.9 cm
      Fs:600 Hz
      Re:2.8 Ω
      Qt:1.07
      Sensitivity:88.5 dB
      VAS:0.01 ltr.
      Sd:4.5 cm²
      Bl:1.3 Tm

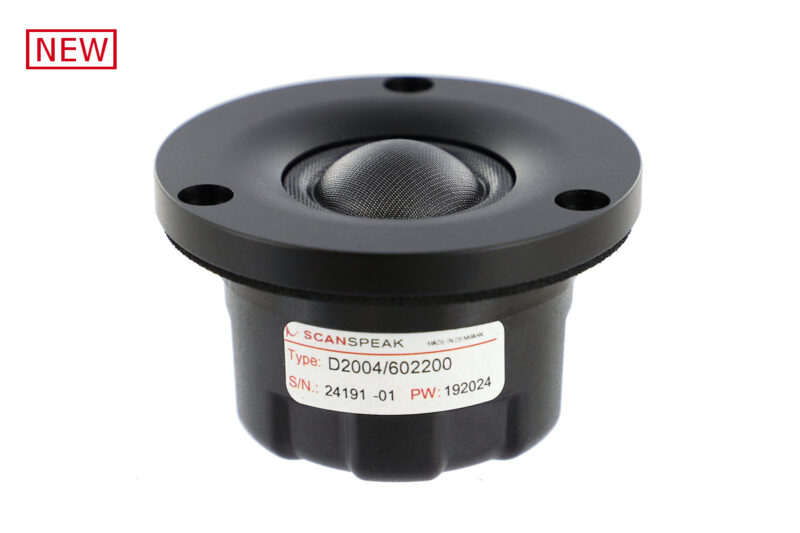

  • D2004/602200
    Tweeter

    D2004/602200

    - 3/4" Textile Dome Diaphragm
    - Large Roll Surround f. Wide Dispersion
    - Patented Symmetrical Drive (SD-2) motor
    - Black Anodized mashined Alu Faceplate
    - Gold Plated Terminals



      Size:1.9 cm
      Fs:550 Hz
      Re:2.8 Ω
      Qt:0.95
      Sensitivity:89 dB
      VAS:0.01 ltr.
      Sd:4.5 cm²
      Bl:1.3 Tm

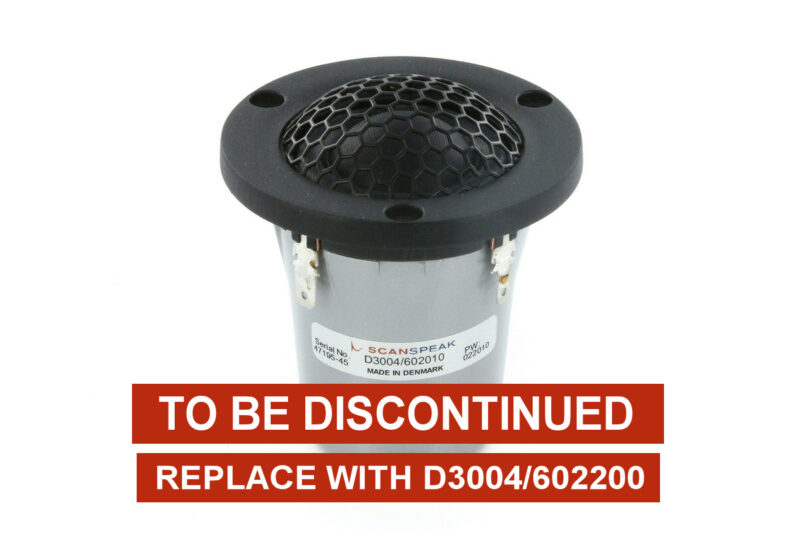

  • D3004/602010
    Tweeter

    D3004/602010

    - 1" Textile Dome Diamphragm
    - Large Roll Surround f. Wide Dispersion
    - Patented Symmetrical Drive (SD-2) motor
    - Sound Transparant Protective Grill
    - Large Non Resonant Alu Rear Chamber
    - Die Cast Housing & Face Plate


      Size:2.6 cm
      Fs:425 Hz
      Re:3 Ω
      Qt:0.7
      Sensitivity:89.5 dB
      VAS:0.03 ltr.
      Sd:7 cm²
      Bl:1.7 Tm

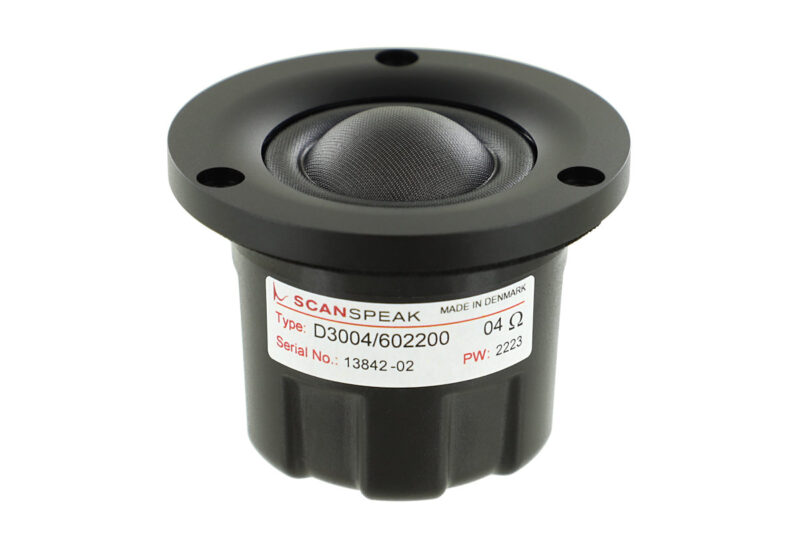

  • D3004/602200
    Tweeter

    D3004/602200

    - 1" Textile Dome Tweeter
    - Large roll surround f. wide dispersion
    - Patented Symmetrical Drive (SD-2) motor
    - Black Anodized machined Faceplate
    - Gold plated terminals



      Size:2.6 cm
      Fs:440 Hz
      Re:3 Ω
      Qt:0.42
      Sensitivity:90.5 dB
      VAS:0.03 ltr.
      Sd:7 cm²
      Bl:2.3 Tm

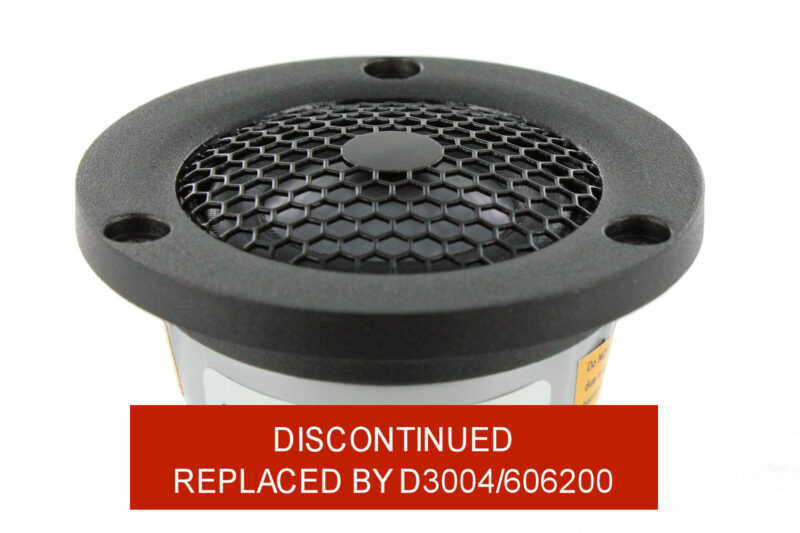

  • D3004/604000
    Tweeter

    D3004/604000

    - 1" Beryllium Diaphragm (99% pure Be)
    - Large Roll Surround f. wide dispersion
    - Patented Symmetrical Drive (SD-2) motor
    - Compact Non Resonant Alu Rear Champer
    - Die Cast Housing & Face Plate
    - Sound Transparant Protective Grill


      Size:2.6 cm
      Fs:750 Hz
      Re:2.9 Ω
      Qt:1.41
      Sensitivity:90.5 dB
      VAS:0.01 ltr.
      Sd:7 cm²
      Bl:1.2 Tm

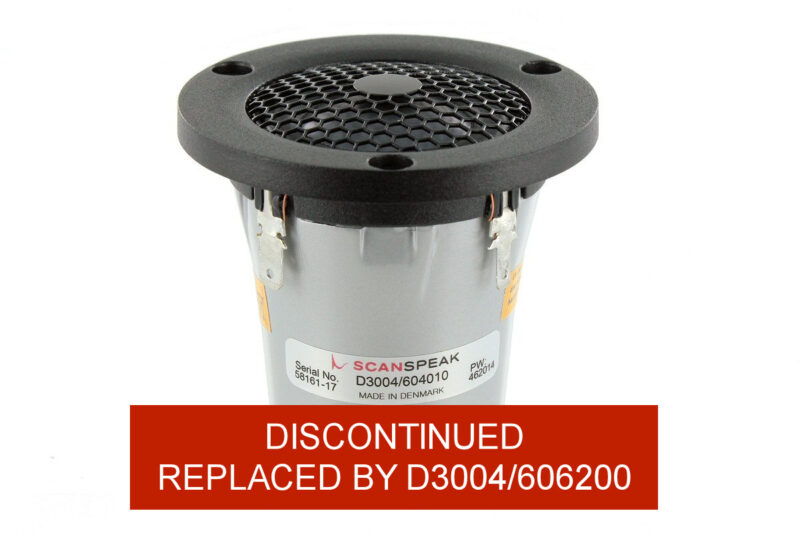

  • D3004/604010
    Tweeter

    D3004/604010

    - 1" Beryllium diaphragm (99% pure BE)
    - Patented symetrical drive (SD-2) motor
    - Large non resonant aluminium enclosure
    - Large roll surround f. wide dispersion
    - Sound transparant protective grill
    - Applicable for HiFi and automotive


      Size:2.6 cm
      Fs:450 Hz
      Re:3 Ω
      Qt:0.7
      Sensitivity:90.5 dB
      VAS:0.03 ltr.
      Sd:7 cm²
      Bl:1.7 Tm

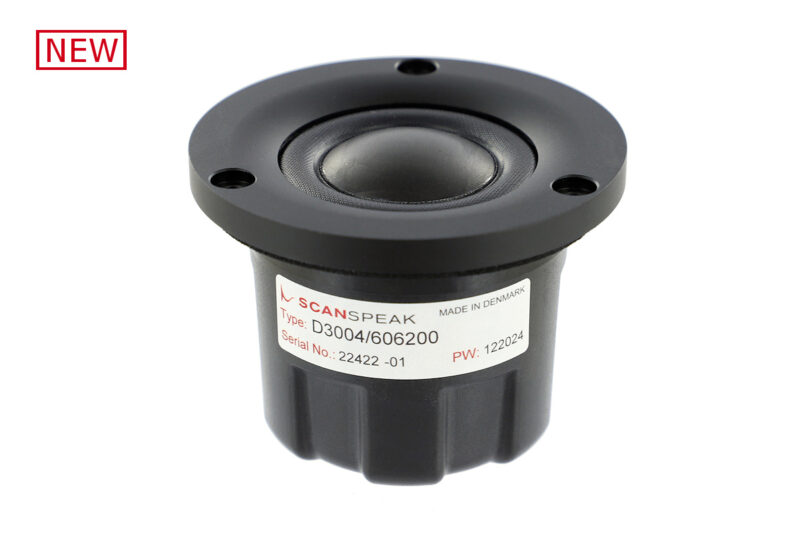

  • D3004/606200
    Tweeter

    D3004/606200

    - 1" TPCD Tweeter
    - Bespoke tailored Thin-ply Carbon Diaphragm
    - Large roll surround f. wide dispersion
    - Patented Symmetrical Drive (SD-2) motor
    - Black Anodized mashined Faceplate
    - Gold Plated Terminals


      Size:2.6 cm
      Fs:430 Hz
      Re:3 Ω
      Qt:0.38
      Sensitivity:91 dB
      VAS:0.03 ltr.
      Sd:7 cm²
      Bl:2.4 Tm

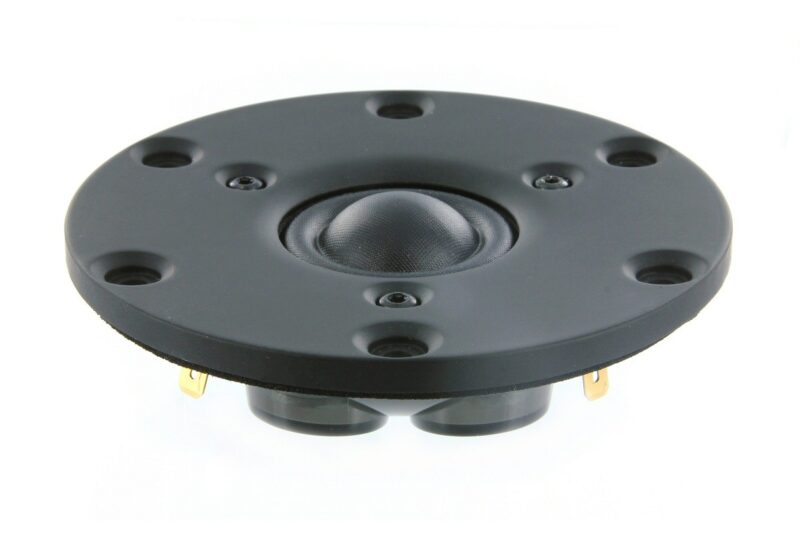

  • D3004/660000
    Tweeter

    D3004/660000

    - 1" Textile Dome Diaphragm
    - Large Roll Surround f. Wide Dispersion
    - Patented Symmetrical Drive (SD-2) motor
    - AirCirc Motor Design w. 6 Neo magnets
    - Die Cast Rubber Painted Alu Face Plate



      Size:2.6 cm
      Fs:470 Hz
      Re:3 Ω
      Qt:0.49
      Sensitivity:91.5 dB
      VAS:0.02 ltr.
      Sd:6.9 cm²
      Bl:2.3 Tm

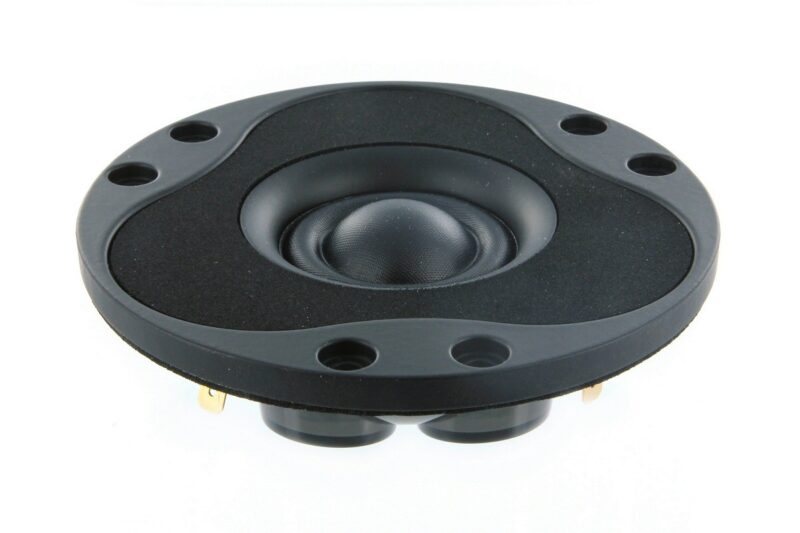

  • D3004/662000
    Tweeter

    D3004/662000

    - 1" Textile Dome Diaphragm
    - Large Roll Surround f. Wide Dispersion
    - Patented Symmetrical Drive (SD-2) motor
    - AirCirc Motor Design w. 6 Neo magnets
    - Diffraction Damping Rubber Front
    - Die Cast Rubber Painted Alu Face Plate


      Size:2.6 cm
      Fs:500 Hz
      Re:3 Ω
      Qt:0.54
      Sensitivity:91.5 dB
      VAS:0.02 ltr.
      Sd:7 cm²
      Bl:2.3 Tm

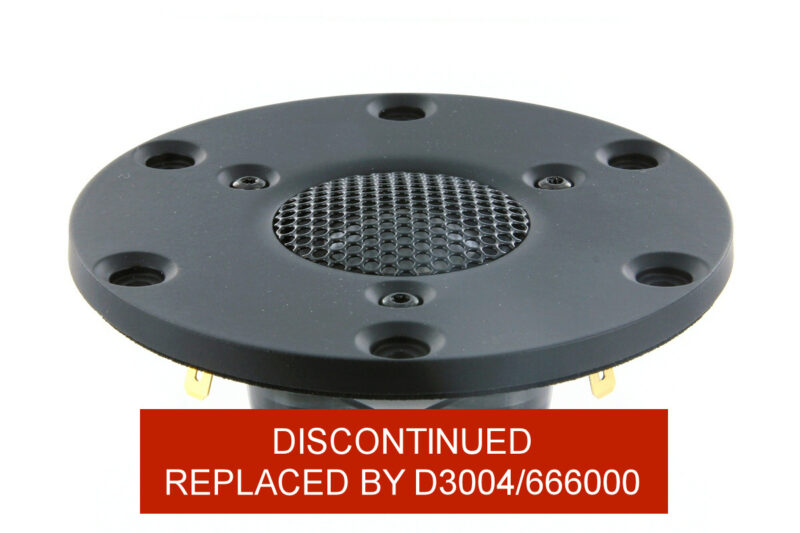

  • D3004/664000
    Tweeter

    D3004/664000

    - Beryllium Diaphragm (99% Pure Be)
    - AirCirc Motor Design w. 6 Neo magnets
    - Patented Symmetrical Drive (SD-2) motor
    - Large Roll Surround f. Wide Dispersion
    - Black Rubber Painted Die Cast Faceplate
    - Non-Magnetic Protective Grill


      Size:2.6 cm
      Fs:500 Hz
      Re:3 Ω
      Qt:0.54
      Sensitivity:91.5 dB
      VAS:0.02 ltr.
      Sd:7 cm²
      Bl:2.3 Tm

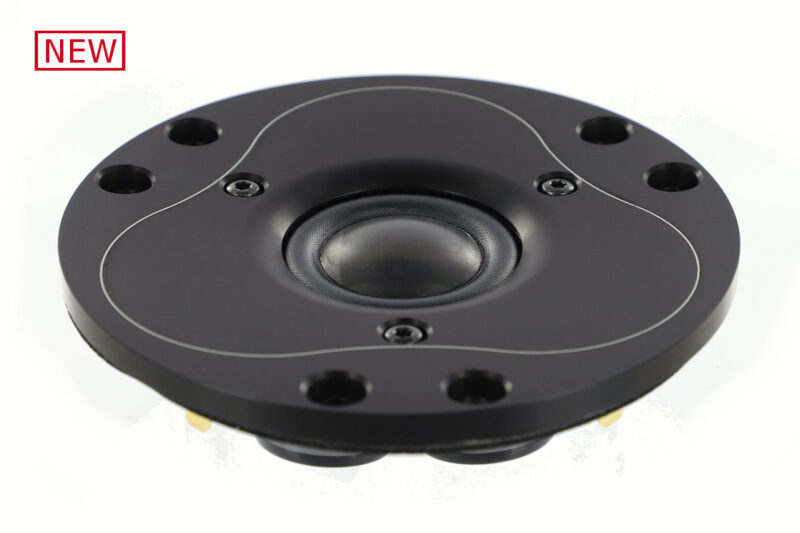

  • D3004/666000
    Tweeter

    D3004/666000

    - Bespoke tailored Thin-Ply Carbon Diaphragm (TPCD)
    - AirCirc Motor Design w. 6 Neo magnets
    - Patented Symmetrical Drive (SD-2) motor
    - Large Roll Surround f. Wide Dispersion
    - Black Anodized mashined Faceplate



      Size:2.6 cm
      Fs:500 Hz
      Re:3 Ω
      Qt:0.54
      Sensitivity:91.5 dB
      VAS:0.02 ltr.
      Sd:7 cm²
      Bl:2.3 Tm

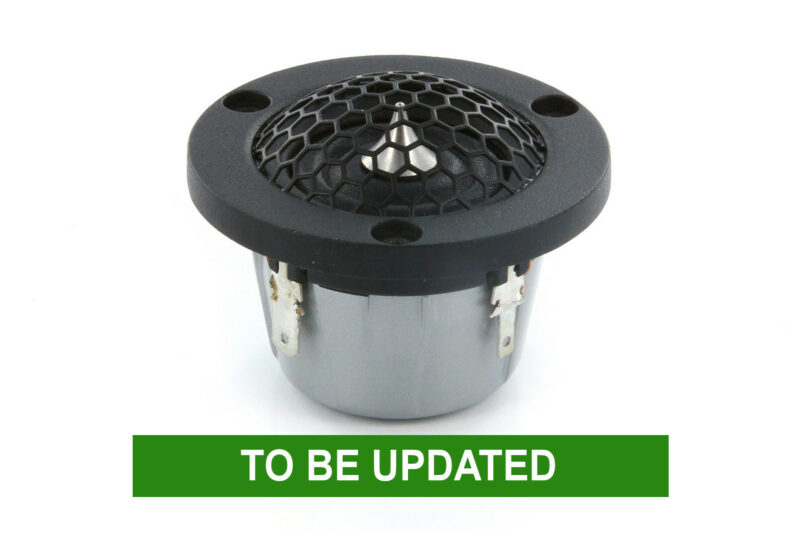

  • R2004/602000
    Tweeter

    R2004/602000

    - 3/4" Ring Dome Diaphragm
    - Patented Phase Plug Design
    - Patented Symmetrical Drive (SD-2) motor
    - Sound Transparant Protective Grill
    - Non Resonant Alu Rear Chamber
    - Die Cast Housing & Face Plate


      Size:1.9 cm
      Fs:675 Hz
      Re:2.8 Ω
      Qt:1.01
      Sensitivity:86 dB
      VAS:0.01 ltr.
      Sd:3.8 cm²
      Bl:1.3 Tm

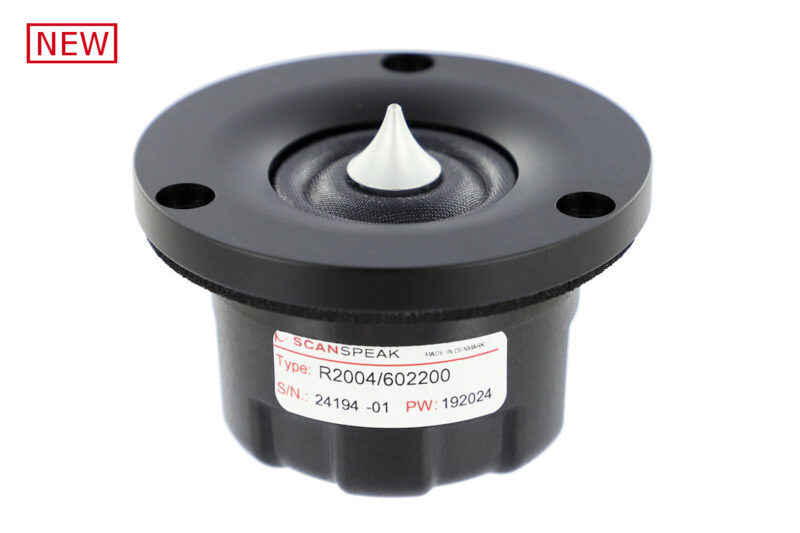

  • R2004/602200
    Tweeter

    R2004/602200

    - 3/4" Ring Dome Diaphragm
    - Patented Phase Plug Design
    - Patented Symmetrical Drive (SD-2) motor
    - Black Anodized Machined Alu Face Plate
    - Gold plated terminals



      Size:1.9 cm
      Fs:625 Hz
      Re:2.8 Ω
      Qt:0.96
      Sensitivity:87.5 dB
      VAS:0.01 ltr.
      Sd:3.8 cm²
      Bl:1.3 Tm

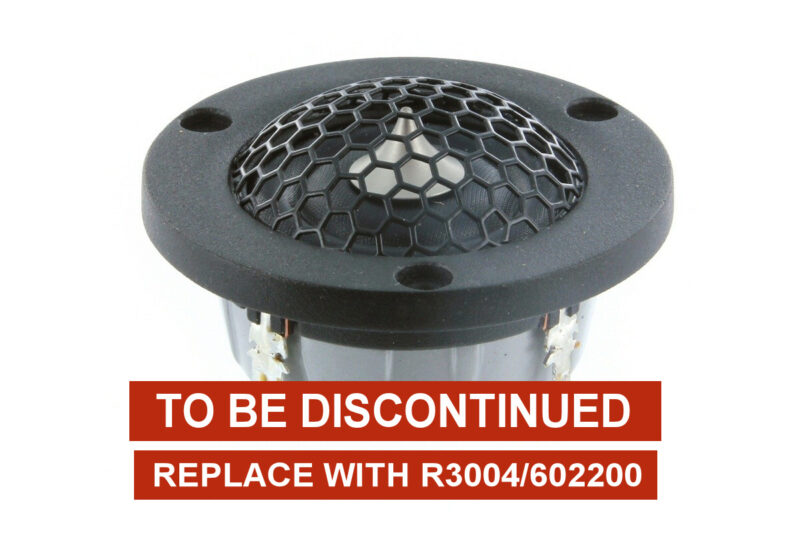

  • R3004/602000
    Tweeter

    R3004/602000

    - 1" Ring Dome Diaphragm
    - Patented Phase Plug Design
    - Patented Symmetrical Drive (SD-2) motor
    - Sound Transparant Protective Grill
    - Non Resonant Alu Rear Chamber
    - Die Cast Housing & Face Plate


      Size:2.6 cm
      Fs:625 Hz
      Re:3 Ω
      Qt:1.14
      Sensitivity:87.5 dB
      VAS:0.01 ltr.
      Sd:5.6 cm²
      Bl:1.7 Tm

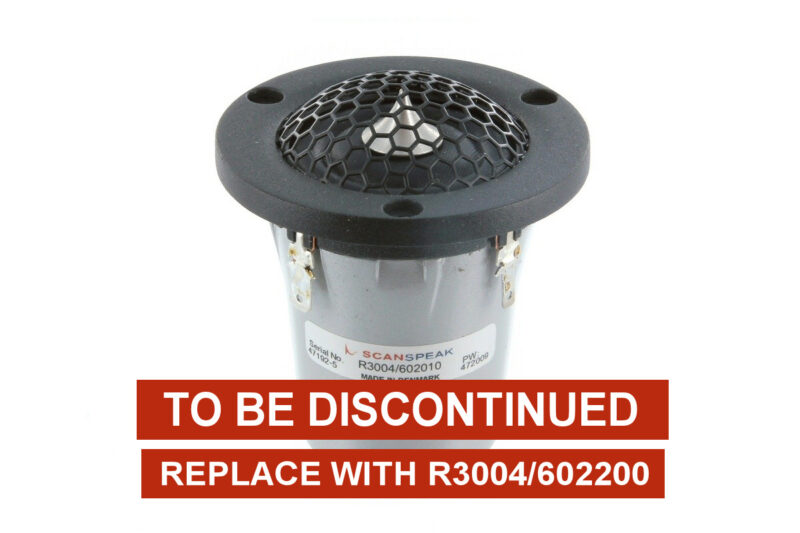

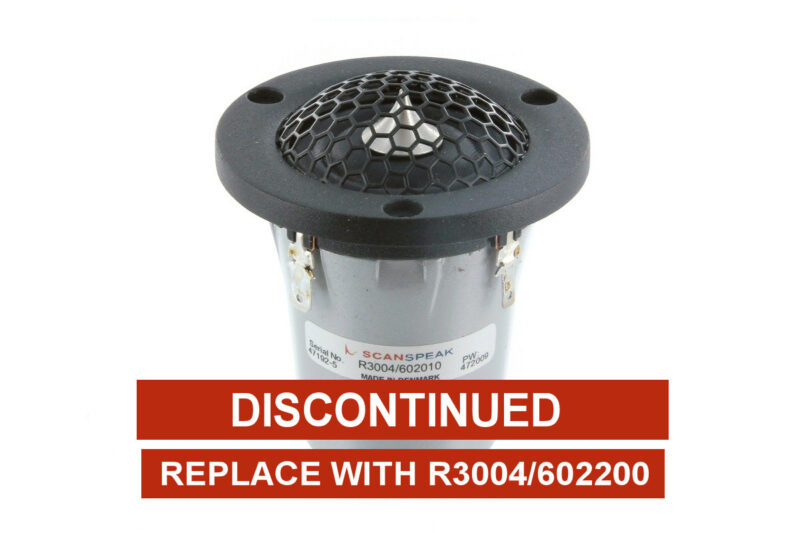

  • R3004/602010
    Tweeter

    R3004/602010

    - 1" Ring Dome Diaphragm
    - Patented Phase Plug Design
    - Patented Symmetrical Drive (SD-2) motor
    - Sound Transparant Protective Grill
    - Large Non Resonant Alu Rear Chamber
    - Die Cast Housing & Face Plate


      Size:2.6 cm
      Fs:420 Hz
      Re:3 Ω
      Qt:0.74
      Sensitivity:87.5 dB
      VAS:0.02 ltr.
      Sd:5.6 cm²
      Bl:1.7 Tm

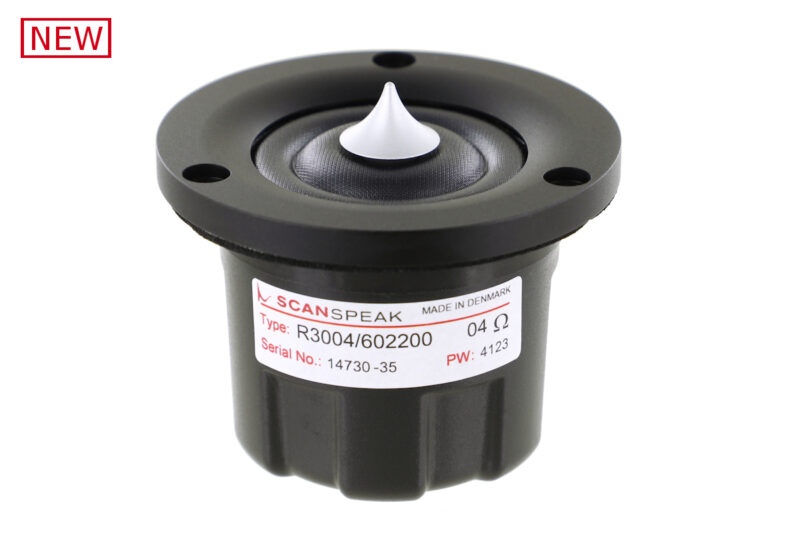

  • R3004/602200
    Tweeter

    R3004/602200

    - 1" Ring Dome Tweeter
    - Patented Phase Plug Design
    - Patented Symmetrical Drive (SD-2) motor
    - Black Anodized machined Faceplate
    - Gold plated terminals



      Size:2.6 cm
      Fs:420 Hz
      Re:3 Ω
      Qt:0.40
      Sensitivity:89.5 dB
      VAS:0.02 ltr.
      Sd:5.6 cm²
      Bl:2.4 Tm

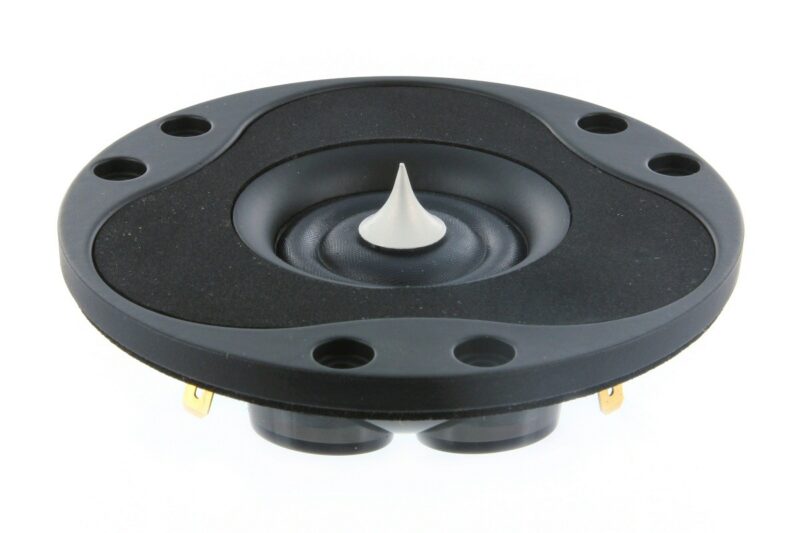

  • R3004/662000
    Tweeter

    R3004/662000

    - 1" Ring Dome Diaphragm
    - Patented Phase Plug Design
    - Patented Symmetrical Drive (SD-2) motor
    - AirCirc Motor Design w. 6 Neo magnets
    - Diffraction Damping Rubber Front
    - Die Cast Rubber Painted Alu Face Plate


      Size:2.6 cm
      Fs:520 Hz
      Re:3 Ω
      Qt:0.48
      Sensitivity:90.5 dB
      VAS:0.01 ltr.
      Sd:5.6 cm²
      Bl:2.3 Tm
