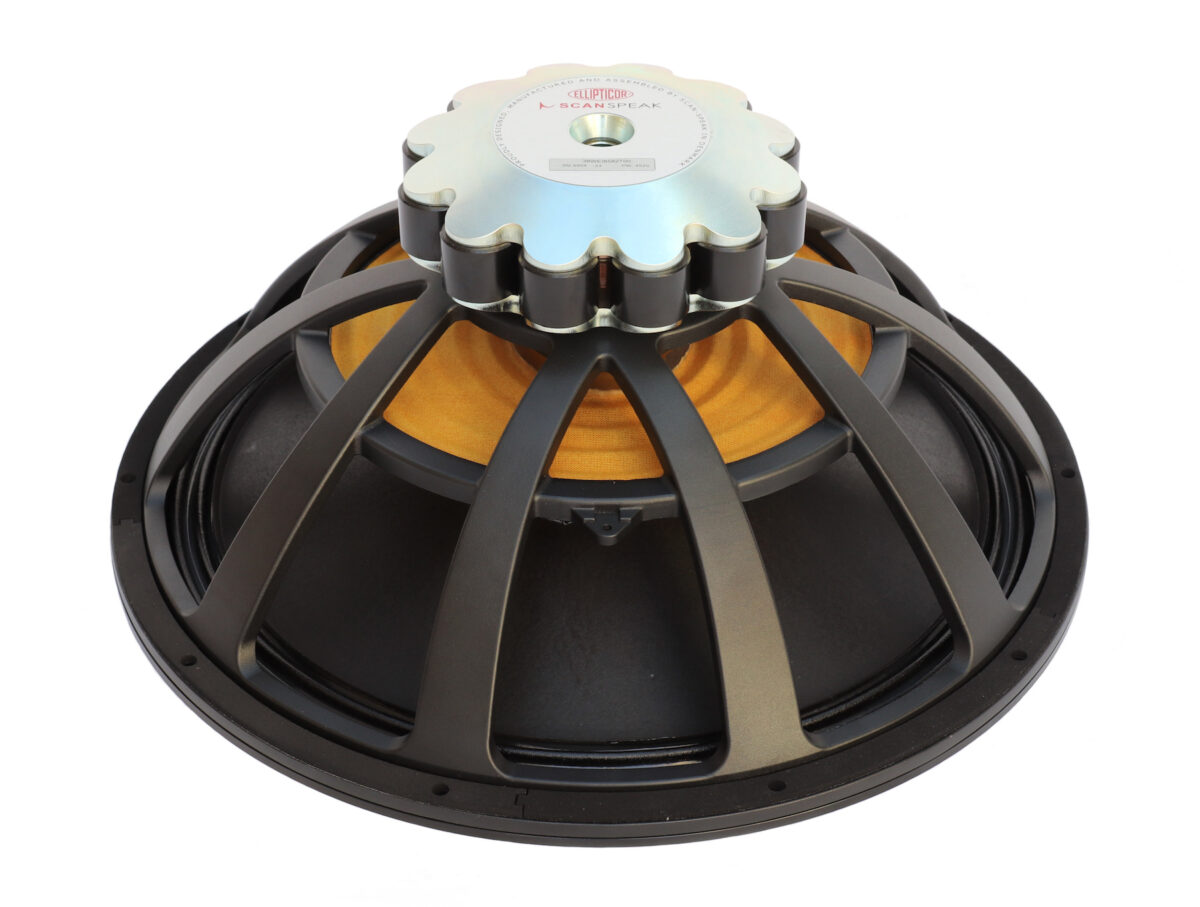

38 cm Woofer, 8 ohm, Paper Cone, Neo, AirCirc

Category: Tags: ,

With the Ellipticor family a long tradition of circular motor structures and their inherent breakup behavior has been broken since one of its key features is an elliptical voice coil and magnet gap. In combination with the powerful SD AirCirc magnet system the 38WE has high sensitivity, very low distortion, and has an extremely fast response to transients. Above all a TRUE TO LIVE sound which makes 38WE/8582T00 one of the very best woofers on the market!



Weight 5.8 kg
Product Families


Product Categories


- Elliptical voice coil
- AirCirc optimized magnetsystem
- Very low mechanical losses
- Exceptionally low distortion
- High Sensitivity (SPL)
- Flexible apperance with replaceable decor ring

  Size:38 cm
  Fs:26 Hz
  Re:6.4 Ω
  Sensitivity:95 dB
  VAS:423 ltr.
  Sd:825 cm²
  Bl:18.7 Tm
