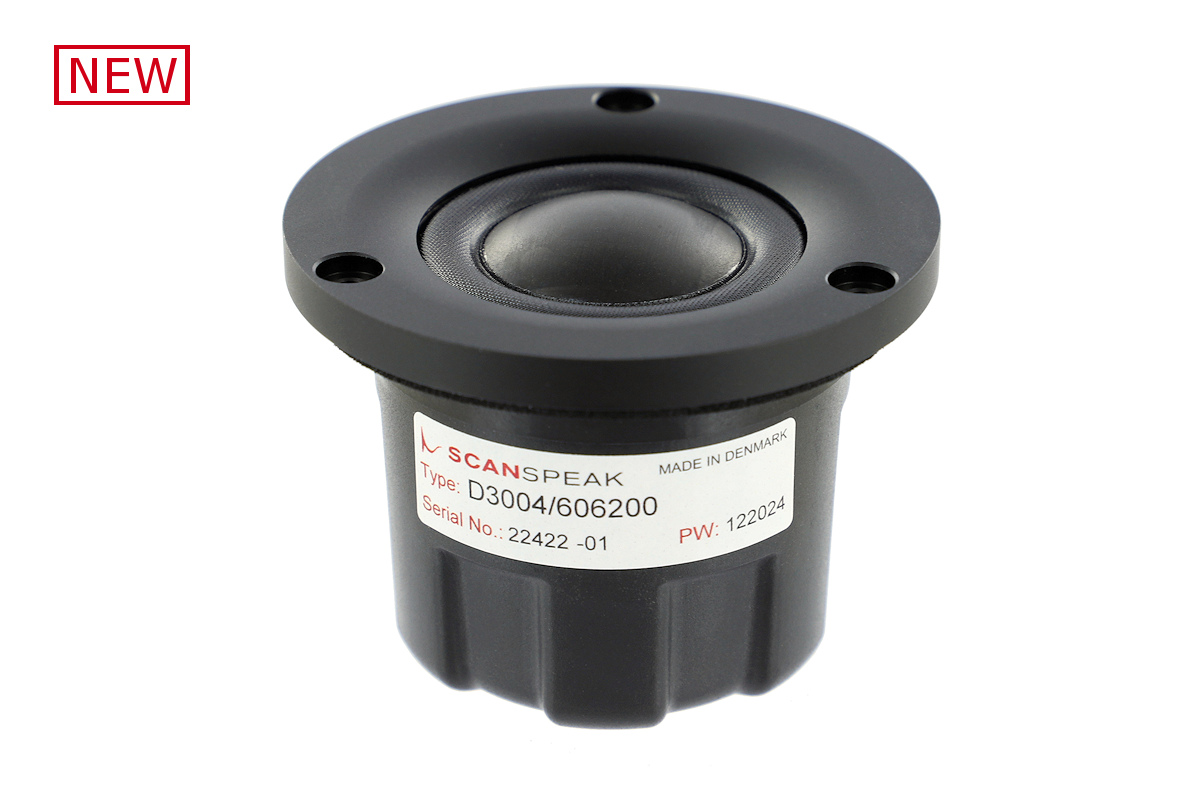

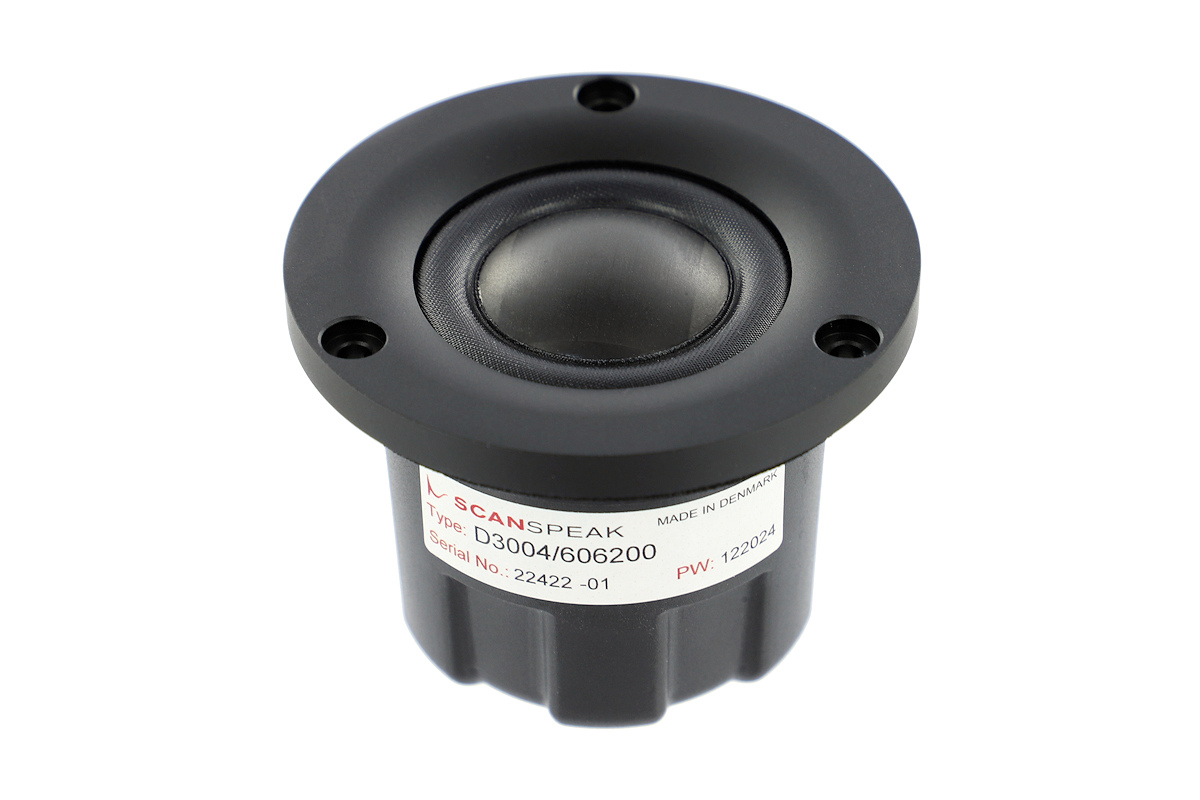

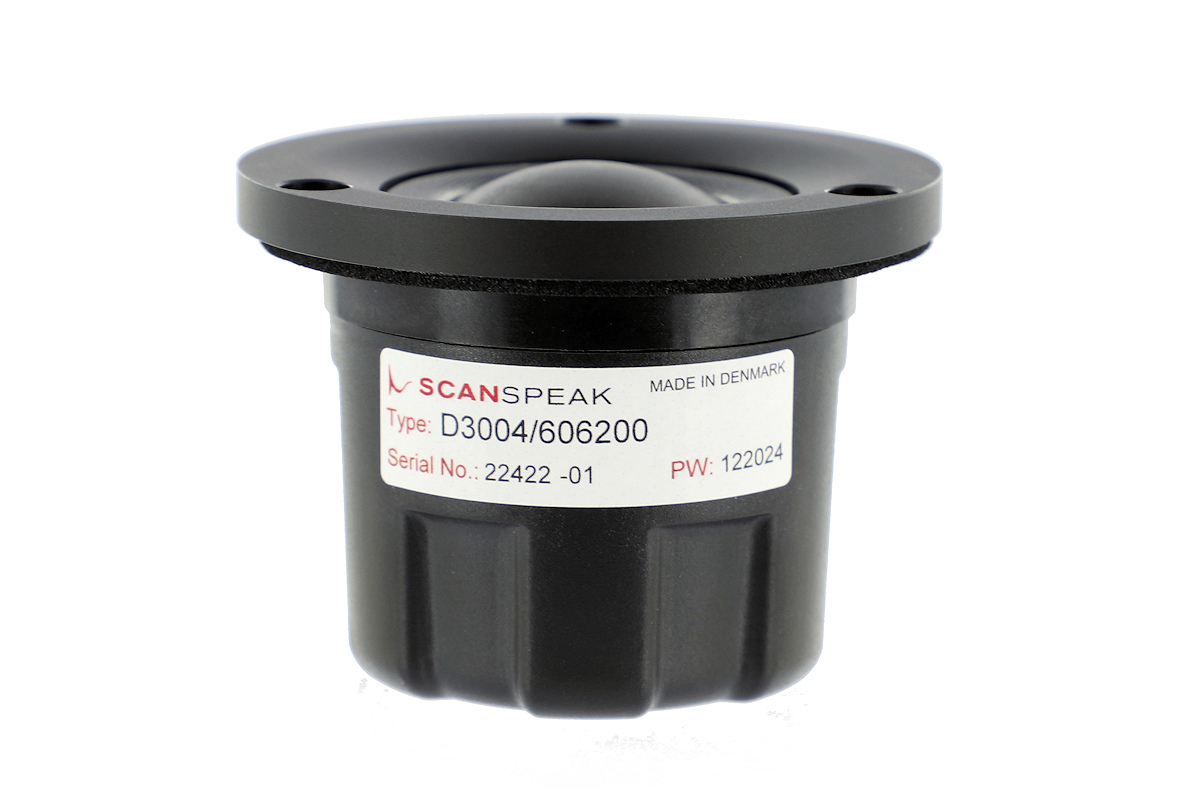

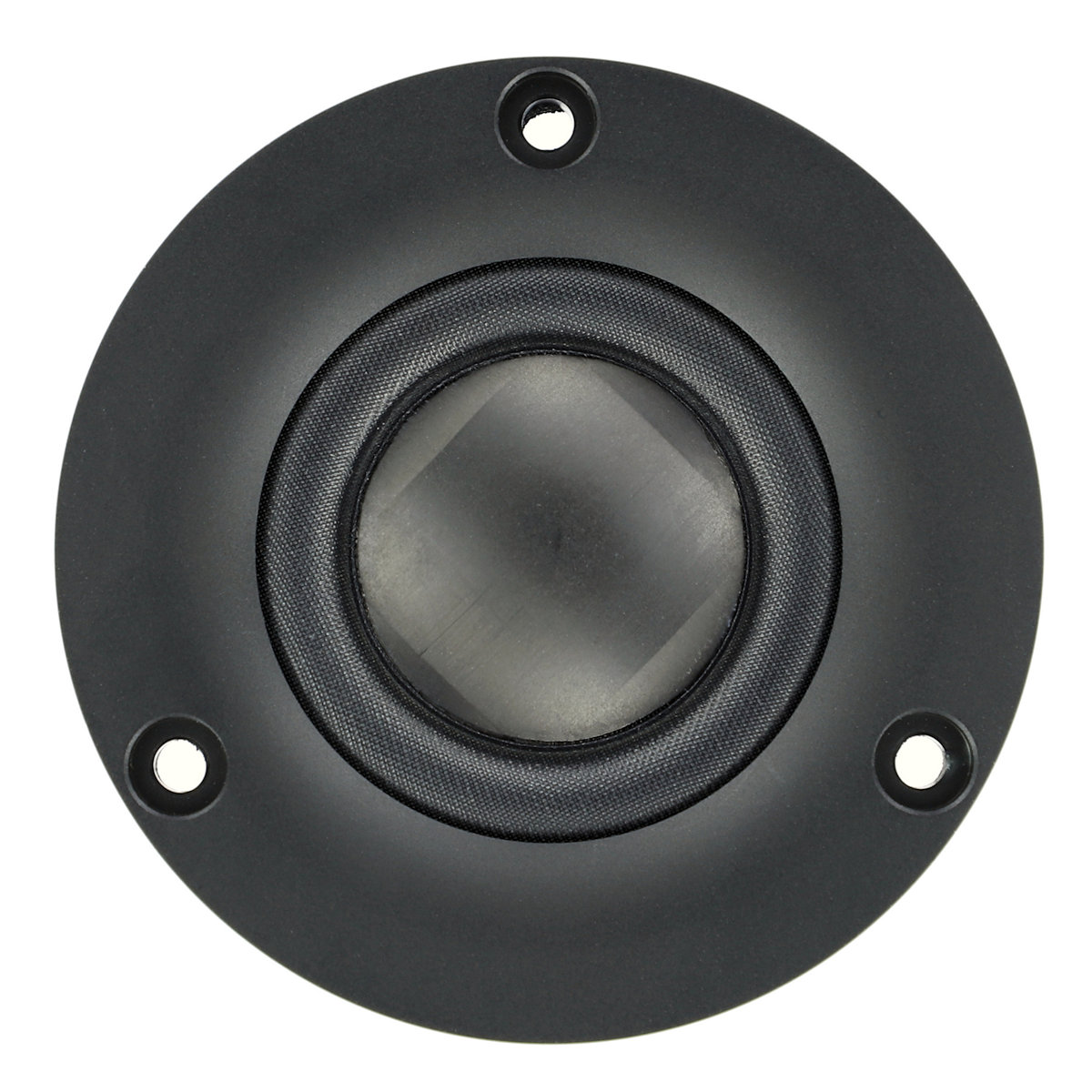

D3004/606200

26 mm Textreme Dome Tweeter

Category: Tags: ,

Reviews:
Voice Coil, 07-2024

The compact size is one of the key elements of these Illuminator tweeters, which provides a high degree of flexibility within design options. The small size is employed without compromising sound quality where these compact tweeters are fully comparable to the renowned full size Illuminator and Revelator tweeters, no matter if the music is played at high or low listening levels.






Product Families

Illuminator

Product Categories

Tweeter


- 1" TPCD Tweeter
- Bespoke tailored Thin-ply Carbon Diaphragm
- Large roll surround f. wide dispersion
- Patented Symmetrical Drive (SD-2) motor
- Black Anodized mashined Faceplate
- Gold Plated Terminals

  Size:2.6 cm
  Fs:430 Hz
  Re:3 Ω
  Qt:0.38
  Sensitivity:91 dB
  VAS:0.03 ltr.
  Sd:7 cm²
  Bl:2.4 Tm
