Tweeter

Showing 1–9 of 44 results

  • Tweeter

    D2004/602000


    - 3/4" Textile Dome Diaphragm
    - Large Roll Surround f. Wide Dispersion
    - Patented Symmetrical Drive (SD-2) motor
    - Sound Transparant Protective Grill
    - Non Resonant Alu Rear Chamber
    - Die Cast Housing & Face Plate


      Size:1.9 cm
      Fs:600 Hz
      Re:2.8 Ω
      Qt:1.07
      Sensitivity:88.5 dB
      VAS:0.01 ltr.
      Sd:4.5 cm²
      Bl:1.3 Tm

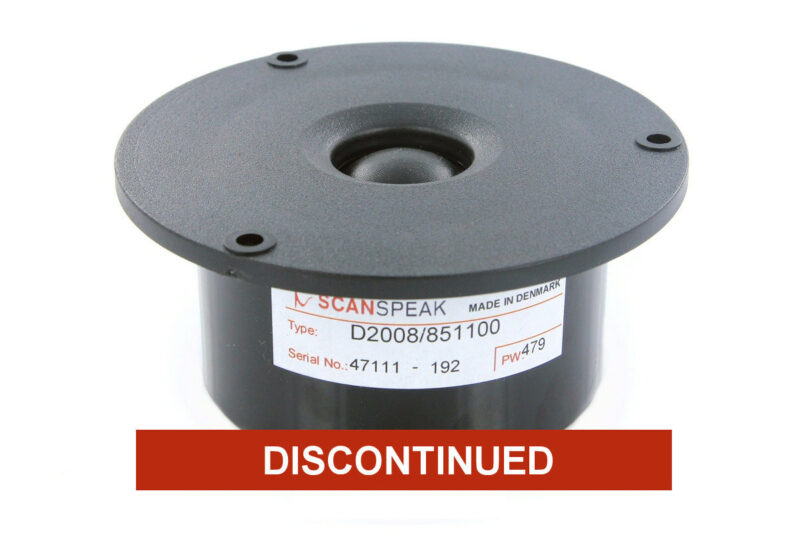

  • Tweeter

    D2008/851100


    - 3/4" Textile Dome Diaphragm
    - Wide Dispersion
    - Dual Rear Chamber
    - Vented Pole Piece




      Size:1.9 cm
      Fs:650 Hz
      Re:5.7 Ω
      Qt:0.57
      Sensitivity:89 dB
      VAS:0.01 ltr.
      Sd:3.8 cm²
      Bl:2.4 Tm

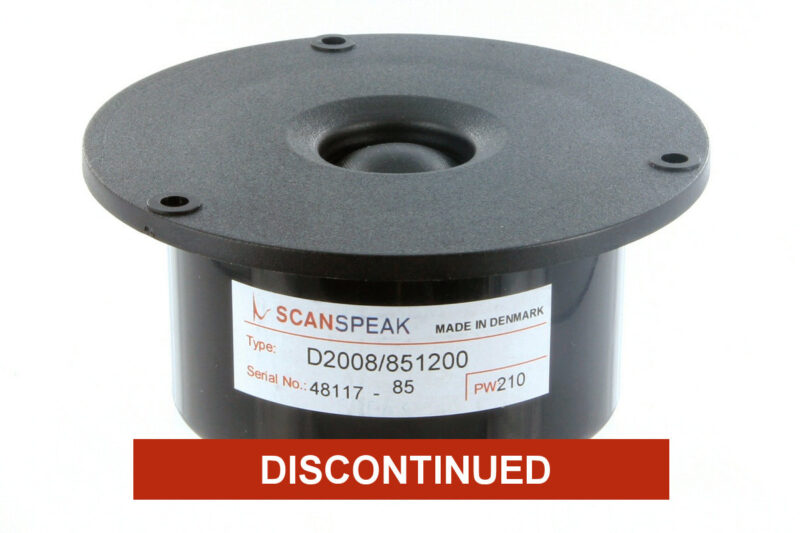

  • Tweeter

    D2008/851200


    - 3/4" Textile Dome Diaphragm
    - Wide Dispersion
    - Dual Rear Chamber
    - Ferro Fluid




      Size:1.9 cm
      Fs:800 Hz
      Re:5.7 Ω
      Qt:0.63
      Sensitivity:88 dB
      VAS:0.01 ltr.
      Sd:3.8 cm²
      Bl:2.4 Tm

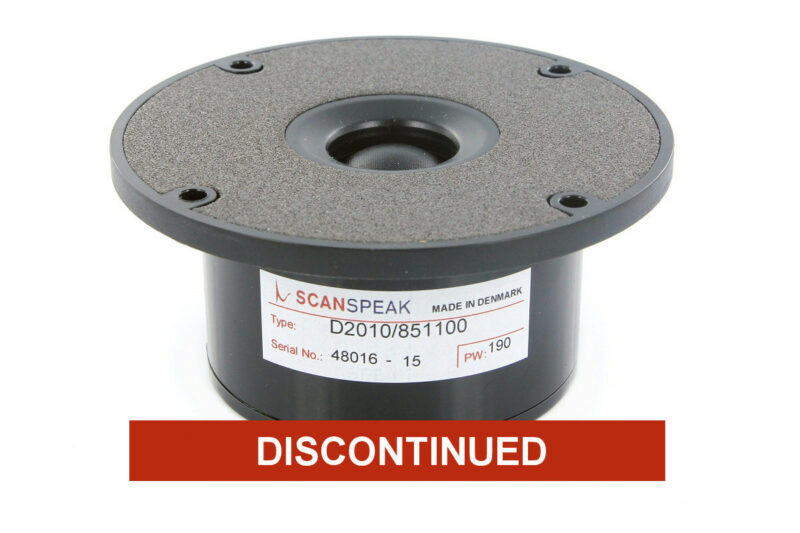

  • Tweeter

    D2010/851100


    - 3/4" Textile Dome Diaphragm
    - Wide Dispersion
    - Diffraction Damping Foam Front
    - Dual Rear Chamber




      Size:1.9 cm
      Fs:650 Hz
      Re:5.7 Ω
      Qt:0.57
      Sensitivity:89 dB
      VAS:0.01 ltr.
      Sd:3.8 cm²
      Bl:2.4 Tm

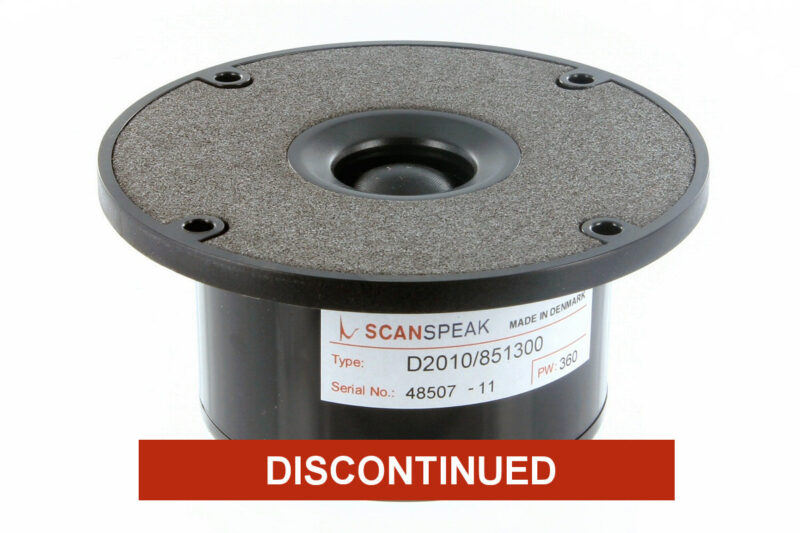

  • Tweeter

    D2010/851300


    - 3/4" Textile Dome Diaphragm
    - Wide Dispersion
    - Diffraction Damping Foam Front
    - Dual Rear Chamber
    - Ferro Fluid



      Size:1.9 cm
      Fs:800 Hz
      Re:5.7 Ω
      Qt:0.63
      Sensitivity:88 dB
      VAS:0.01 ltr.
      Sd:3.8 cm²
      Bl:2.4 Tm

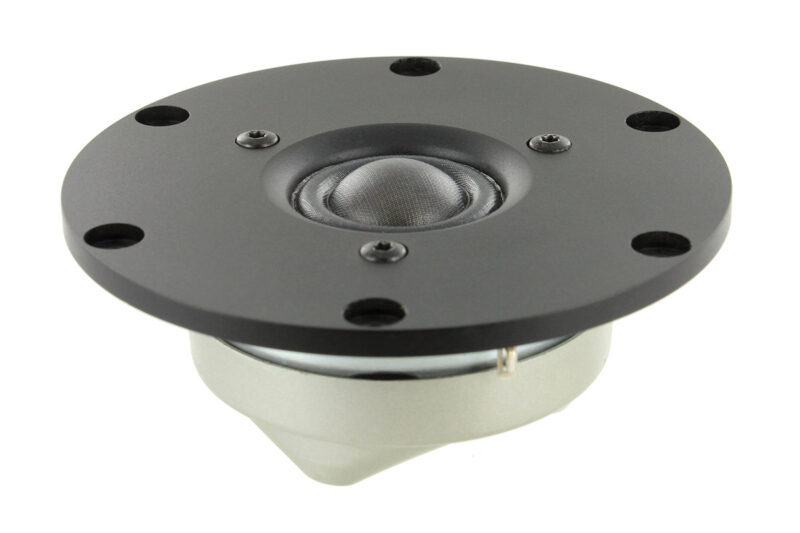

  • Tweeter

    D2104/712000


    - Patented Symmetrical Drive (SD-2) motor
    - Neodymium ring magnet system with double vent.
    - High frequency extension beyond 40kHz
    - Coated textile diaphragm w. large roll Surround
    - Back chamber with high consistency felt pads
    - Anodized Machined Alu Face Plate


      Size:1.9 cm
      Fs:500 Hz
      Re:2.8 Ω
      Qt:0.40
      Sensitivity:92 dB
      VAS:0.01 ltr.
      Sd:4.5 cm²
      Bl:2.0 Tm


  • Tweeter

    D2604/830000


    - High sensitivity - 92dB
    - Extended Frequency to Above 30KHz
    - Low Resonance Frequency - 630Hz
    - Low Distortion
    - Wide Dispersion
    - Textile Diaphragm, Wide Surround


      Size:2.6 cm
      Fs:630 Hz
      Re:2.8 Ω
      Qt:0.79
      Sensitivity:92 dB
      VAS:0.01 ltr.
      Sd:8 cm²
      Bl:2.2 Tm

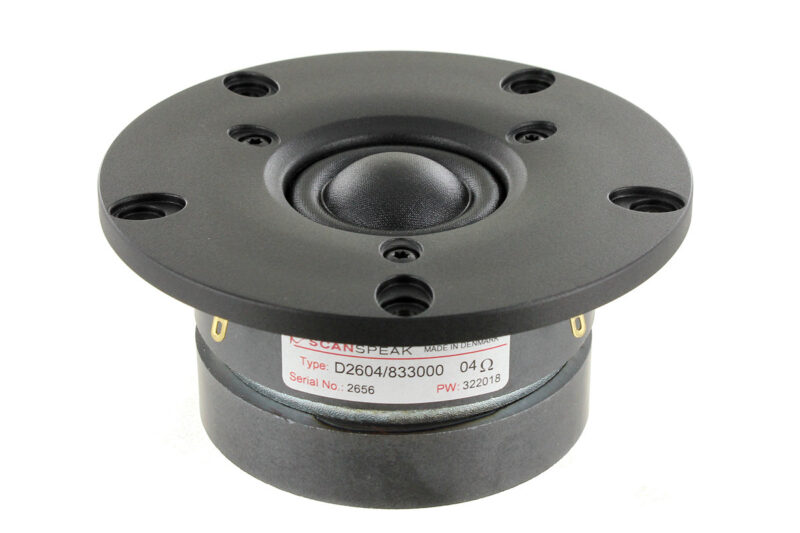

  • Tweeter

    D2604/833000


    - High sensitivity - 93dB
    - Extended Frequency to Above 40KHz
    - Low Resonance Frequency - 475Hz
    - Low Distortion
    - Wide Dispersion
    - Textile Diaphragm, wide Surround


      Size:2.6 cm
      Fs:475 Hz
      Re:2.8 Ω
      Qt:0.55
      Sensitivity:93 dB
      VAS:0.02 ltr.
      Sd:8 cm²
      Bl:2.2 Tm

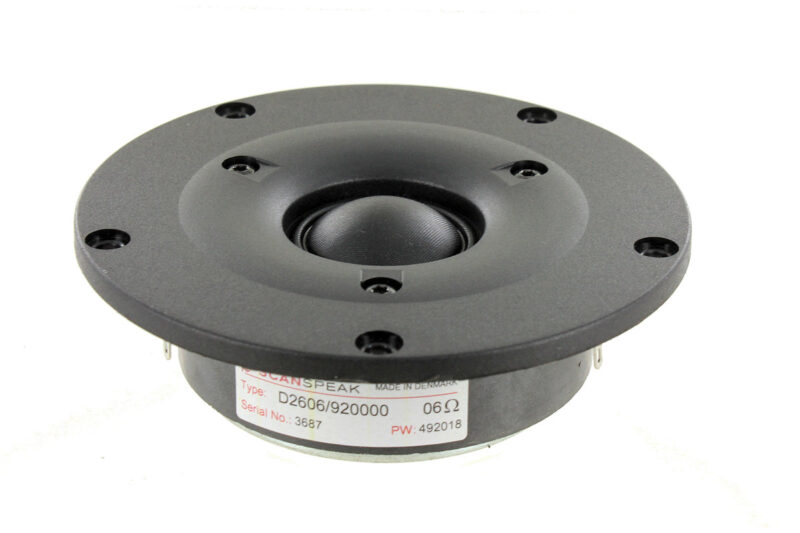

  • Tweeter

    D2606/920000


    - High Performance Tweeter
    - Coated Textile Diaphragm
    - Low Damping Ferrofluid Cooling
    - High Stability
    - Linear response faceplate, Neutral Design
    - Dampened Cavity in Pole Piece


      Size:2.6 cm
      Fs:1100 Hz
      Re:4.6 Ω
      Qt:0.84
      Sensitivity:91.5 dB
      VAS:0.01 ltr.
      Sd:7.1 cm²
      Bl:2.7 Tm
