R3004/662000

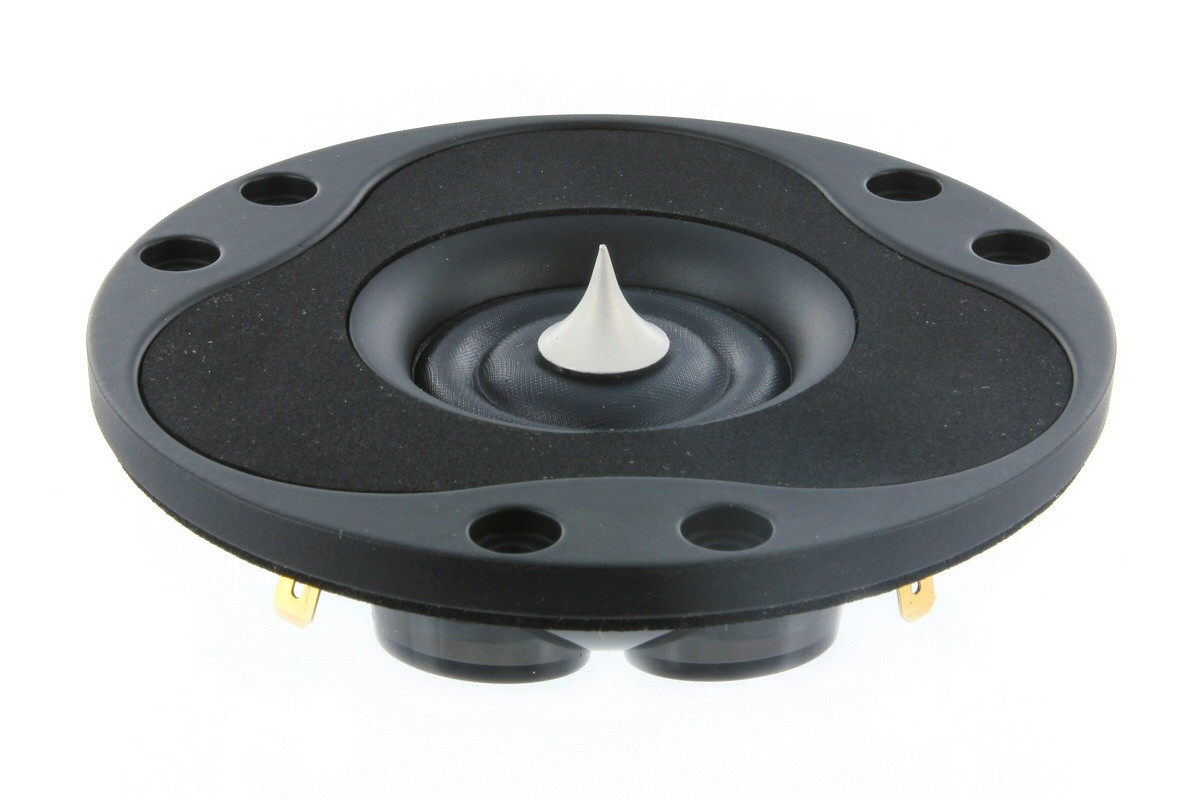

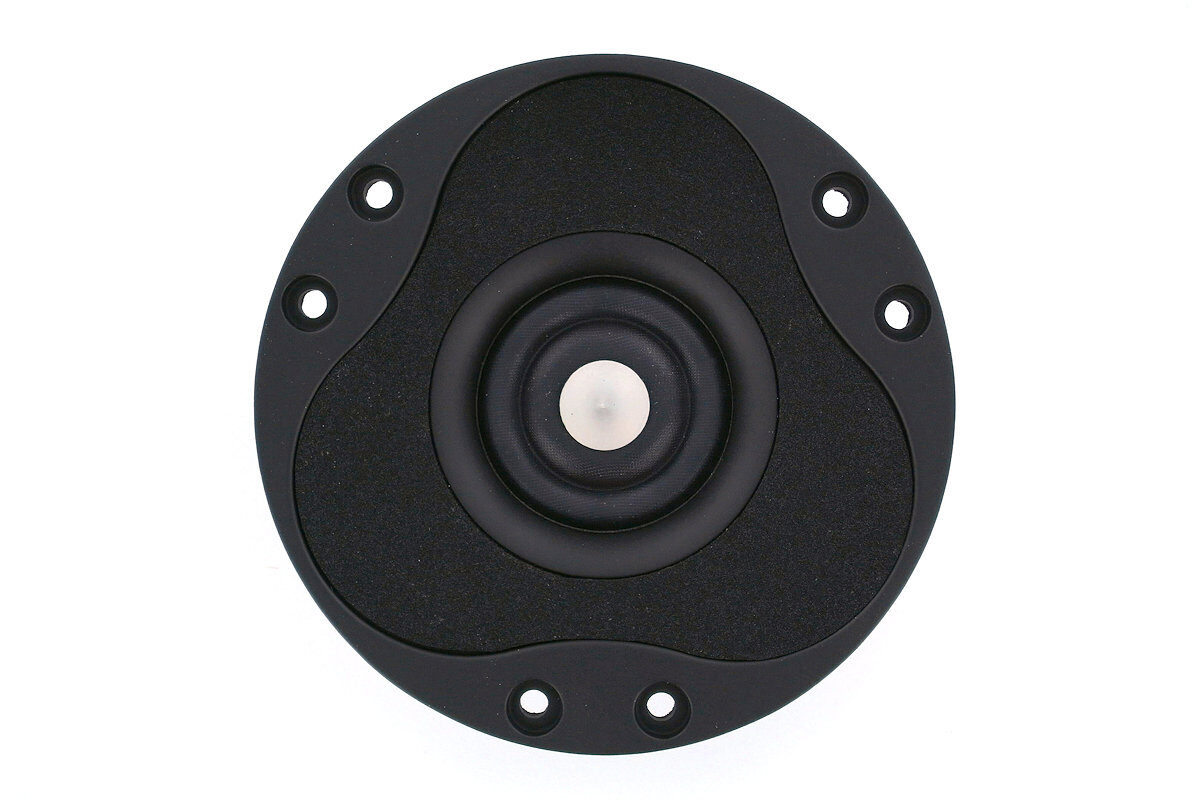

26mm Ring Radiator 4ohm, Neo, AirCirc, Clover

Category: Tags: ,

The Illuminator tweeters stand for superb vocal rendition and excellent imaging at all listening locations. With its large roll surround and textile diaphragm provide a flat frequency response to above 30KHz. The unique AirCirc Magnet System, and its rear chamber, results in elimination of reflections and resonances that compromise the performance of traditional motors.

Reviews:
Voice Coil, 03-2009

DIY Kits:
Ellam Flex (D3004/660000 or R3004/662000, 15W/8530K00)
Ellam FLEX 3W (D3004/660000 or R3004/662000, 15W/8530K00, 22W/4851T00)




Weight 0.5 kg
Product Families

Illuminator

Product Categories

Tweeter


- 1" Ring Dome Diaphragm
- Patented Phase Plug Design
- Patented Symmetrical Drive (SD-2) motor
- AirCirc Motor Design w. 6 Neo magnets
- Diffraction Damping Rubber Front
- Die Cast Rubber Painted Alu Face Plate

  Size:2.6 cm
  Fs:520 Hz
  Re:3 Ω
  Qt:0.48
  Sensitivity:90.5 dB
  VAS:0.01 ltr.
  Sd:5.6 cm²
  Bl:2.3 Tm
