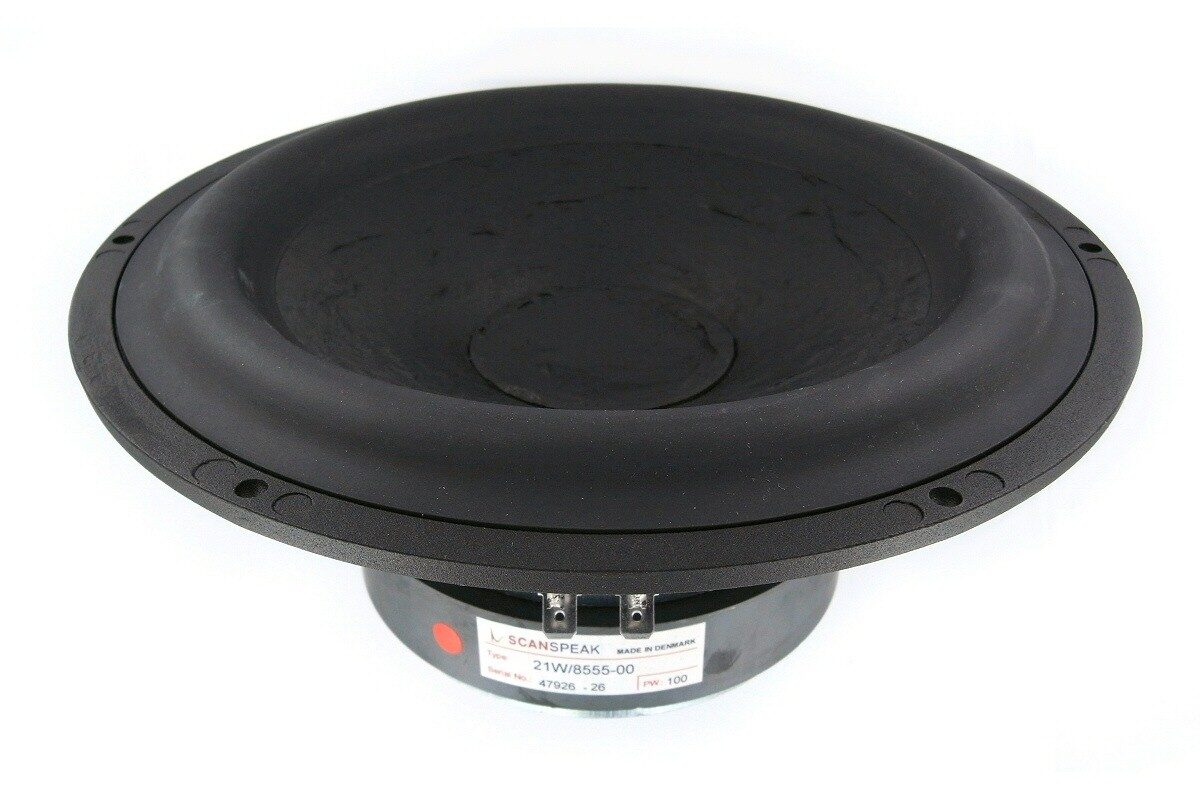

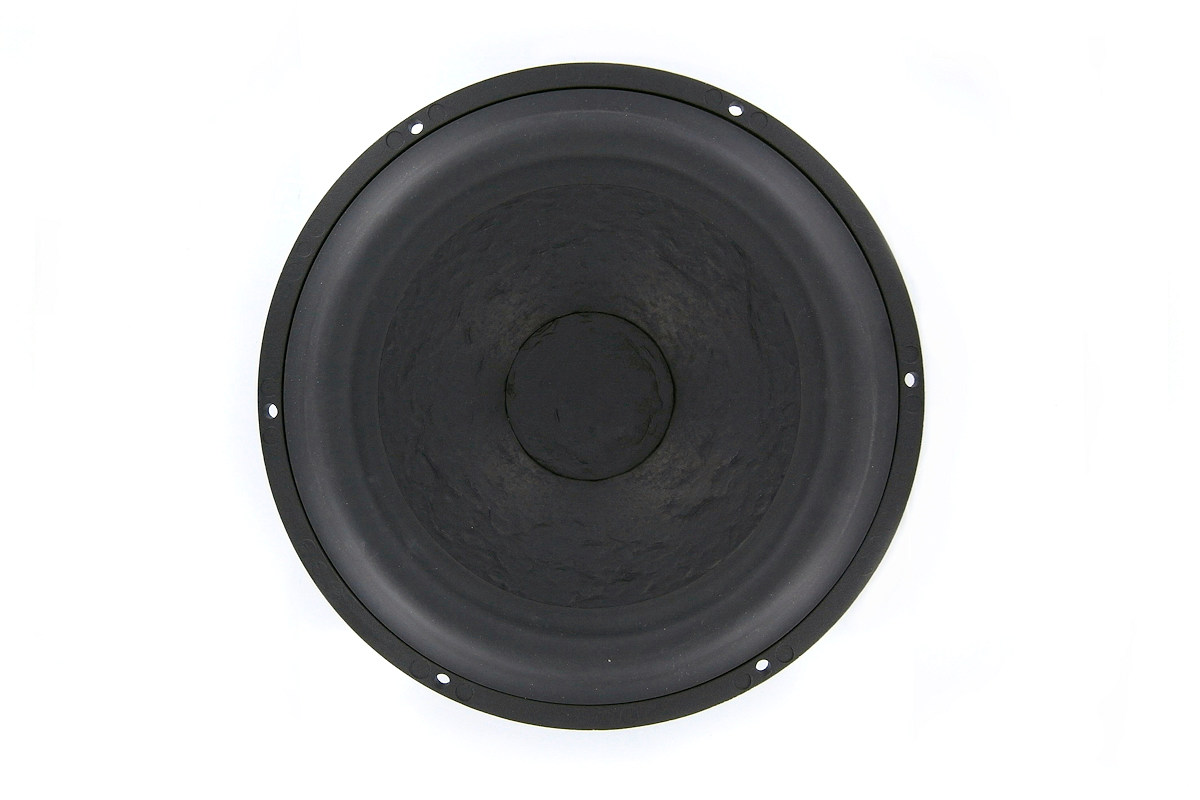

22cm Midwoofer 8ohm, Carbonfiber Paper Cone

Category: Tags: ,

The Symmetric Drive (SD-1) concept with copper in the magnet system was invented by Scan-Speak. High-quality magnet system design has thus been a key feature of Scan-Speak design since the companys inception. The Classic woofers are highly praised, and are used in some of the worlds most exceptional high-end loudspeakers. Some feature Kevlar cones, others have the innovative carbon fibre paper cones.




Weight 2.5 kg
Product Families


Product Categories


- Patented Symmetrical Drive Motor Design SD-1
- Die Cast Alu. Chassis
- Low-Loss linear suspension
- Air Dried Paper/Carbon Fibre Cone
- Low Damping SBR Rubber Surround
- 42mm Voice Coil

  Size:21 cm
  Fs:20 Hz
  Re:5.5 Ω
  Sensitivity:87 dB
  VAS:134 ltr.
  Sd:220 cm²
  Bl:8.2 Tm
