22W/8534G00

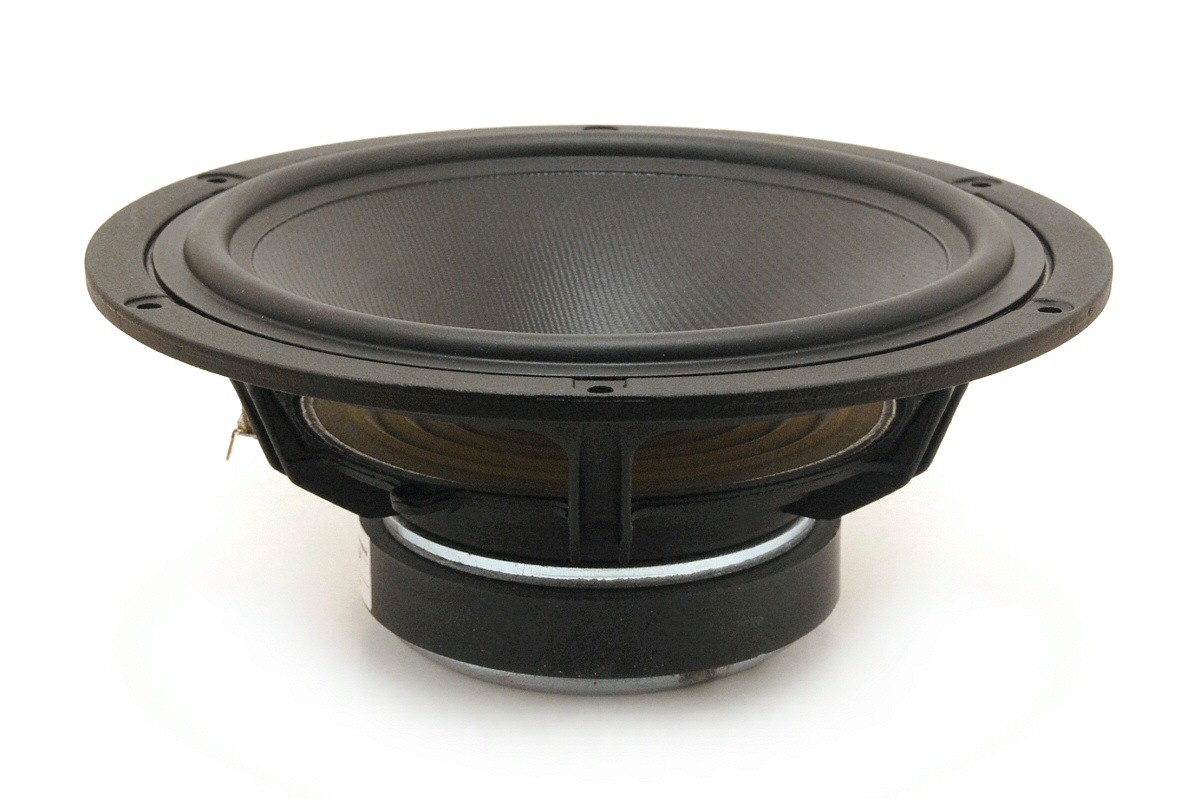

22cm Woofer 8ohm, Coated Fiberglass Cone, Ferrite Magnet, Alu Ring

Category: Tags: ,

The Discovery series offer traditional design, superior sound, a solid construction, and a wide range of variants. Combining these elements – plus a wealth of technical features and finesses – it gives our customers the possibility of acquiring a tailor-made Scan-Speak solution with very good performance at a reasonable low price point!

DIY Kits:
DISCOVERY-FOUR (R2604/833000, 18W/8535-01, 22W/8534G00, 26W/8534G00)
ScanSpeak Bookshelf-3WC (D2608/913000, 12W/8524G00, 22W/8534G00)
ScanSpeak Discovery-3WC-mkII (D2608/913000, 15W/8434G00, 22W/8534G00)
ScanSpeak Discovery 861 (D2608/913000, 18W/8434G00, 22W/8534G00)








Product Families

Discovery

Product Categories

Woofer


- High Output 89dB @ 2,83V
- Low Resonance Freq. 30Hz
- Coated NRSC Fibre Glass Cone
- Magnet System w. Alu Ring
- Low Damping SBR Rubber Surround
- Die cast Alu Chassis vented below spider

  Size:22 cm
  Fs:30 Hz
  Re:5.9 Ω
  Qt:0.39
  Sensitivity:89 dB
  VAS:94.2 ltr.
  Sd:235 cm²
  Bl:7.8 Tm
