Showing 1–9 of 33 results

  • Fullrange

    10F/4424G00


    - Very wide Frequency Range
    - High Sensitivity 90dB / 2.83V
    - Coated NRSC Fibre Glass Cone (patent)
    - SBR Rubber Surround
    - Compact Size, Neo magnet, Alu. Chassis
    - Copper Cap on Pole Piece


      Size:10 cm
      Fs:90 Hz
      Re:3.2 Ω
      Qt:0.29
      Sensitivity:90 dB
      VAS:2 ltr.
      Sd:36 cm²
      Bl:3.9 Tm


  • Fullrange

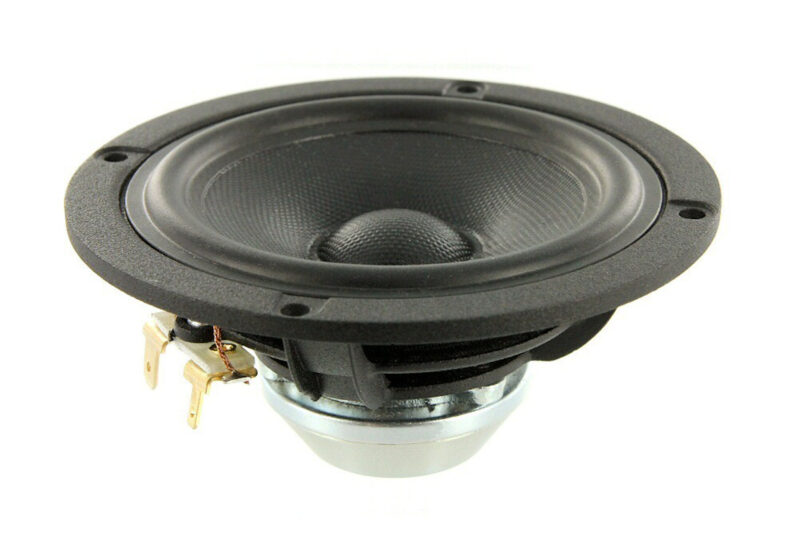

    10F/8414G10


    - Wide Frequency Range
    - Vented Alu. Chassis, SBR Rubber Surround
    - Compact Neo magnet Motor
    - High Sensitivity 86dB/2,83V
    - Copper Cap on Pole Piece
    - Coated NRSC Fibre Glass Cone (patent)


      Size:10 cm
      Fs:100 Hz
      Re:6.3 Ω
      Qt:0.51
      Sensitivity:86 dB
      VAS:1.57 ltr.
      Sd:36.3 cm²
      Bl:4.3 Tm


  • Fullrange

    10F/8424G00


    - Very wide Frequency Range
    - High Sensitivity 87dB / 2,83V
    - Coated NRSC Fibre Glass Cone (patent)
    - SBR Rubber Surround
    - Compact Size, Neo magnet, Alu. Chassis
    - Copper Cap on Pole Piece


      Size:10 cm
      Fs:90 Hz
      Re:5.8 Ω
      Qt:0.37
      Sensitivity:86.5 dB
      VAS:2.1 ltr.
      Sd:36 cm²
      Bl:4.8 Tm


  • Midwoofer

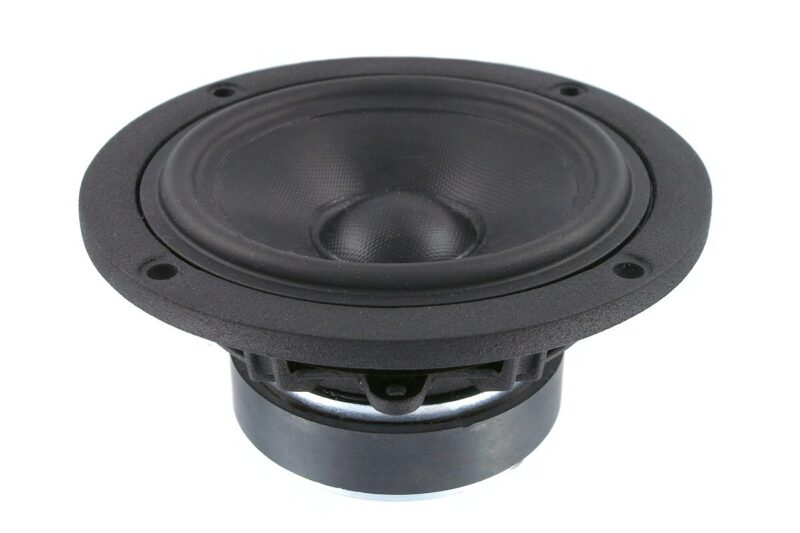

    12W/4524G00


    - Wide Operating Frequency Range
    - Suitable for 2-way or 3-way (as midrange)
    - Coated NRSC Fibre Glass Cone (patent)
    - Low Damping SBR Rubber Surround
    - Die cast Alu Chassis vented below spider



      Size:12 cm
      Fs:50 Hz
      Re:3.1 Ω
      Qt:0.27
      Sensitivity:89 dB
      VAS:8.2 ltr.
      Sd:59 cm²
      Bl:4.4 Tm


  • Midwoofer

    12W/8524G00


    - Wide Operating Frequency Range
    - Suitable for 2-way or 3-way (as midrange)
    - Coated NRSC Fibre Glass Cone (patent)
    - Low Damping SBR Rubber Surround
    - Die cast Alu Chassis vented below spider



      Size:12 cm
      Fs:52 Hz
      Re:5.7 Ω
      Qt:0.32
      Sensitivity:86 dB
      VAS:8.2 ltr.
      Sd:59 cm²
      Bl:5.4 Tm


  • Midrange

    15M/4624G00


    - High Output 92,5dB @ 2,83V
    - Phase Plug for Improved Phase Linearity
    - Coated NRSC Fibre Glass Cone
    - Very Low Damping Foam Surround (Coated)
    - Die cast Alu Chassis vented below spider
    - Magnet System w. Alu Ring


      Size:15 cm
      Fs:100 Hz
      Re:3.2 Ω
      Qt:0.43
      Sensitivity:92.5 dB
      VAS:3.7 ltr.
      Sd:80 cm²
      Bl:5.3 Tm


  • Midwoofer

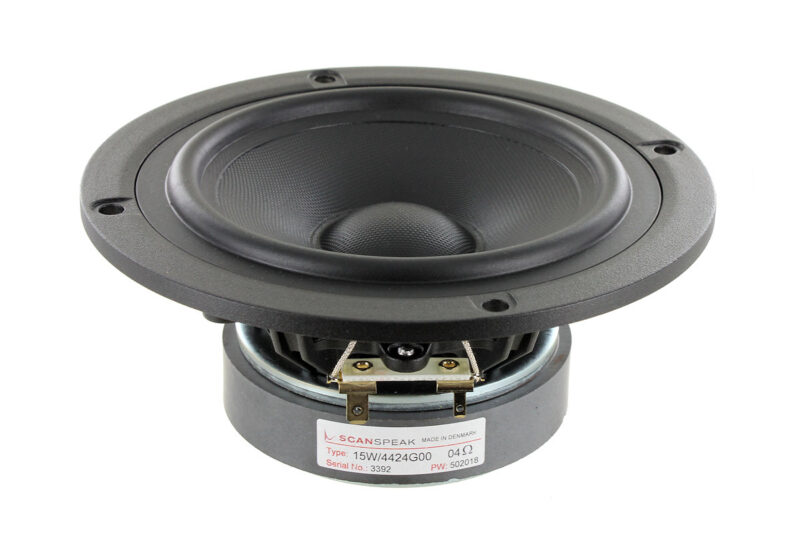

    15W/4424G00


    - High Output 90,5dB @ 2,83V
    - Excellent Midrange Performance
    - Coated NRSC Fibre Glass Cone
    - Low Damping SBR Rubber Surround
    - Die cast Alu Chassis vented below spider



      Size:15 cm
      Fs:44 Hz
      Re:2.9 Ω
      Qt:0.21
      Sensitivity:90.5 dB
      VAS:14.5 ltr.
      Sd:80 cm²
      Bl:5.4 Tm


  • Midwoofer

    15W/4434G00


    - High Output 90dB @ 2,83V
    - Coated NRSC Fibre Glass Cone
    - Magnet System w. Alu Ring
    - Low Damping SBR Rubber Surround
    - Die cast Alu Chassis vented below spider



      Size:15 cm
      Fs:43 Hz
      Re:3 Ω
      Qt:0.21
      Sensitivity:89.5 dB
      VAS:12.8 ltr.
      Sd:80 cm²
      Bl:5.9 Tm


  • Midwoofer

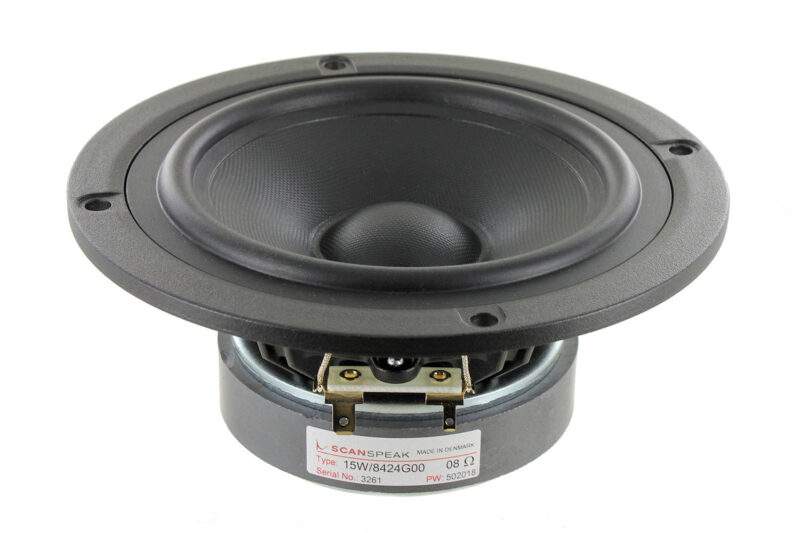

    15W/8424G00


    - Excellent Midrange Performance
    - Coated NRSC Fibre Glass Cone
    - Low Damping SBR Rubber Surround
    - Die cast Alu Chassis vented below spider




      Size:15 cm
      Fs:46 Hz
      Re:5.5 Ω
      Qt:0.25
      Sensitivity:87.5 dB
      VAS:14.5 ltr.
      Sd:80 cm²
      Bl:6.6 Tm
