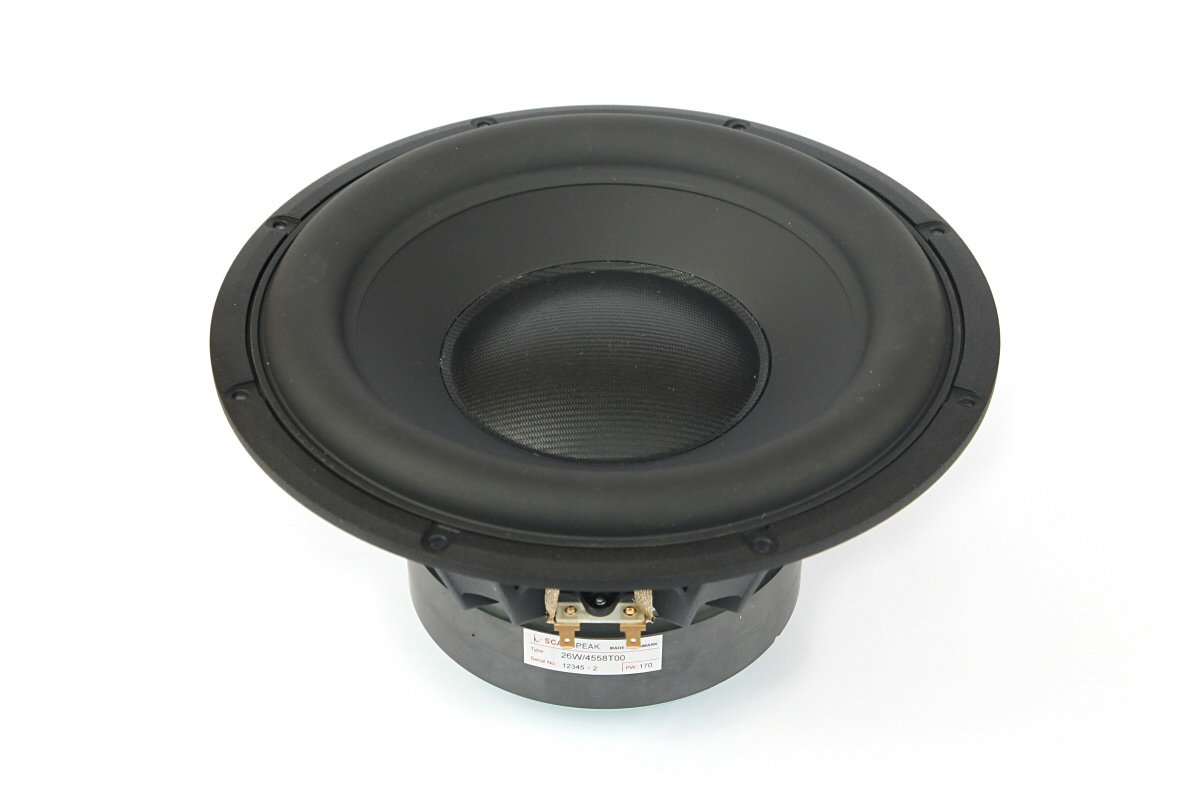

26cm Subwoofer 4ohm, Alu Cone, Double Ferrite Magnet

Category: Tags: ,

The Discovery series offer traditional design, superior sound, a solid construction, and a wide range of variants. Combining these elements – plus a wealth of technical features and finesses – it gives our customers the possibility of acquiring a tailor-made Scan-Speak solution with very good performance at a reasonable low price point!

Voice Coil, 02-2011




Weight 6.5 kg
Product Families


Product Categories


- 56mm Peak Excursion, 25mm Linear
- High Output 88dB @ 2,83V
- Low Resonance Freq. 21Hz

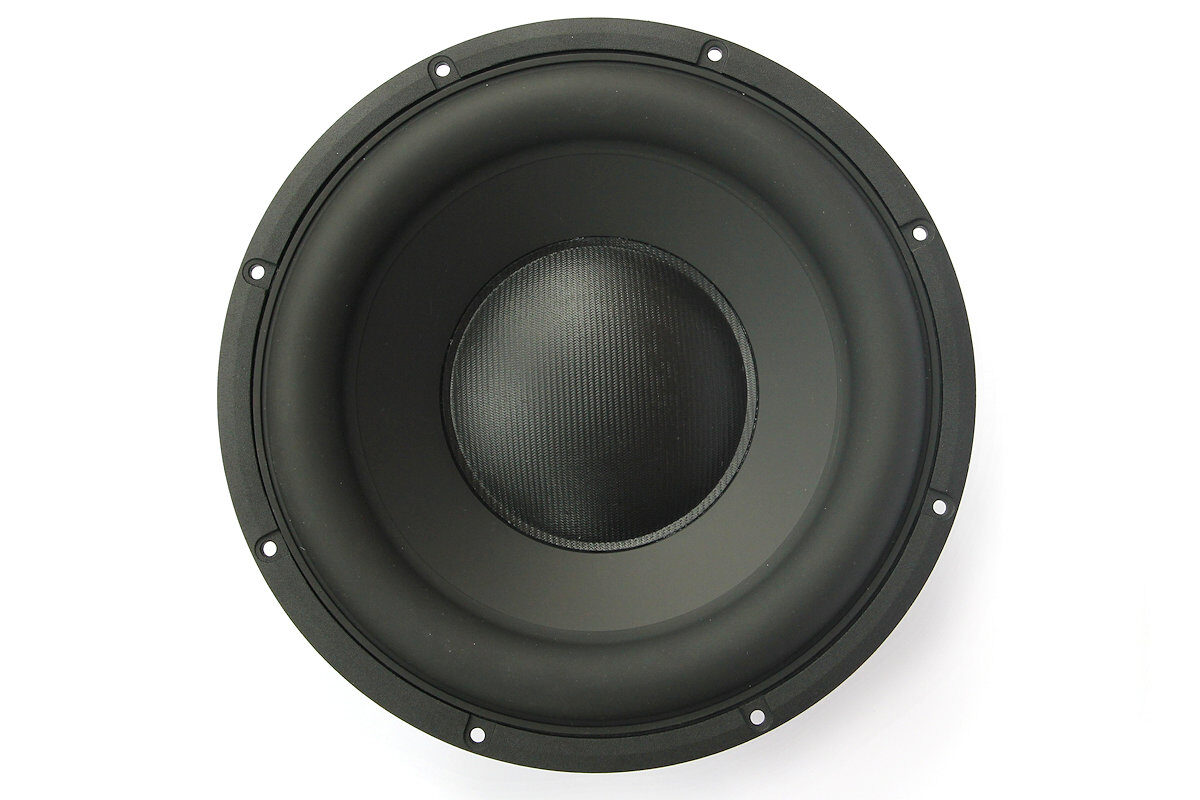

- Anodized Alu Cone, Fibre Glass Dust Cap
- Magnet System w. Alu Ring
- Die cast Alu Chassis vented below spider

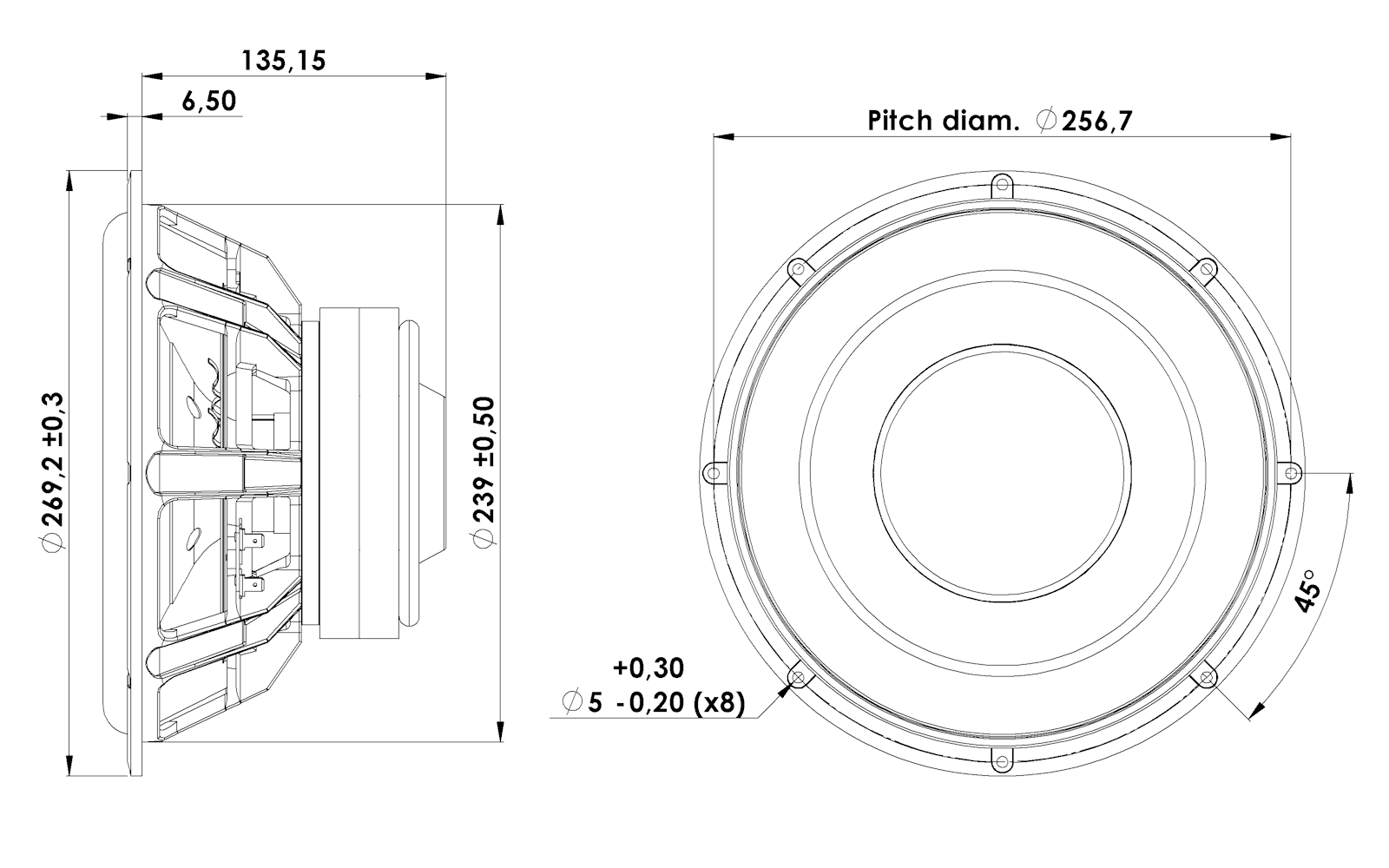

  Size:26 cm
  Fs:21 Hz
  Re:2.6 Ω
  Sensitivity:88 dB
  VAS:94.9 ltr.
  Sd:352 cm²
  Bl:10.5 Tm
