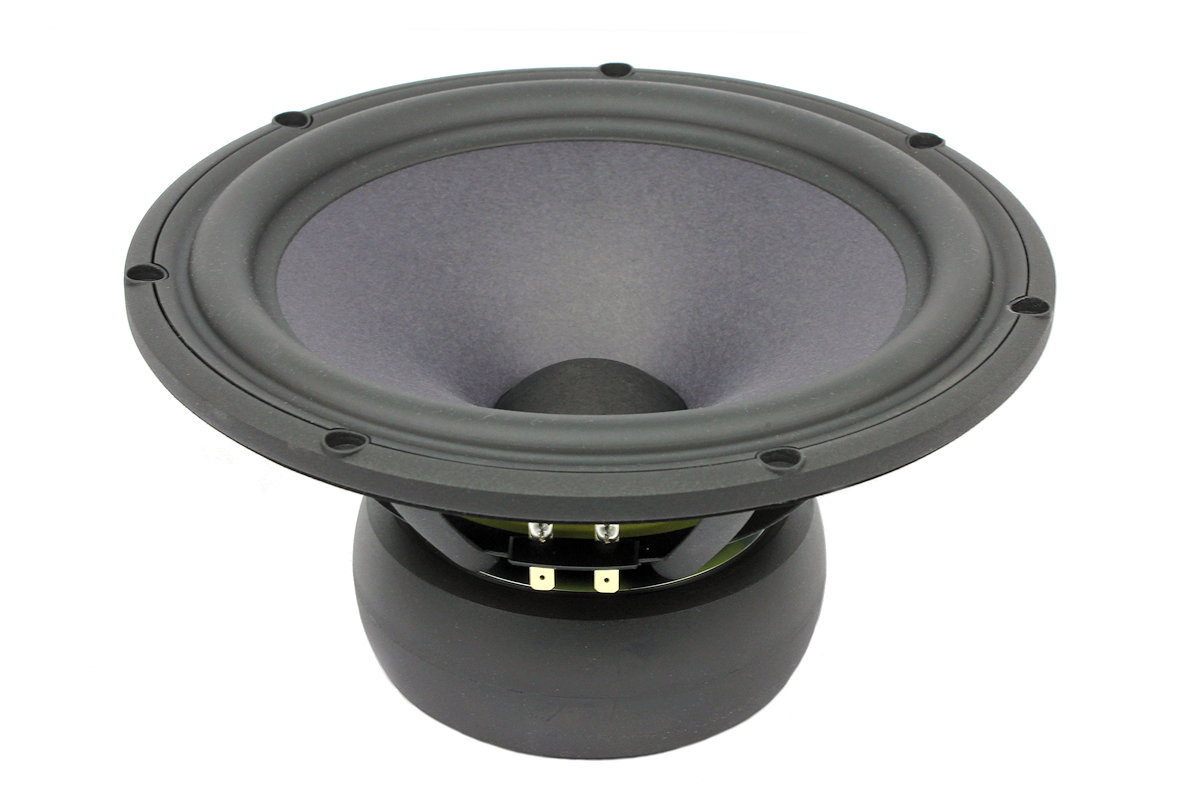

26W/8861T00

26cm Woofer 8ohm, Rigid Paper Cone, Ferrite Magnet

Category: Tags: ,

The Revelator woofers and subwoofers features very rigid cones in paper or aluminium that operates as a piston over a wide frequency range, in combination with Scan-Speaks low-loss linear suspension and the patented Symmetrical Drive (SD-1) it results in very low distortion and a smooth and well behaved frequency response as well as perfect transient reproduction.

DIY Kits:
Jenzen Illuminator (D3004/660000, 18WU/8741T00, 26W/8861T00)
Jensen 1071 (D2905/990000, 18W/8531G00, 26W/8861T00)
Illuminator 4 (D2904/710003, 18WU/8741T00, 22W/8851T00, 26W/8861T00)
Illuminator 5 (D3004/602010, 12MU/8731T00, 18WU/8741T00, 22W/8851T00, 26W/8861T00)






Weight 4 kg
Product Families

Revelator

Product Categories

Woofer


- Patented Symmetrical Drive Motor Design
- Rigid Paper Cone
- Low-Loss linear suspension
- Low Damping SBR Rubber Surround
- Die cast Alu Chassis vented below spider
- Ferrite Magnet System w. Rubber Boot

  Size:26 cm
  Fs:19 Hz
  Re:6.2 Ω
  Qt:0.31
  Sensitivity:88.5 dB
  VAS:231 ltr.
  Sd:320 cm²
  Bl:9.9 Tm
