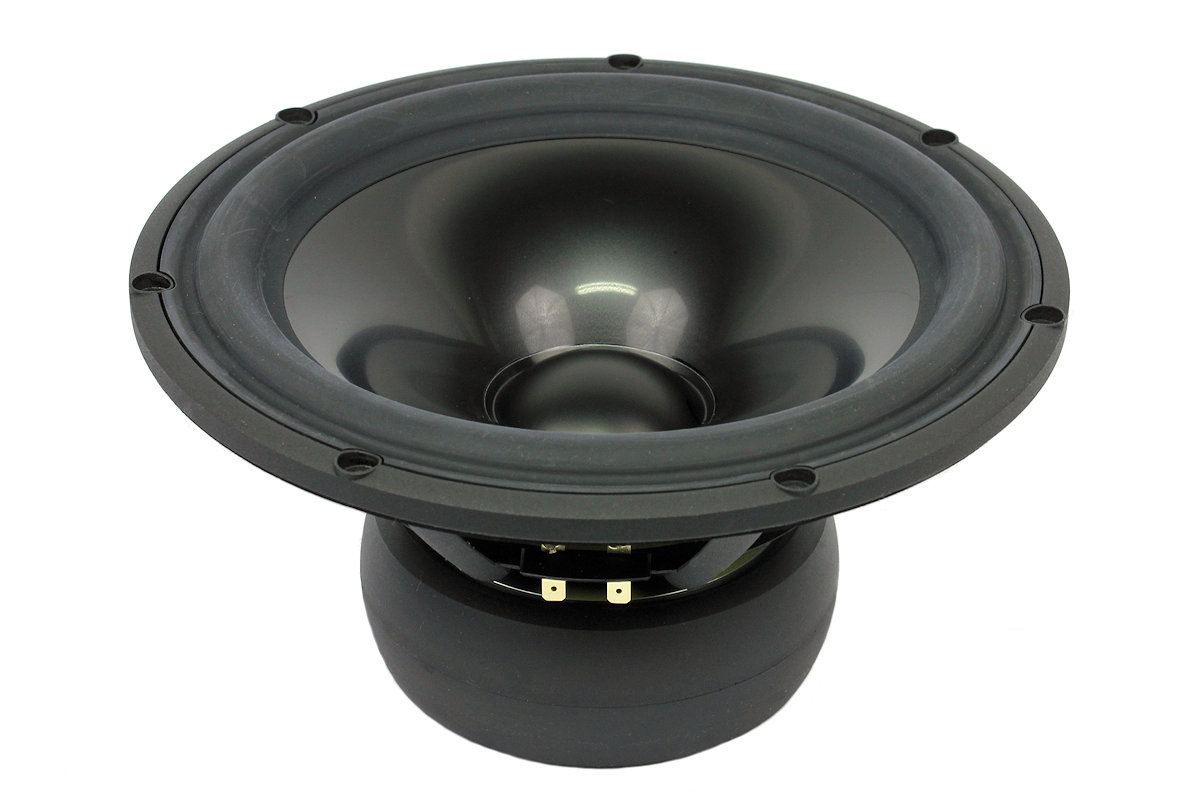

26cm Woofer 8ohm, Alu Cone, Ferrite Magnet

Category: Tags: ,

The Revelator woofers and subwoofers features very rigid cones in paper or aluminium that operates as a piston over a wide frequency range, in combination with Scan-Speaks low-loss linear suspension and the patented Symmetrical Drive (SD-1) it results in very low distortion and a smooth and well behaved frequency response as well as perfect transient reproduction.




Weight 4 kg
Product Families


Product Categories


- Patented Symmetrical Drive Motor Design
- Rigid Black Anodized Alu Cone
- Low-Loss linear suspension
- Low Damping SBR Rubber Surround
- Die cast Alu Chassis vented below spider
- Ferrite Magnet System w. Rubber Boot

  Size:26 cm
  Fs:19 Hz
  Re:5.8 Ω
  Sensitivity:87 dB
  VAS:176 ltr.
  Sd:320 cm²
  Bl:11.2 Tm
