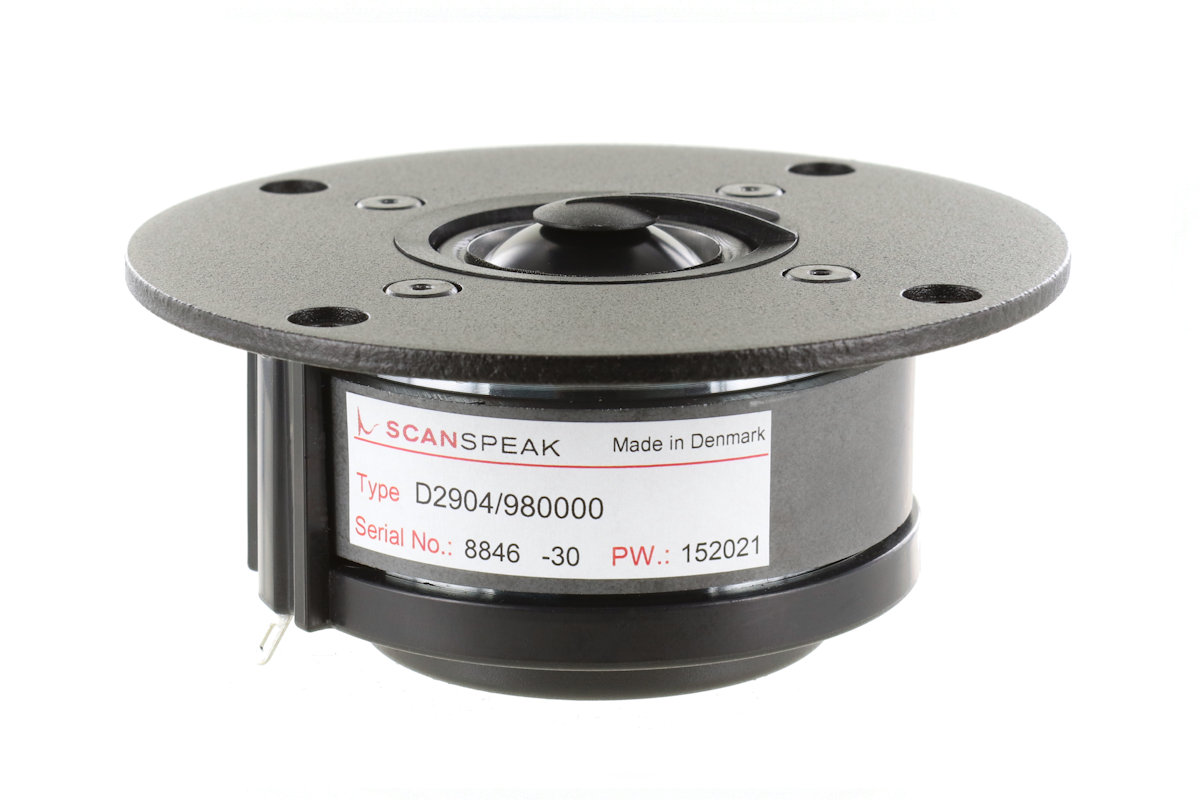

D2904/980000

28mm Alu Dome Tweeter 4ohm, Ferrite Magnet, Waveguide

Category: Tags: ,

The Classic tweeters are among the many highly praised designs in Classic series. They have enjoyed success over 3 decades. And still among the best tweeters available. The D2905/9000 tweeter kick-started a new era with a line of very high quality 1” tweeters, today known as -9300, -9500, -9700 and -9800. Despite their many years on the marked still used in many top High-End speakers around the world.

DIY Kits:
Ellam 98 mkII (D2904/980000, 15W/8530-K00)
Ellam Dappo (R2604/832000 / D2904/980000, 15W/8530-K00)




Weight 0.9 kg
Product Families

Classic

Product Categories

Tweeter


- 1" Aluminium Dome Diaphragm
- Wave Guide
- Patented Symmetrical Drive (SD) motor
- Low Resonance Rear Chamber
- Black Painted Alu Face Plate


  Size:2.8 cm
  Fs:500 Hz
  Re:3.5 Ω
  Qt:0.66
  Sensitivity:88 dB
  VAS:0.02 ltr.
  Sd:8.5 cm²
  Bl:2.8 Tm
