D3004/602000

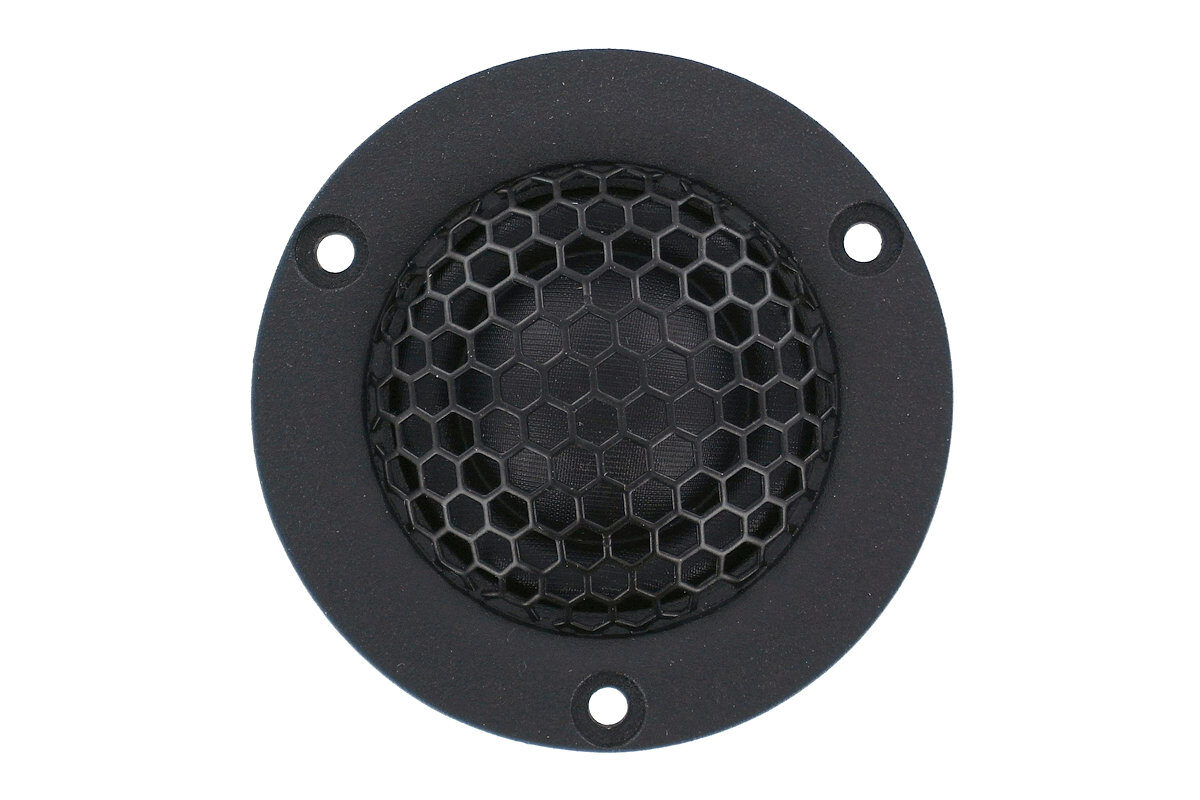

26mm Dome Tweeter 4ohm, Neo Magnet, Small Chamber, Grill

Category: Tags: ,

The compact size is one of the key elements of these Illuminator tweeters, which provides a high degree of flexibility within design options. The small size is employed without compromising sound quality where these compact tweeters are fully comparable to the renowned full size Illuminator and Revelator tweeters, no matter if the music is played at high or low listening levels.

Reviews:
Voice Coil, 01-2009
Car & HiFi (GER), 01-2010




Weight 0.35 kg
Product Families

Illuminator

Product Categories

Tweeter


- 1" Textile Dome Diamphragm
- Large Roll Surround f. Wide Dispersion
- Patented Symmetrical Drive (SD-2) motor
- Sound Transparant Protective Grill
- Non Resonant Alu Rear Chamber
- Die Cast Housing & Face Plate

  Size:2.6 cm
  Fs:700 Hz
  Re:3 Ω
  Qt:1.15
  Sensitivity:89 dB
  VAS:0.01 ltr.
  Sd:7 cm²
  Bl:1.7 Tm
