D3004/604010

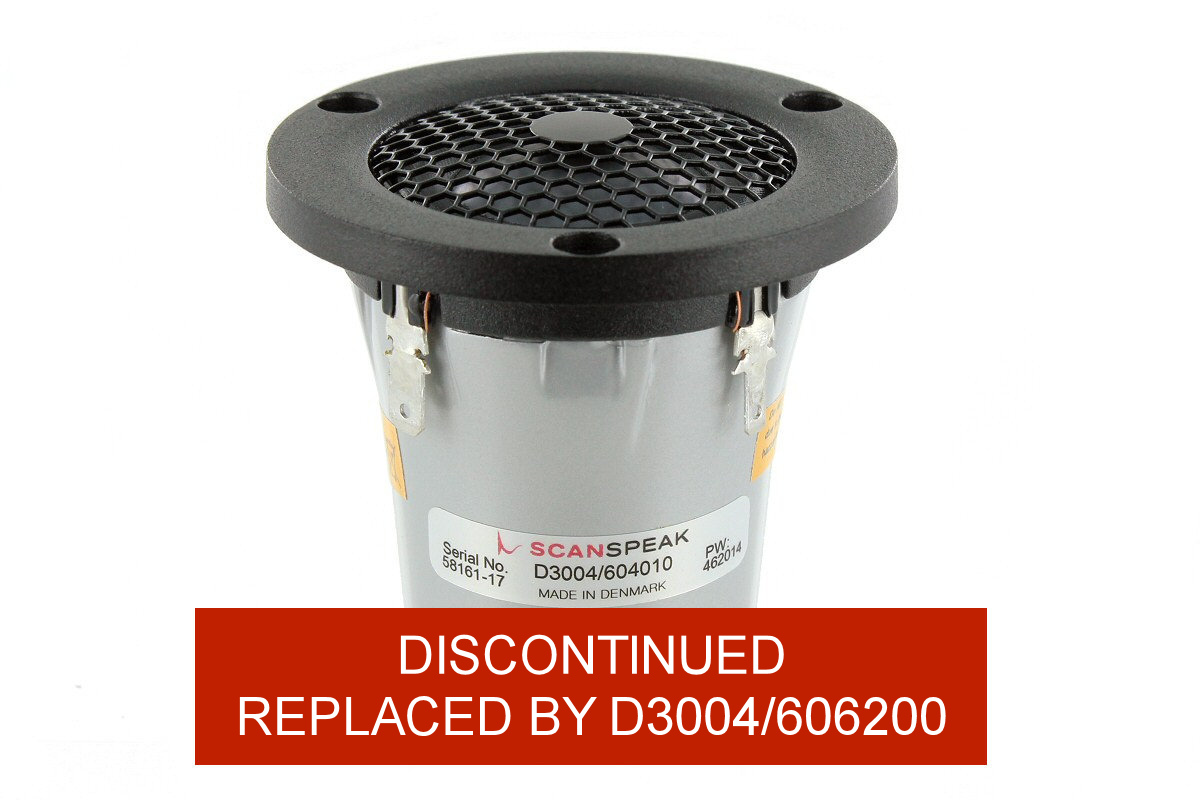

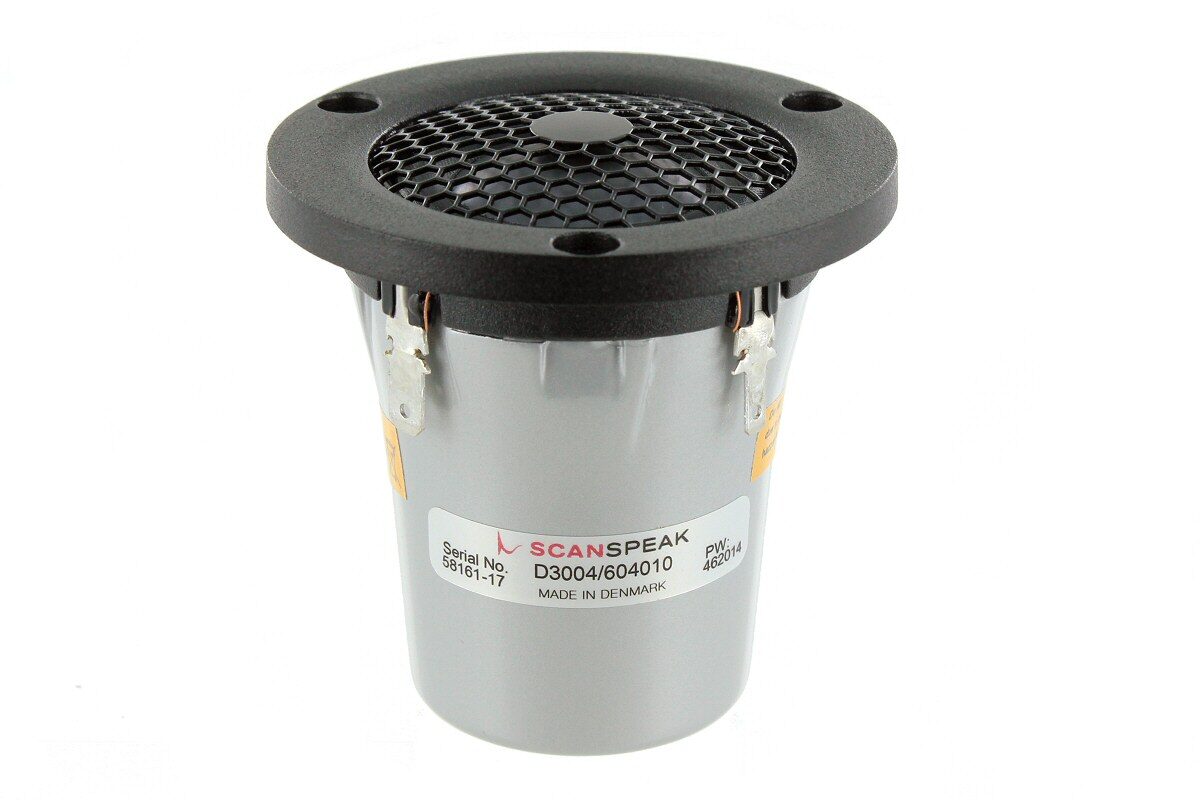

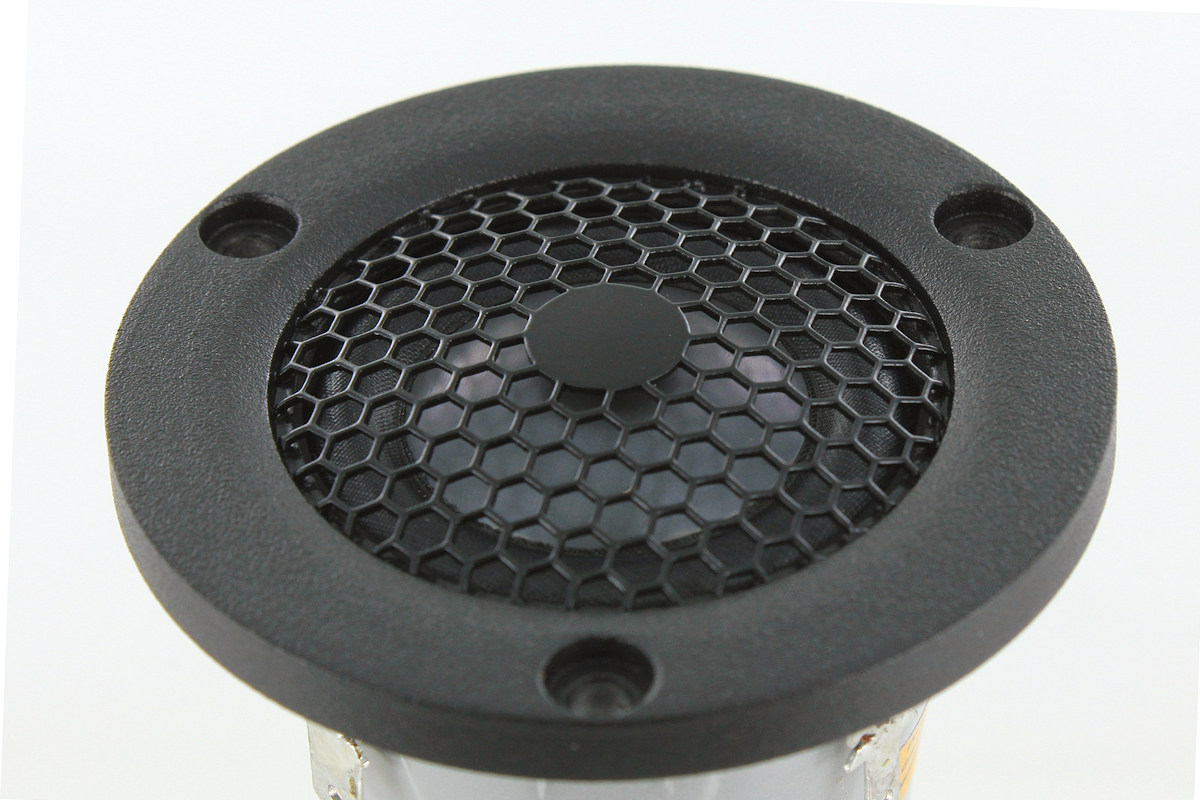

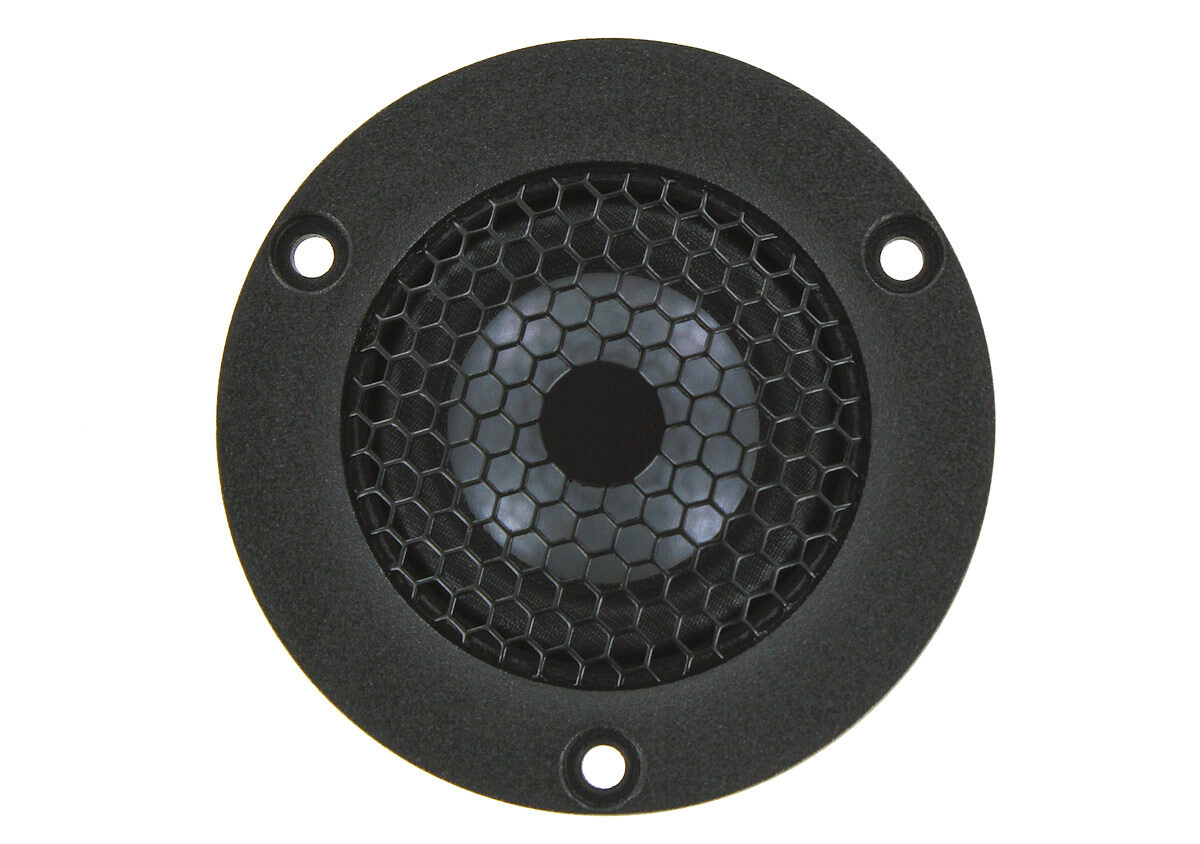

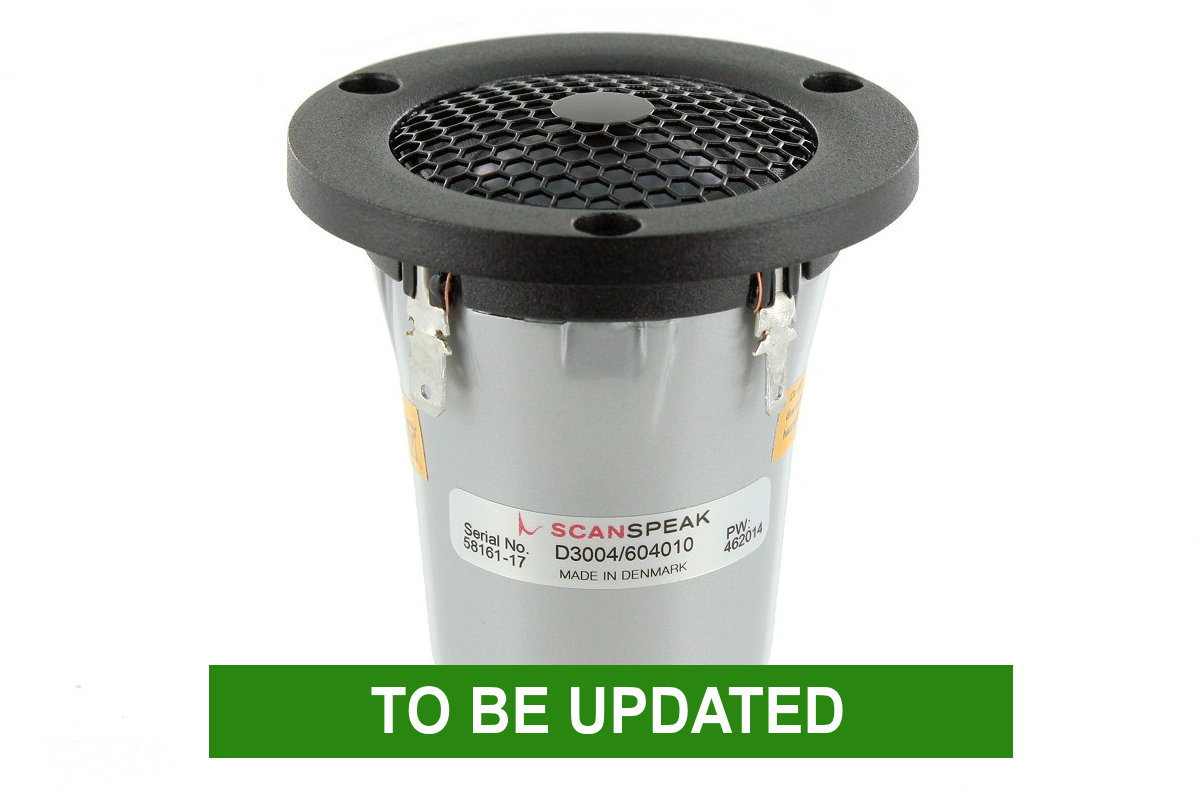

26mm Beryllium Dome Tweeter 4ohm, Neo, Large Chamber, Grill
Temporarily unavailable: Please see newsletter – Click here.

Category: Tags: ,

This 1” compact Illuminator beryllium tweeter is an example of a big sound in a small body. As beryllium is a material characterised by great stiffness, light weight and high damping, the beryllium diaphragm offers all the properties required to reproduce excellent sound. And indeed, the 1” tweeter sounds great. It has a very low distortion and a distinct clarity that brings out the best in all types of music.
Download Beryllium Information Datasheet

Reviews:
Voice Coil, 05-2016

DIY Kits:
Illuminator 5 (D3004/604010, 12MU/8731T00, 18WU/8741T00, 22W/8851T00, 26W/8861T00)






Product Families

Illuminator

Product Categories

Tweeter


- 1" Beryllium diaphragm (99% pure BE)
- Patented symetrical drive (SD-2) motor
- Large non resonant aluminium enclosure
- Large roll surround f. wide dispersion
- Sound transparant protective grill
- Applicable for HiFi and automotive

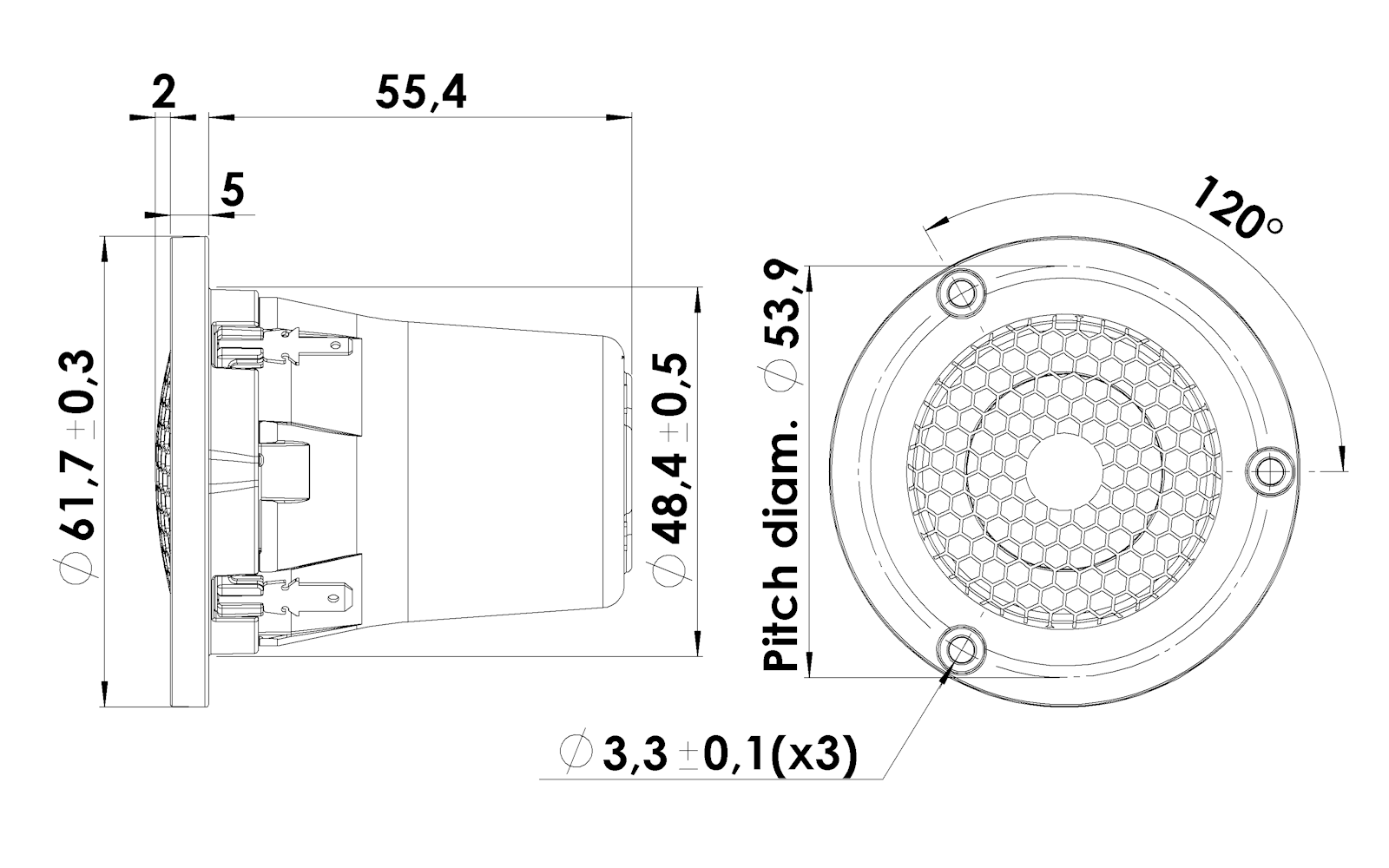

  Size:2.6 cm
  Fs:450 Hz
  Re:3 Ω
  Qt:0.7
  Sensitivity:90.5 dB
  VAS:0.03 ltr.
  Sd:7 cm²
  Bl:1.7 Tm
