D3004/660000

26mm Dome Tweeter 4ohm, Neo, AirCirc

Category: Tags: ,

The Illuminator tweeters stand for superb vocal rendition and excellent imaging at all listening locations. Its large roll surround and textile dome diaphragm provides a flat frequency response to above 30KHz with outstanding off-axis dispersion. The unique AirCirc Magnet System, and its rear chamber, results in elimination of reflections and resonances that compromise the performance of traditional motors.

DIY Kits:
Jenzen Illuminator (D3004/660000, 18WU/8741T00, 26W/8861T00)
Ellam FLEX 3W (D3004/660000 or R3004/662000, 15W/8530K00, 22W/4851T00)
Ellam Flex (D3004/660000 or R3004/662000, 15W/8530K00)
Illumina 66 (D3004/660000, 18WU/4741T00)




Weight 0.5 kg
Product Families

Illuminator

Product Categories

Tweeter

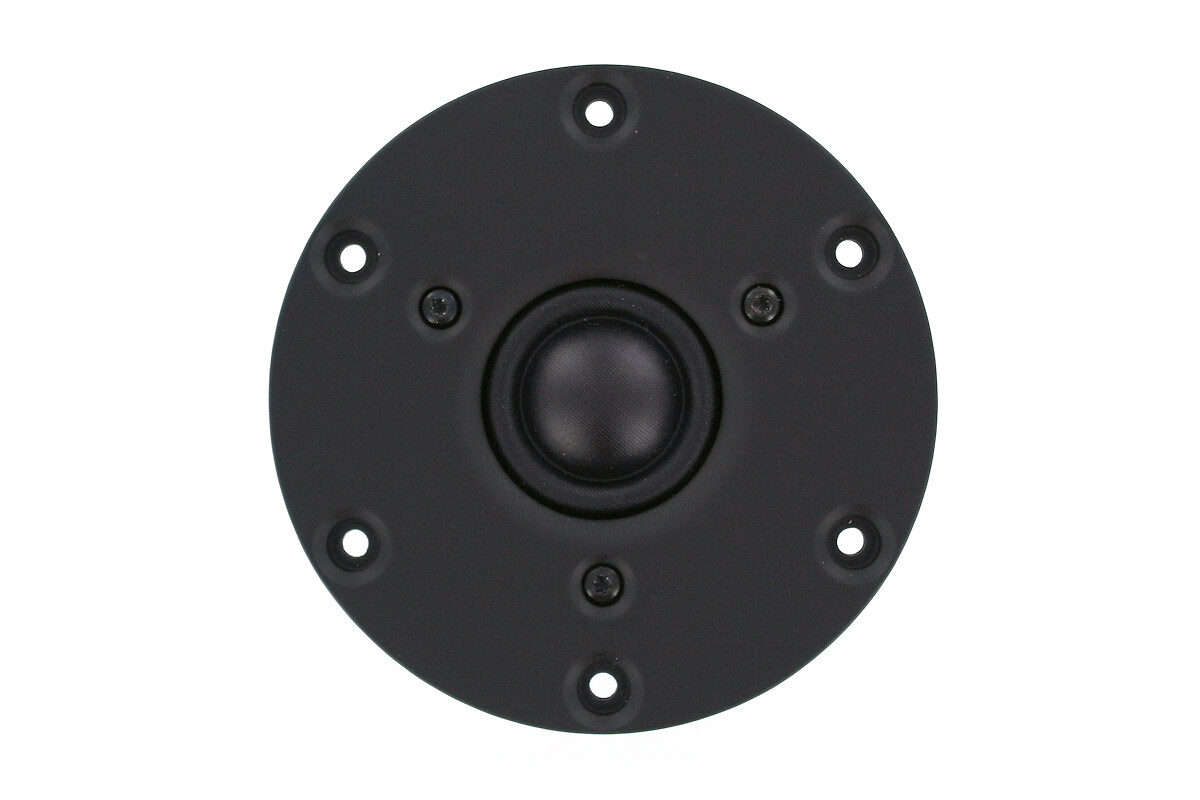

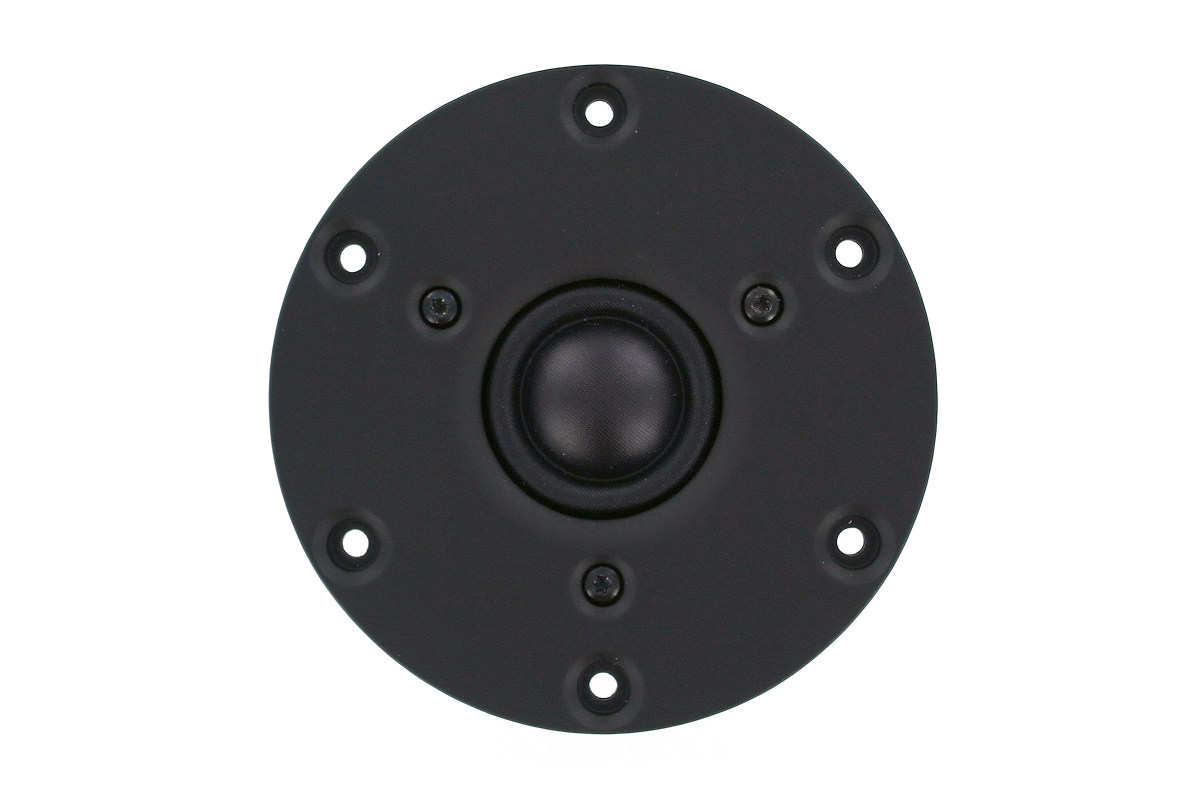

- 1" Textile Dome Diaphragm
- Large Roll Surround f. Wide Dispersion
- Patented Symmetrical Drive (SD-2) motor

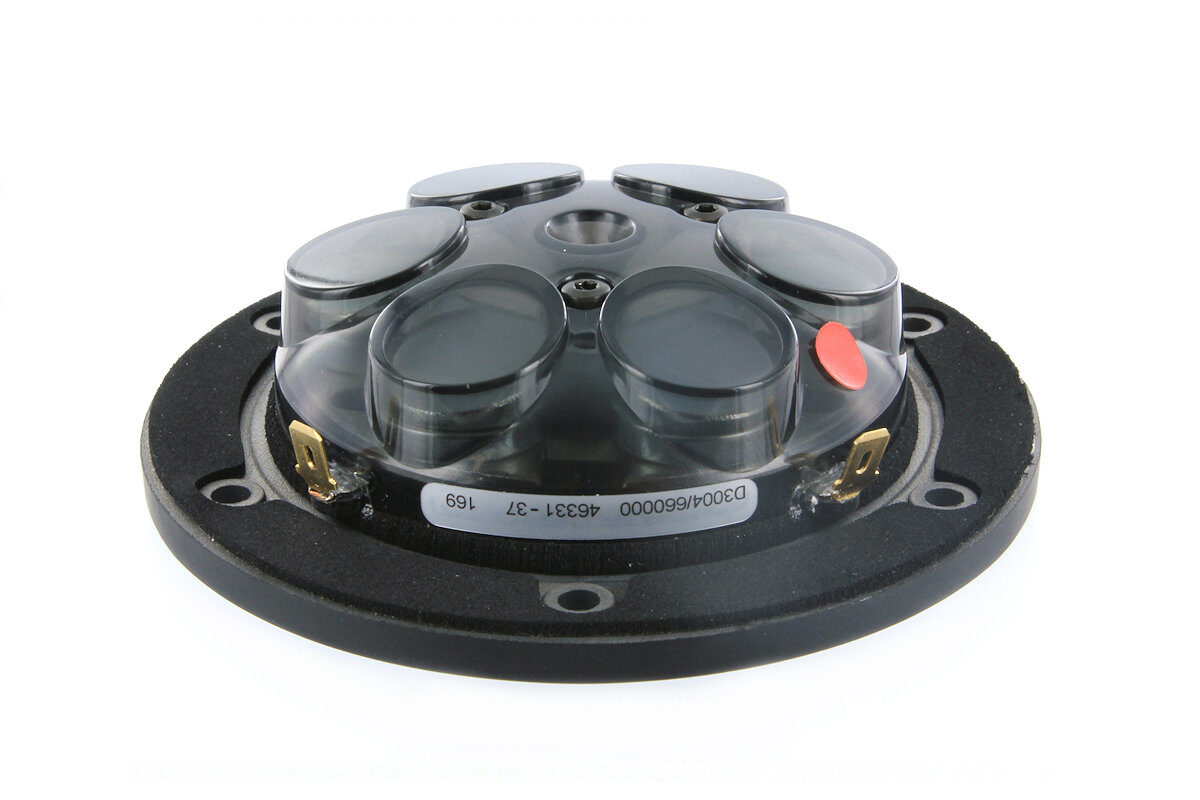

- AirCirc Motor Design w. 6 Neo magnets
- Die Cast Rubber Painted Alu Face Plate

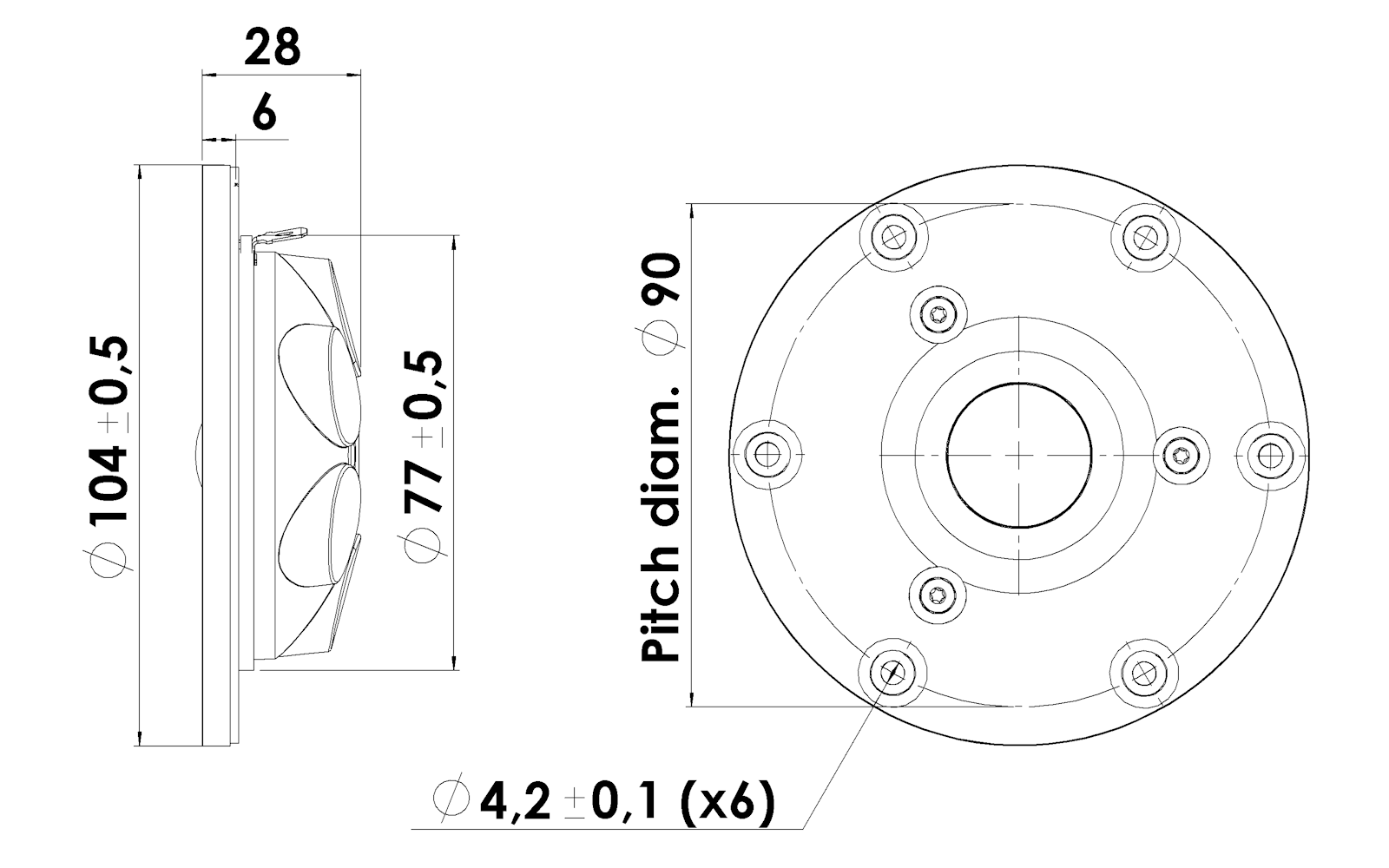

  Size:2.6 cm
  Fs:470 Hz
  Re:3 Ω
  Qt:0.49
  Sensitivity:91.5 dB
  VAS:0.02 ltr.
  Sd:6.9 cm²
  Bl:2.3 Tm
