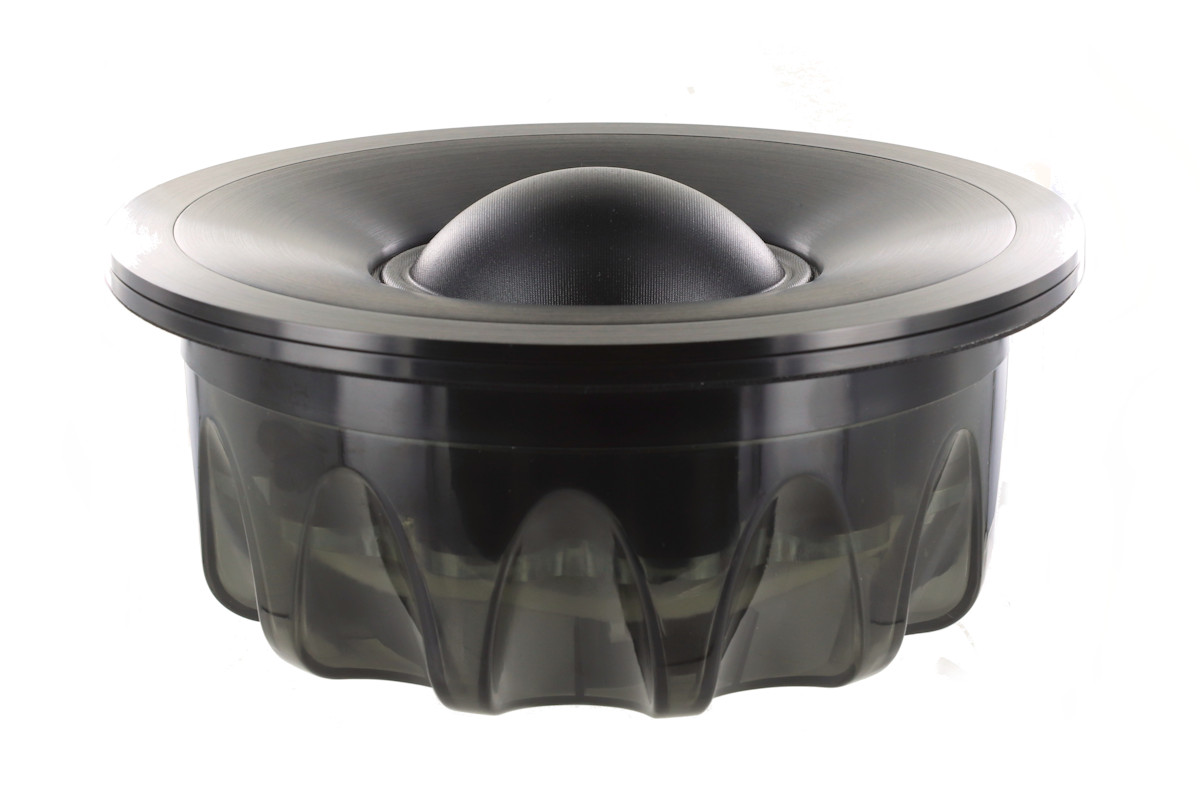

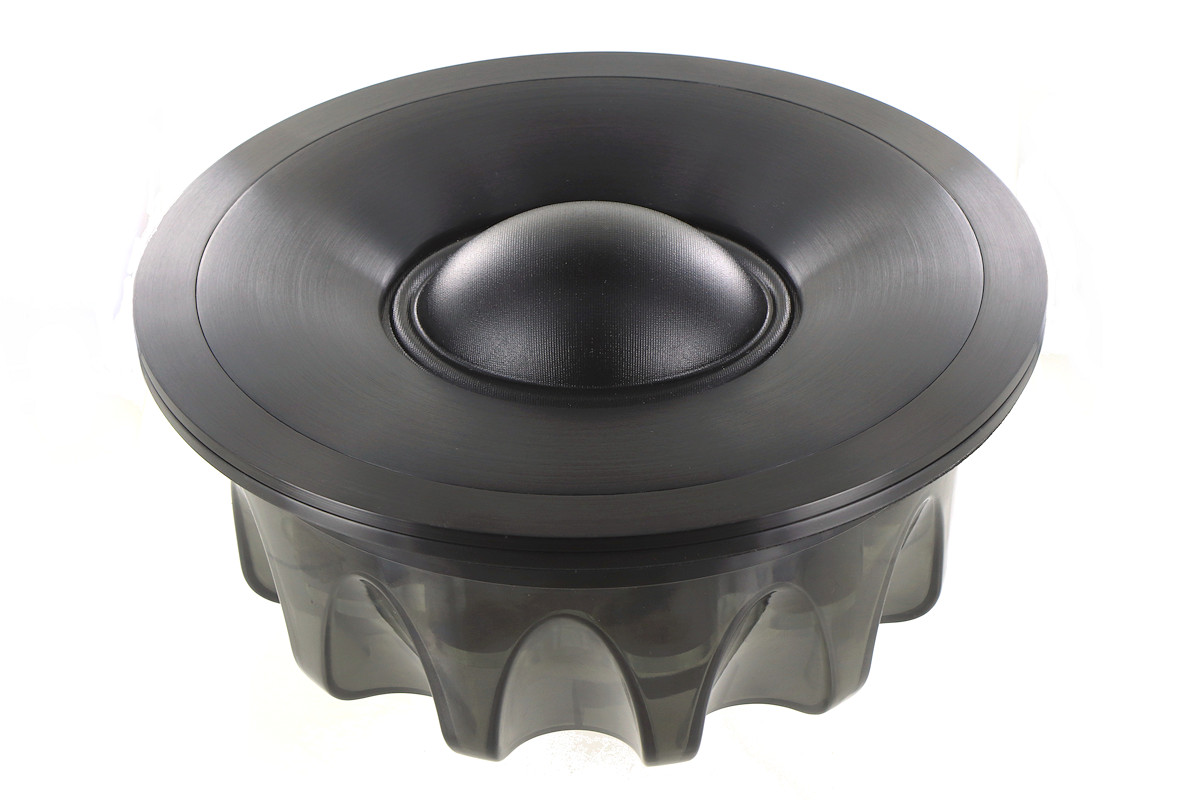

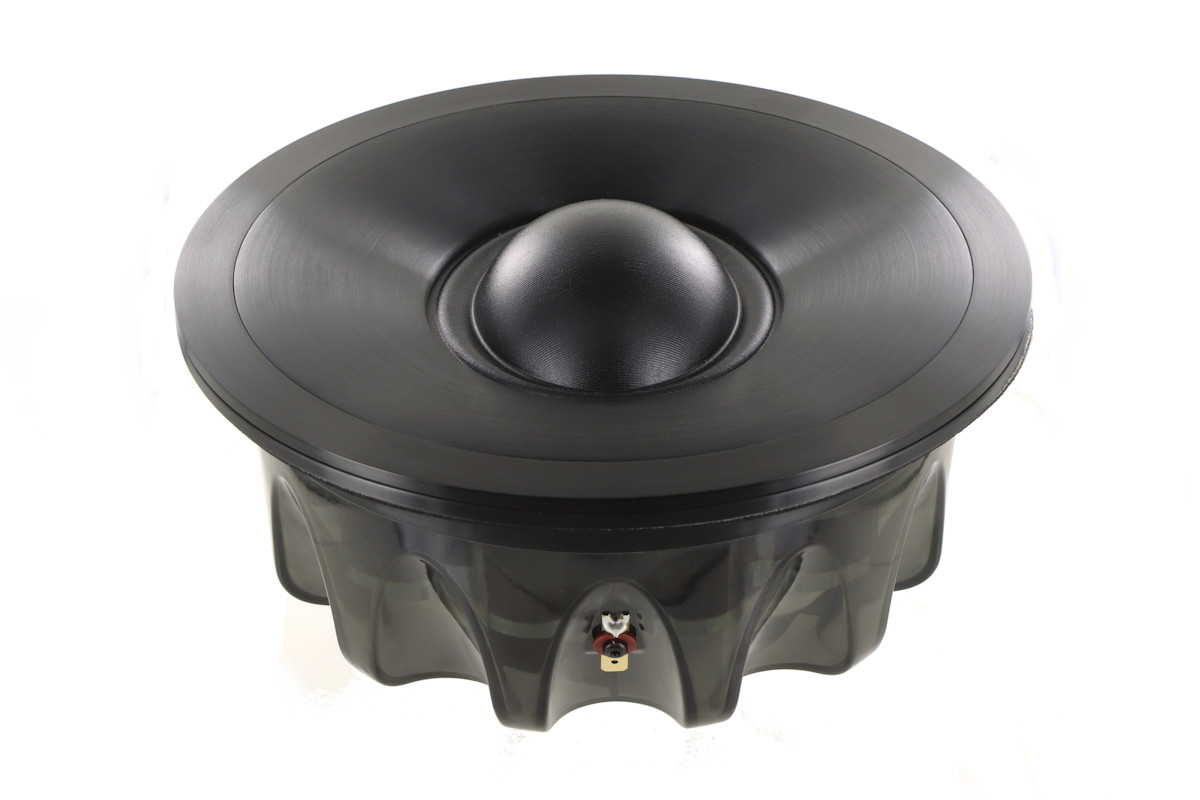

84mm (3”) Dome Midrange, 4-ohm, coated textile dome and surround, double suspension, extremely powerful neodymium magnet system, black anodized aluminium faceplate with detectable decorative trim-ring.

Category: Tags: ,

With the Ellipticor family a long tradition of circular motor structures and their inherent breakup behavior has been broken since one of its key features is an elliptical voice coil and magnet gap. In combination with the powerful SD AirCirc magnet system the D8404 has high sensitivity, very low distortion, and has an extremely fast response to transients. Above all a TRUE TO LIVE sound which makes D8404/552000 probably the very best midrange on the market!



Weight 5.5 kg
Product Categories


Product Families


- Elliptical voice coil
- AirCirc optimized magnetsystem
- Low mechanical loss
- Exceptionally low distortion
- Dual suspension
- Flexible optics with replaceable decor ring

  Size:8.4 cm
  Fs:280 Hz
  Re:3 Ω
  Sensitivity:92 dB
  VAS:0.27 ltr.
  Sd:58 cm²
  Bl:6.1 Tm
