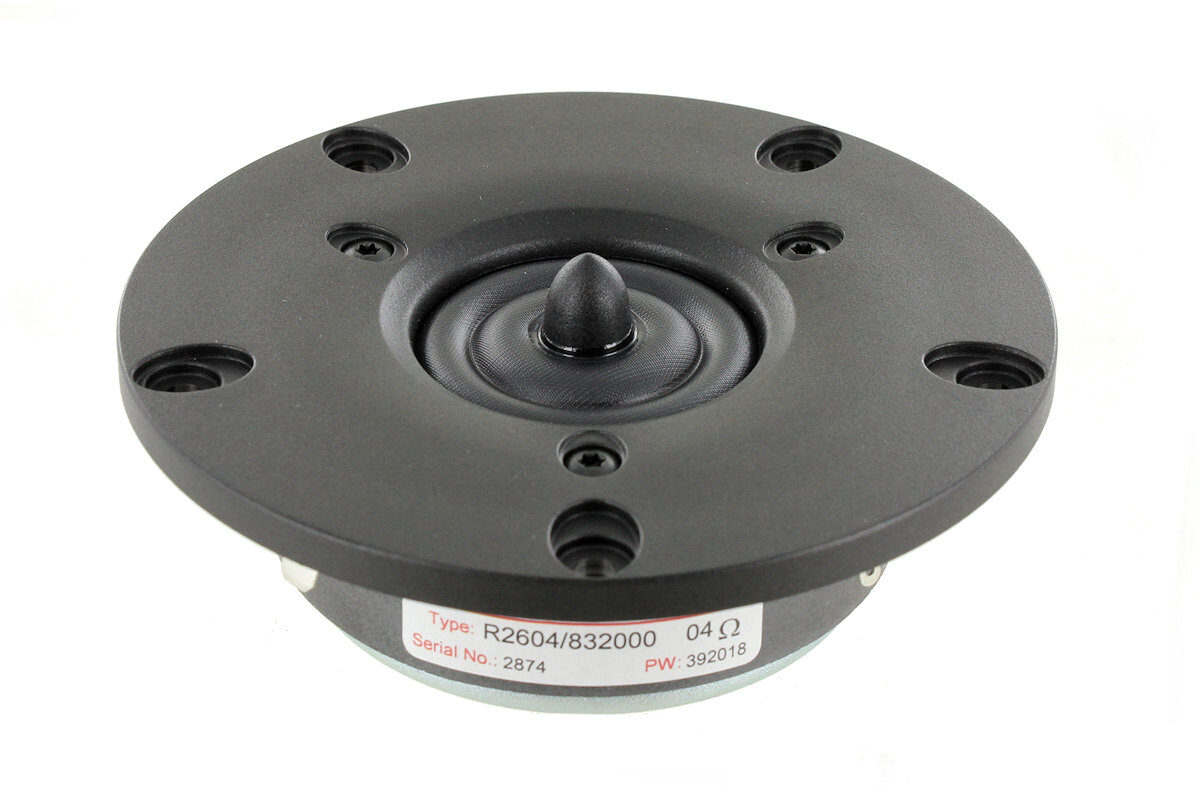

R2604/832000

26mm Ring Radiator 4ohm, Ferrite Magnet, Chamber

Category: Tags: ,

The Discovery series offer traditional design, superior sound, a solid construction, and a wide range of variants. Combining these elements – plus a wealth of technical features and finesses – it gives our customers the possibility of acquiring a tailor-made Scan-Speak solution with very good performance at a reasonable low price point!

DIY Kits:
Revelator 4R (R2604/832000, 15W/4531G00)
Discovery 18 (R2604/832000 or D2604/830000, 18W/8434G00)
Ellam Dappo (R2604/832000 / D2904/980000, 15W/8530-K00)
CSM Compact Studio Monitor (R2604/832000, 18W/8545K00)
Ellam-XT (R2604/832000, 15W/8530K00)
Ekta Grande (R2904/700009, R2604/832000, 12M/4631G00, 18W/8531G00)




Product Families

Discovery

Product Categories

Tweeter


- Extended Frequency To Above 40KHz
- Very Low Resonance Frequency - 500Hz
- Low Distortion
- Dual Ring Radiator diaphragm (Patent)
- Wave-guide center plug (Patent)
- Textile Diaphragm

  Size:2.6 cm
  Fs:500 Hz
  Re:2.9 Ω
  Qt:0.44
  Sensitivity:90 dB
  VAS:0.01 ltr.
  Sd:5.4 cm²
  Bl:2.3 Tm
