Scan-Speak Newsletter

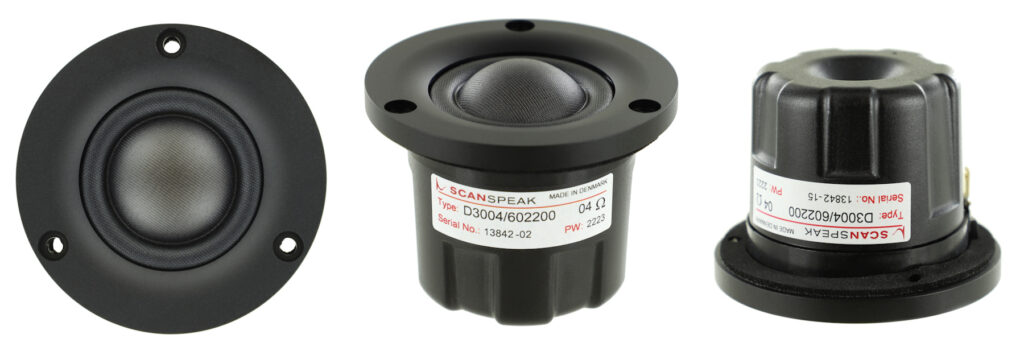

New updated Illuminator D3004/602200 Compact 1” Dome tweeter

After 15 years on the market has the compact Illuminator tweeters D3004/602000 / D3004/602010 been updated and merged into the new D3004/602200.

During its relatively short time on the market, we found several points in its design that could be optimized and as we constantly strive towards perfection, we could not sit with such knowledge without making it available to everyone, hence the new version.

D3004/602200 new features are:

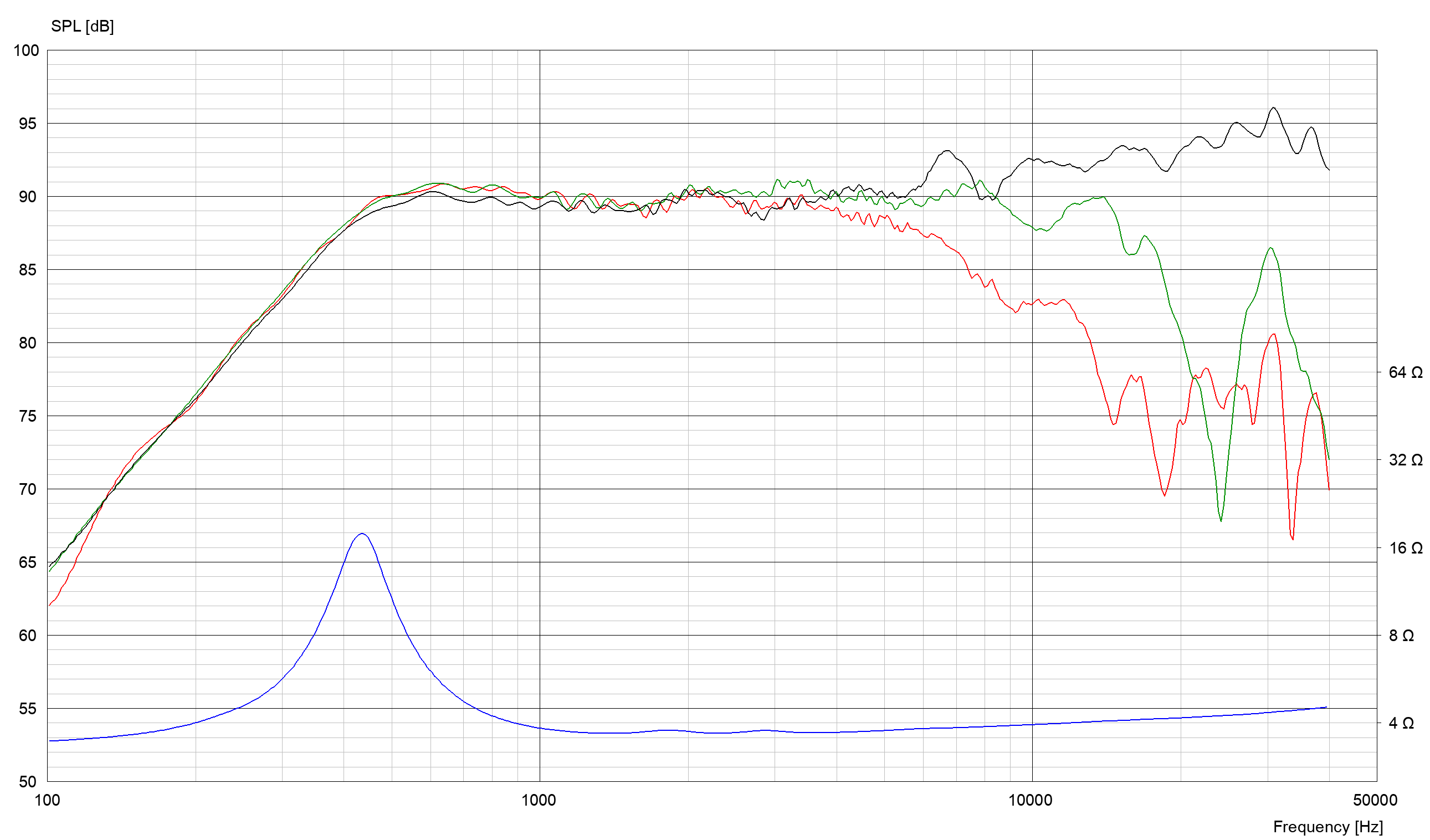

Lower distortion and improved frequency response extending to beyond 40kHz due to optimized internal construction.
Increased sensitivity (+1-1,5dB) due to higher grade neodymium magnet.
Improved Q due to optimized internal volume in a new high precision reenforced polycarbonate rear chamber.
A new smoother look with Black anodized aluminium Ø62mm faceplate.
Better connection with new gold-plated terminals with improved heat resistance at soldering.

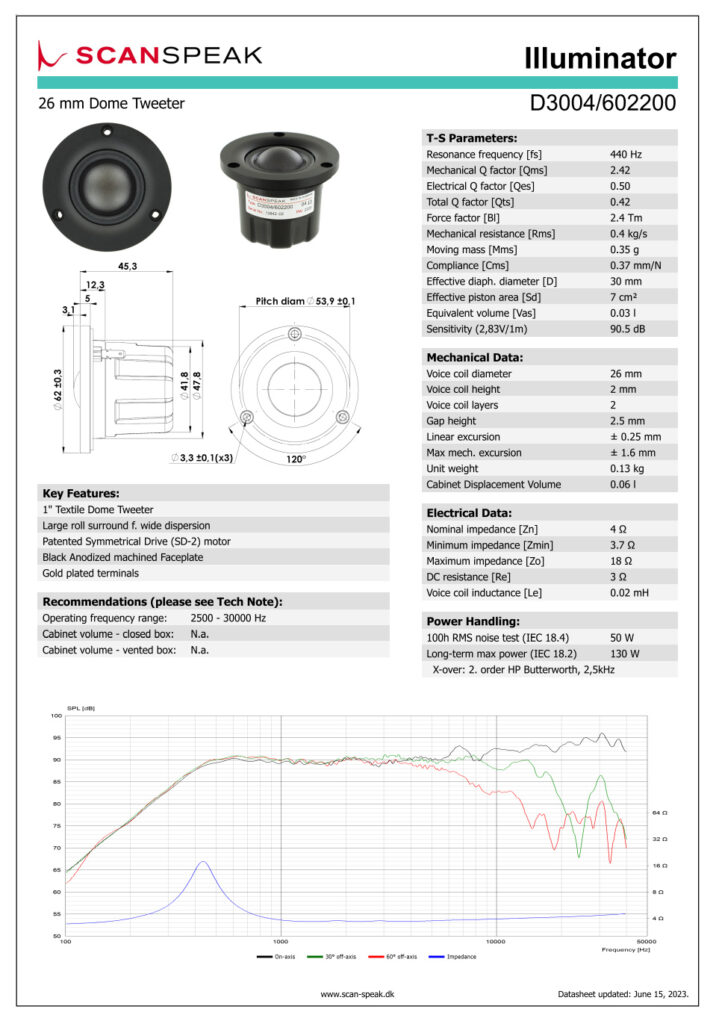

Go to datasheet – click here.

The new D3004/602200 is available from stock.

The beryllium and ring radiator versions will undergo the similar modifications within short time and will be announced separately when available.

The old versions D3004/602000 and D3004/602010 will be discontinued by the end of 2023.
