With the Ellipticor family we have broken away from the traditional circular motor structures and resolved their inherent breakup behavior. Perhaps not surprisingly judging by the name, Ellipticor’s key features are an elliptical shaped voice coil and magnet gap. Combined with our powerful SD AirCirc principle the Ellipticor transducers have high sensitivity, very low distortion, and have an extremely fast response to transients. In particular, the sonic performance of the midrange and treble is outstanding. The sound is clean, transparent and has amazing transient behavior.

There is absolutely nothing that´s introverted about these drivers.

Above all a TRUE TO LIVE sound makes Ellipticors among the very best loudspeaker transducers on the market!

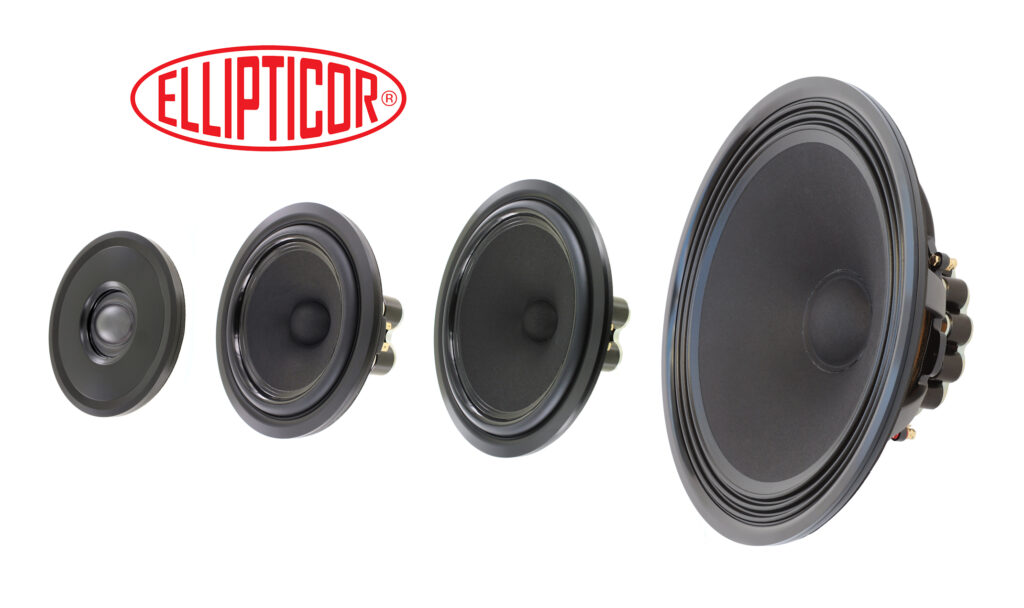

And the Ellipticor family is growing ….

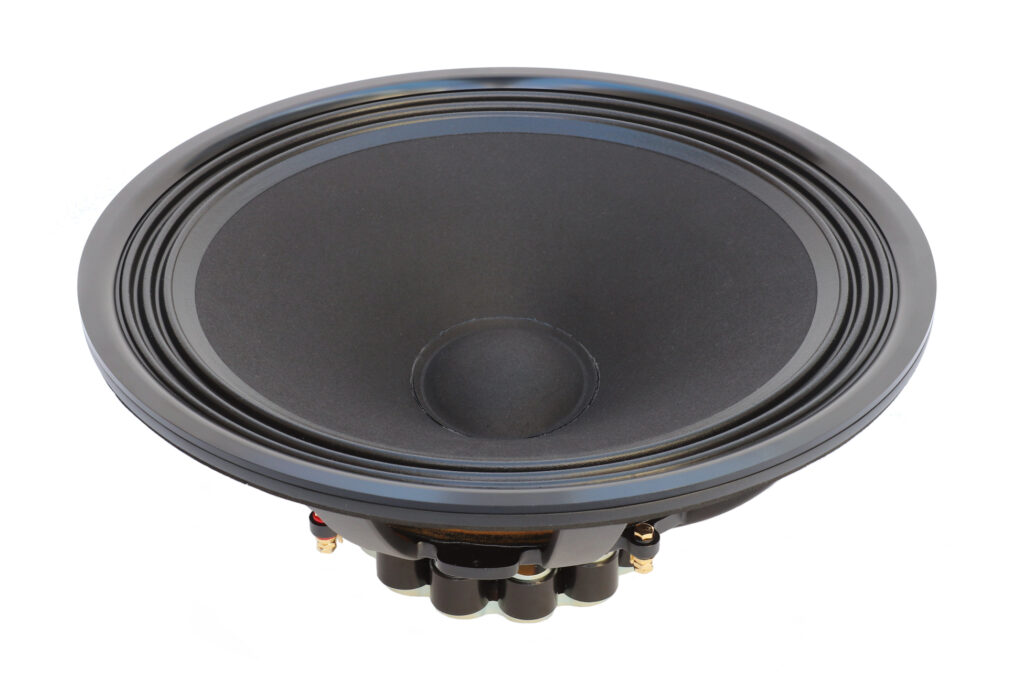

38WE/8582T00 – 38 cm (15”) woofer - a new BIG brother is born.

Built on the same principles as its smaller siblings 18WE and 21WE, its key features are an elliptically shaped voice coil and magnet gap. Combined with a large powerful SD AirCirc principle the 38WE/8582T00 woofer has high sensitivity, very low distortion, and extremely fast response to transients.

Key features:

glif-lille
Elliptical voice coil and motor structure, thus minimizing circular cone break-up modes.
glif-lille
SD AirCirc magnet system with 12 powerful neodymium magnets providing a powerful control of the transducer’s behavior.
glif-lille
Linear suspension with coated multi-roll fabric surround.
glif-lille
Black anodized aluminium décor ring, for sleek appearance without any visible mounting screws.
The 38WE offers outstanding bass performance. Due to its light rigid paper cone, low-loss-linear-suspension and a very powerful magnet system the combination of sensitivity (SPL) and dynamic transient response is unusual for a big, low distortion high-end woofer. In a multiway loudspeaker system this woofer offers an attack and a presence in the low frequency range seldom heard from a driver this size.
