12W/8524G00

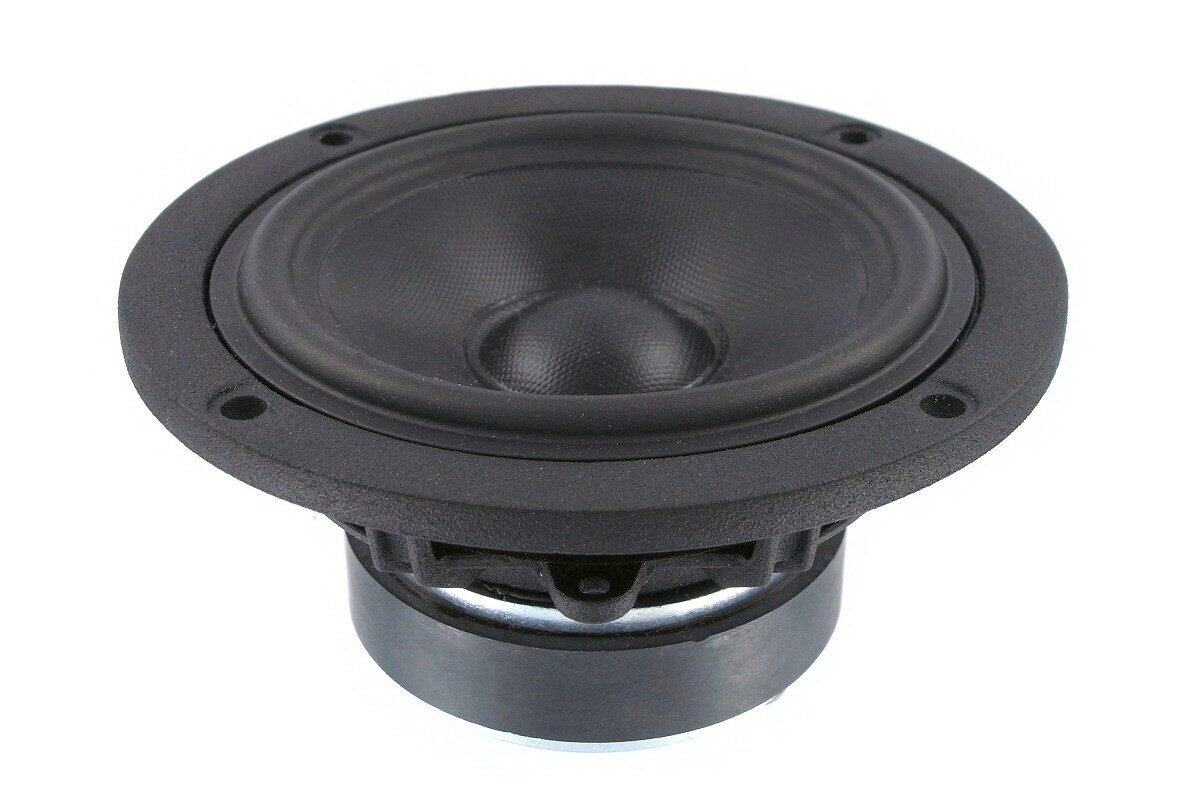

12cm Midwoofer 8ohm, Coated Fiberglass Cone, Ferrite Magnet

Category: Tags: ,

The Discovery series offer traditional design, superior sound, a solid construction, and a wide range of variants. Combining these elements – plus a wealth of technical features and finesses – it gives our customers the possibility of acquiring a tailor-made Scan-Speak solution with very good performance at a reasonable low price point!

DIY Kits:
Discovery 12W (R3004/602010, 12W/8524G00)






Weight 1.1 kg
Product Families

Discovery

Product Categories

Midwoofer


- Wide Operating Frequency Range
- Suitable for 2-way or 3-way (as midrange)
- Coated NRSC Fibre Glass Cone (patent)
- Low Damping SBR Rubber Surround
- Die cast Alu Chassis vented below spider


  Size:12 cm
  Fs:52 Hz
  Re:5.7 Ω
  Qt:0.32
  Sensitivity:86 dB
  VAS:8.2 ltr.
  Sd:59 cm²
  Bl:5.4 Tm
