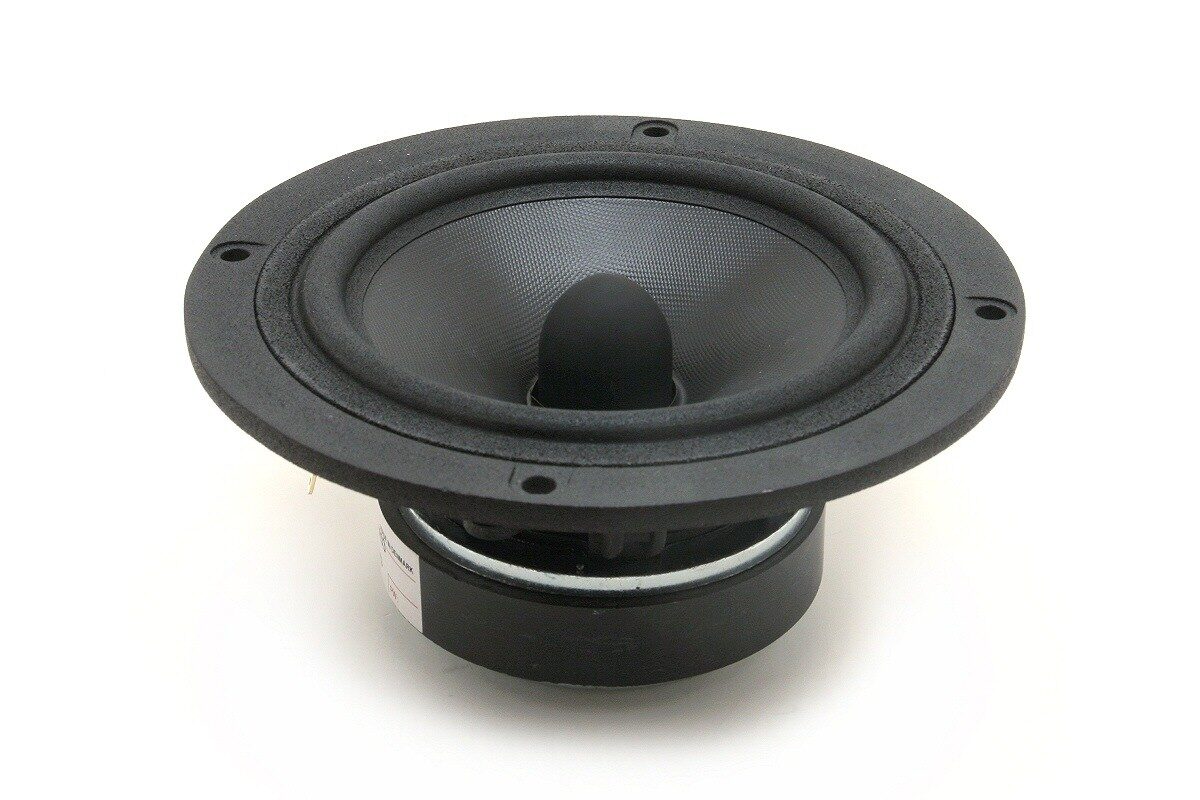

15cm Midrange 4ohm, Coated Fiberglass Cone, Ferrite Magnet

Category: Tags: ,

The Discovery series offer traditional design, superior sound, a solid construction, and a wide range of variants. Combining these elements – plus a wealth of technical features and finesses – it gives our customers the possibility of acquiring a tailor-made Scan-Speak solution with very good performance at a reasonable low price point!

Voice Coil, 08-2012




Weight 1.2 kg
Product Families


Product Categories


- High Output 92,5dB @ 2,83V
- Phase Plug for Improved Phase Linearity
- Coated NRSC Fibre Glass Cone
- Very Low Damping Foam Surround (Coated)
- Die cast Alu Chassis vented below spider
- Magnet System w. Alu Ring

  Size:15 cm
  Fs:100 Hz
  Re:3.2 Ω
  Sensitivity:92.5 dB
  VAS:3.7 ltr.
  Sd:75 cm²
  Bl:5.3 Tm
