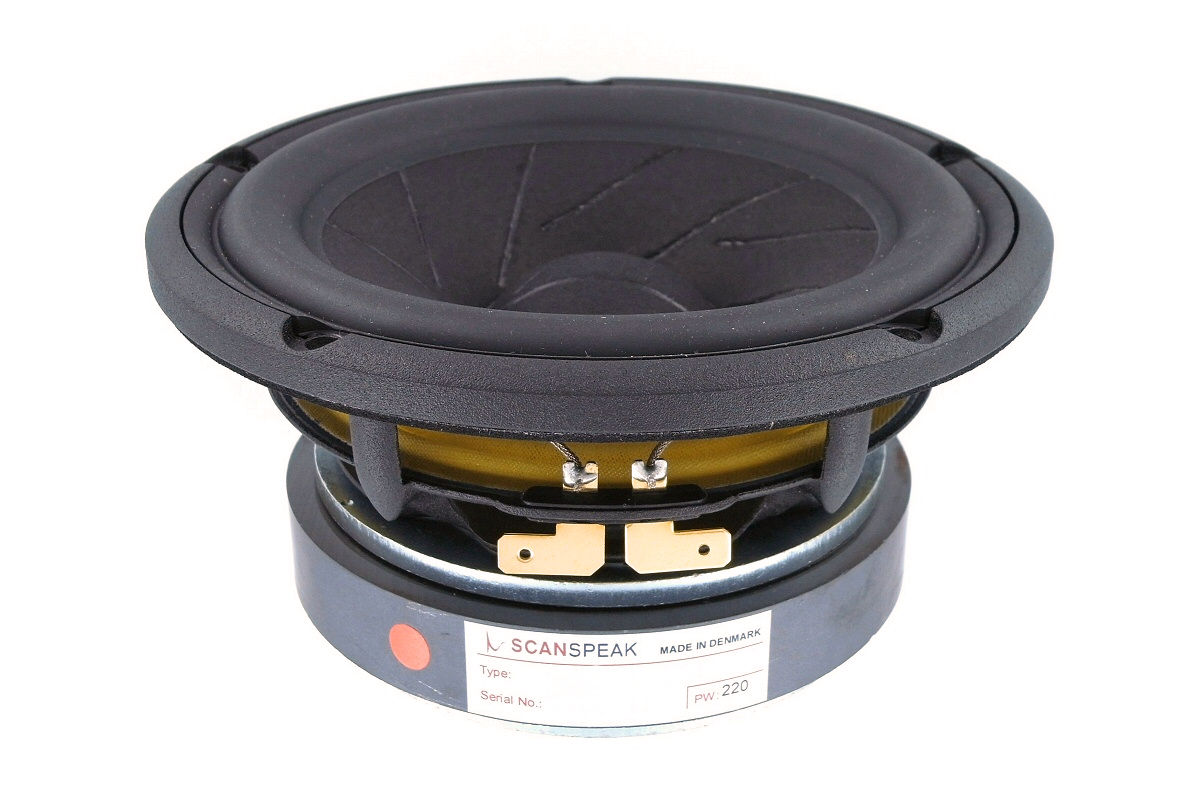

15M/8631G00

15 cm Midrange 8 ohm, Sliced Paper Cone, Large Ferrite Magnet

Category: Tags: ,

This Revelator midrange has sliced paper cone technology. The slices are filled with damping glue, which dramatically reduces break-up modes in the diaphragm. In combination with the Scan-Speak low loss linear suspension and the patented symmetrical Drive SD-1 it represents a breakthrough in midrange clarity and overall smooth frequency response characteristics.




Weight 1.9 kg
Product Families

Revelator

Product Categories

Midrange


- Patented Symmetrical Drive motor system
- Low loss, low damping linear suspension
- Sliced cone technology
- Die cast Alu chassis vented below spider
- Large ferrite magnet system


  Size:15 cm
  Fs:42 Hz
  Re:5.9 Ω
  Qt:0.35
  Sensitivity:87 dB
  VAS:16.2 ltr.
  Sd:95 cm²
  Bl:6.8 Tm
