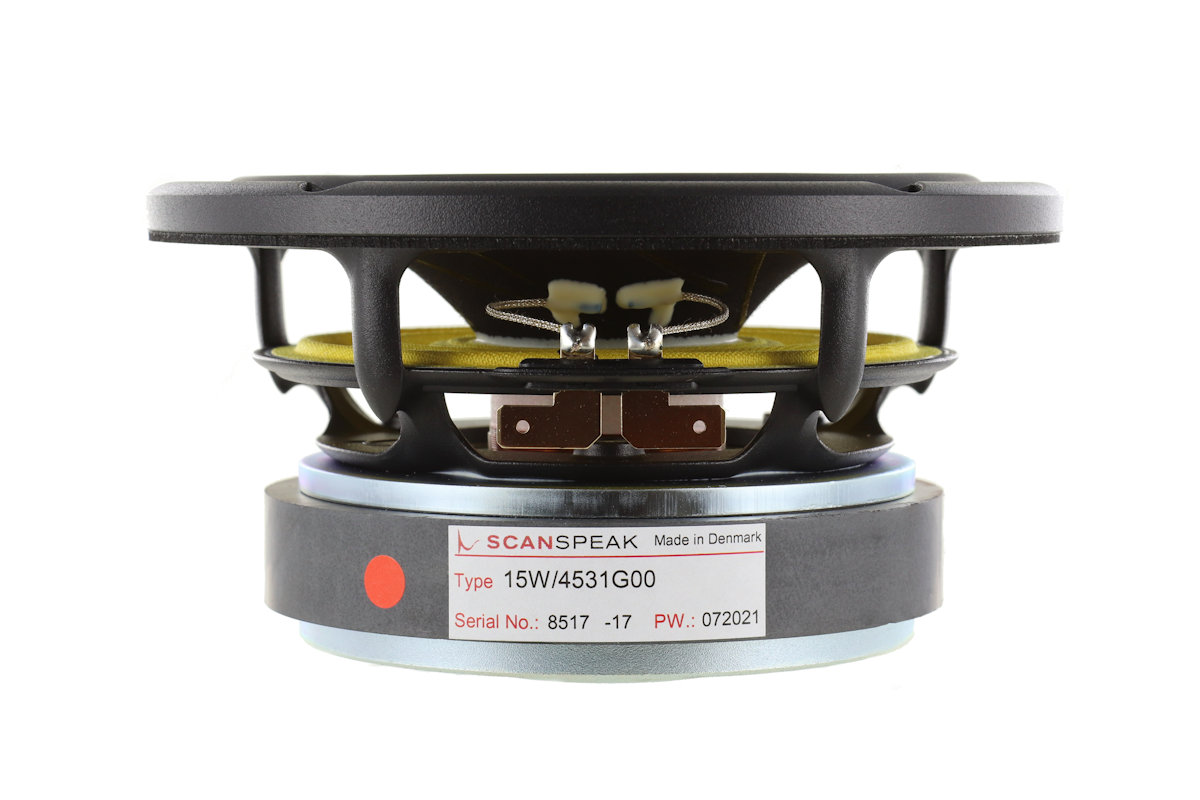

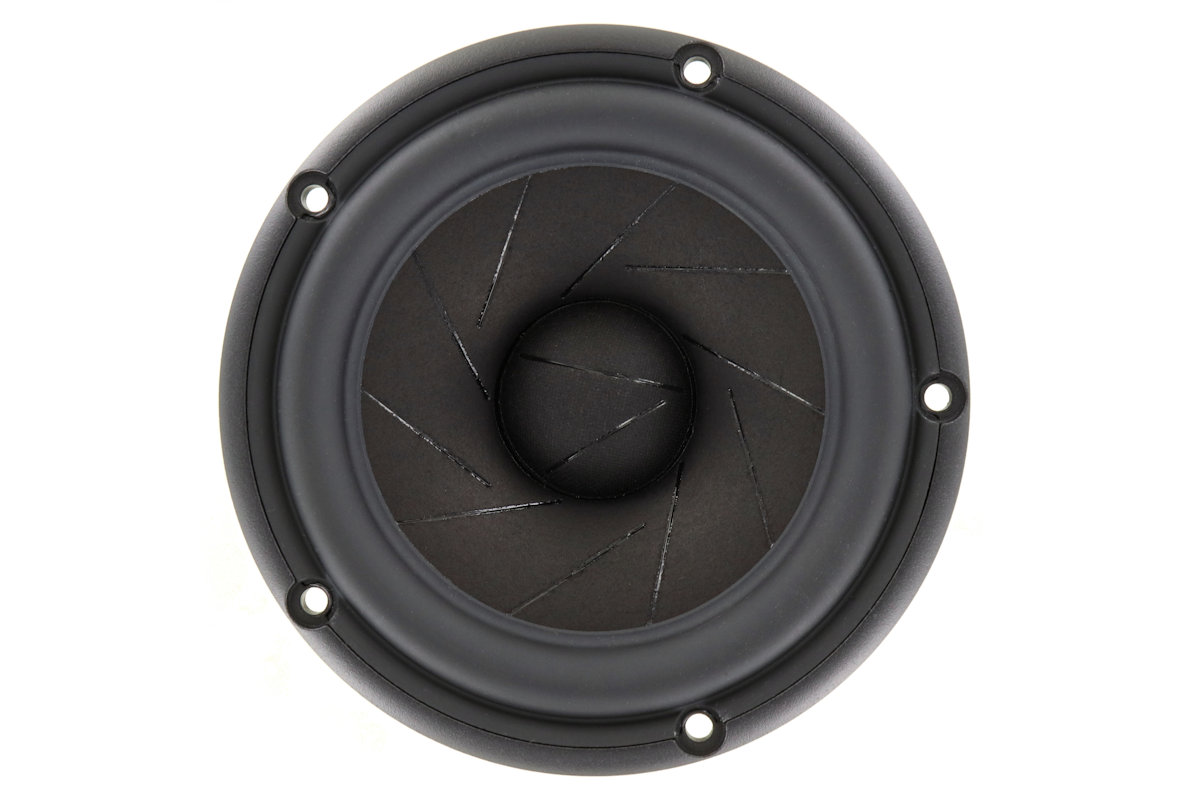

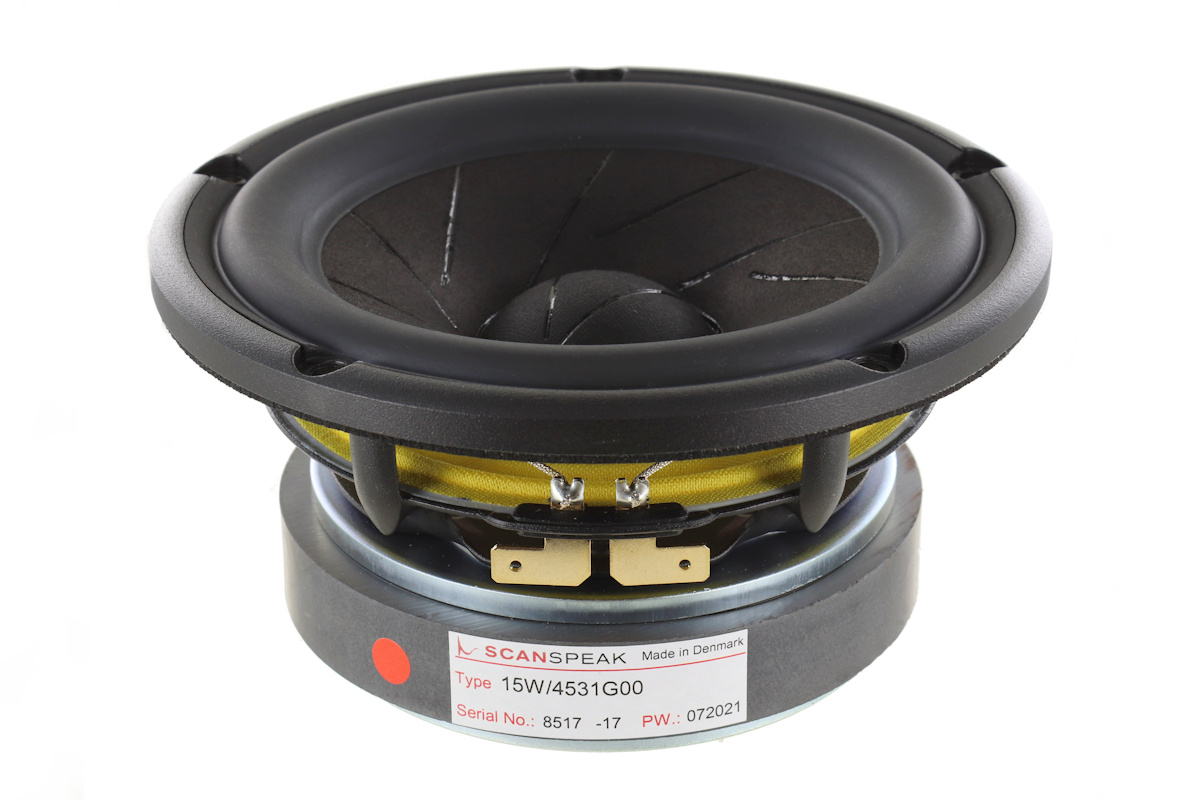

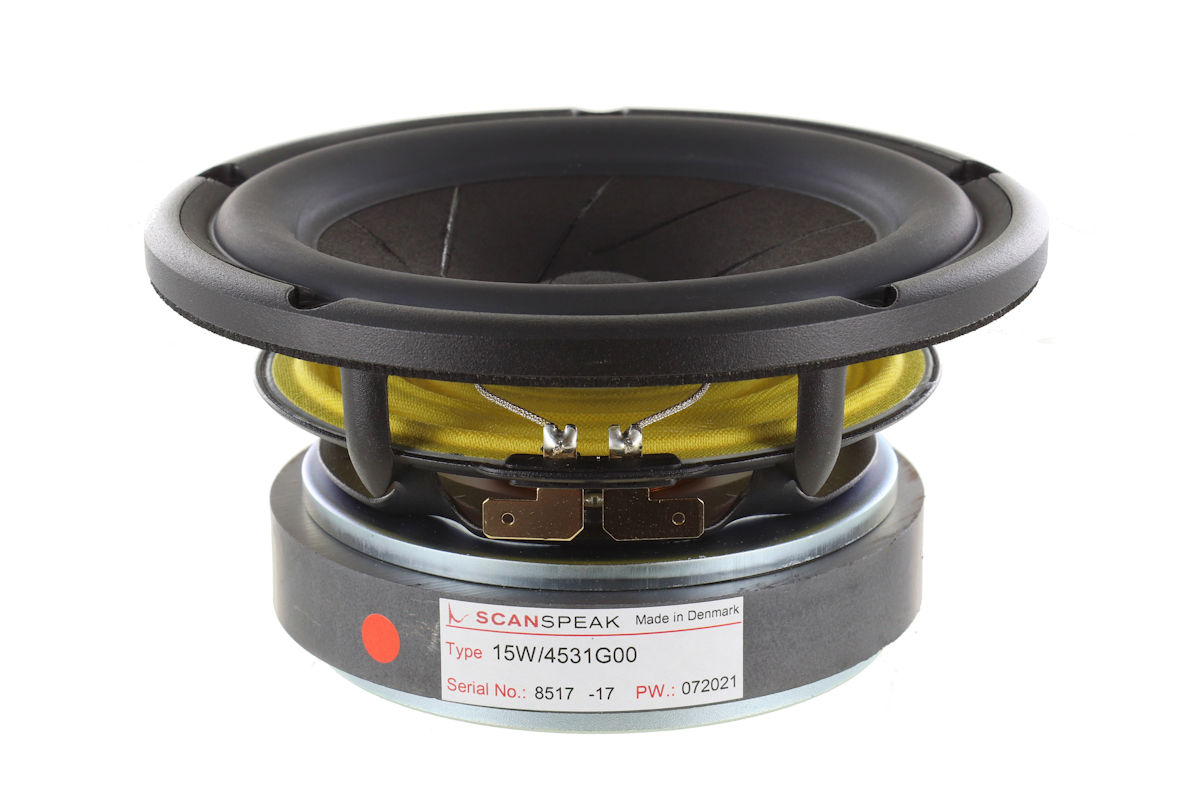

15W/4531G00

15cm Midwoofer 4ohm, Sliced Paper Cone, Large Ferrite Magnet

Category: Tags: ,

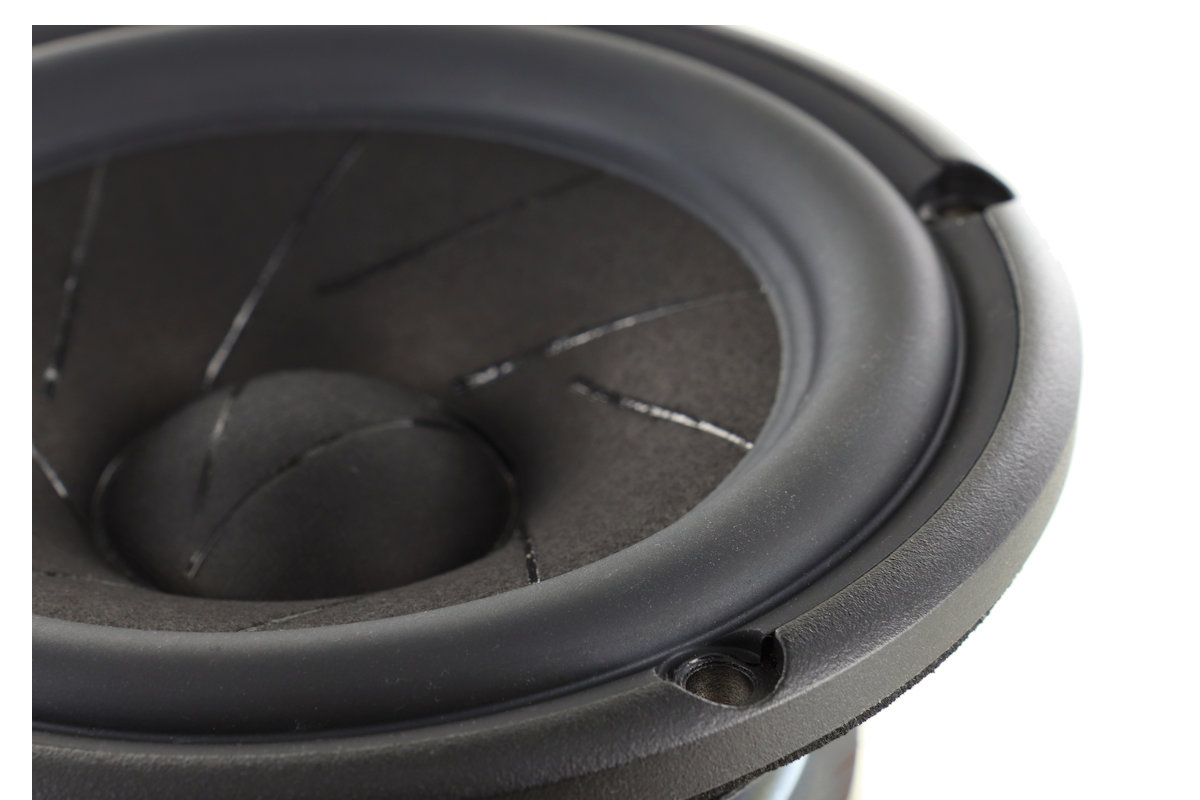

The Revelator midrange and midwoofers, both well known for their sliced paper cone technology. The slices are filled with damping glue, which dramatically reduces break-up modes in the diaphragm. In combination with Scan-Speaks low-loss linear suspension and the patented Symmetrical Drive (SD-1) it represented a breakthrough in midrange clarity and overall smooth frequency response characteristics.

DIY Kits:
Scan Concert (D2905/930000, 15W/4531G00)
Revelator 4R (R2604/832000, 15W/4531G00)






Weight 1.9 kg
Product Families

Revelator

Product Categories

Midwoofer


- Patented Symmetrical Drive motor design
- Sliced Cone (Controls Cone Breakups)
- Low-Loss linear suspension
- Low Damping SBR Rubber Surround
- Die cast Alu Chassis vented below spider
- Large Ferrite Magnet System

  Size:15 cm
  Fs:40 Hz
  Re:3.4 Ω
  Qt:0.32
  Sensitivity:87 dB
  VAS:15.8 ltr.
  Sd:95 cm²
  Bl:5.7 Tm
