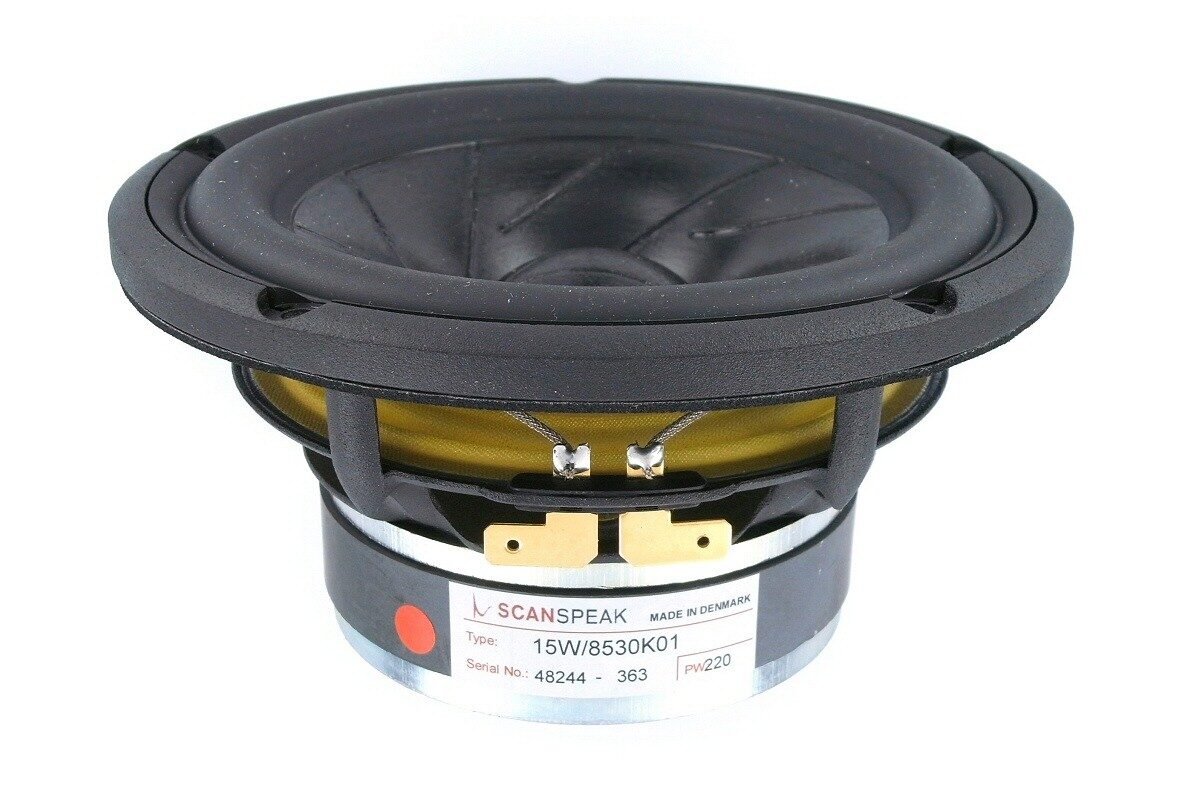

15W/8530K01

15cm Midwoofer 8ohm, Coated Sliced Paper Cone, Small Ferrite Magnet

Category: Tags: ,

The Revelator midrange and midwoofers, both well known for their sliced paper cone technology. The slices are filled with damping glue, which dramatically reduces break-up modes in the diaphragm. In combination with Scan-Speaks low-loss linear suspension and the patented Symmetrical Drive (SD-1) it represented a breakthrough in midrange clarity and overall smooth frequency response characteristics.






Weight 1.4 kg
Product Families

Revelator

Product Categories

Midwoofer


- Patented Symmetrical Drive Motor Design
- Sliced Cone (Controls Cone Breakups)
- Coated Paper Cone
- Low-Loss linear suspension
- Low Damping SBR Rubber Surround
- Die cast Alu Chassis vented below spider

  Size:15 cm
  Fs:38 Hz
  Re:5.9 Ω
  Qt:0.5
  Sensitivity:84.5 dB
  VAS:17 ltr.
  Sd:95 cm²
  Bl:5.8 Tm
