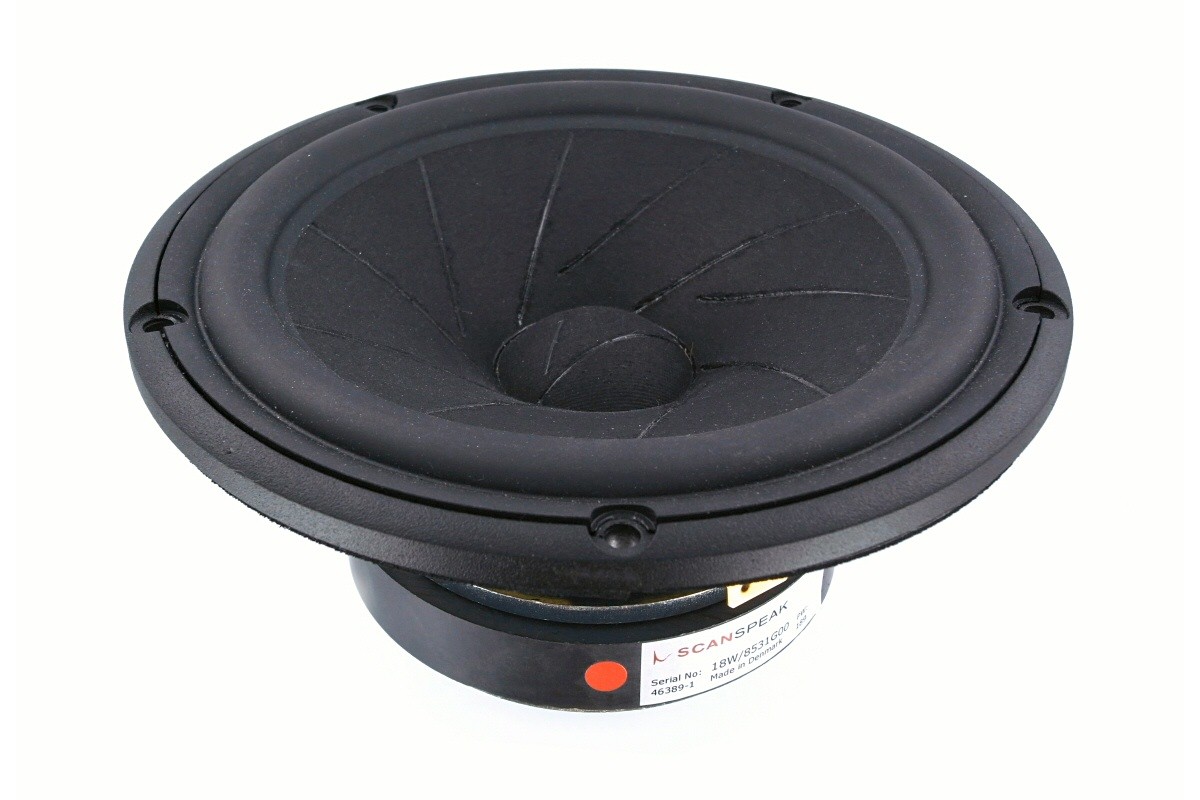

18W/8531G00

18cm Midwoofer 8ohm, Sliced Paper Cone, Large Ferrite Magnet

Category: Tags: ,

The Revelator midrange and midwoofers, both well known for their sliced paper cone technology. The slices are filled with damping glue, which dramatically reduces break-up modes in the diaphragm. In combination with Scan-Speaks Low-loss linear suspension and the patented Symmetrical drive (SD-2) it represented a breakthrough in midrange clarity and overall smooth frequency response characteristics.

DIY Kits:
Ophelia High End (D2908/714000, 18W/8531G00)
Jensen 1071 (D2905/990000, 18W/8531G00, 26W/8861T00)
SP38/13 (D2010/851300, D3806/820000, 18W/8531G00)
Ekta Grande (R2904/7000, 12M/4631G00, 18W/8531G00)
SLICED PAPER SP95 (D2905/950000, 18W/8531G00)






Weight 1.9 kg
Product Families

Revelator

Product Categories

Midwoofer


- Patented Symmetrical Drive Motor Design
- Sliced Cone (Controls Cone Breakups)
- Low-Loss linear suspension
- Low Damping SBR Rubber Surround
- Die cast Alu Chassis vented below spider
- Large Ferrite Magnet System

  Size:18 cm
  Fs:28 Hz
  Re:5.8 Ω
  Qt:0.36
  Sensitivity:87 dB
  VAS:58.2 ltr.
  Sd:150 cm²
  Bl:6.8 Tm
