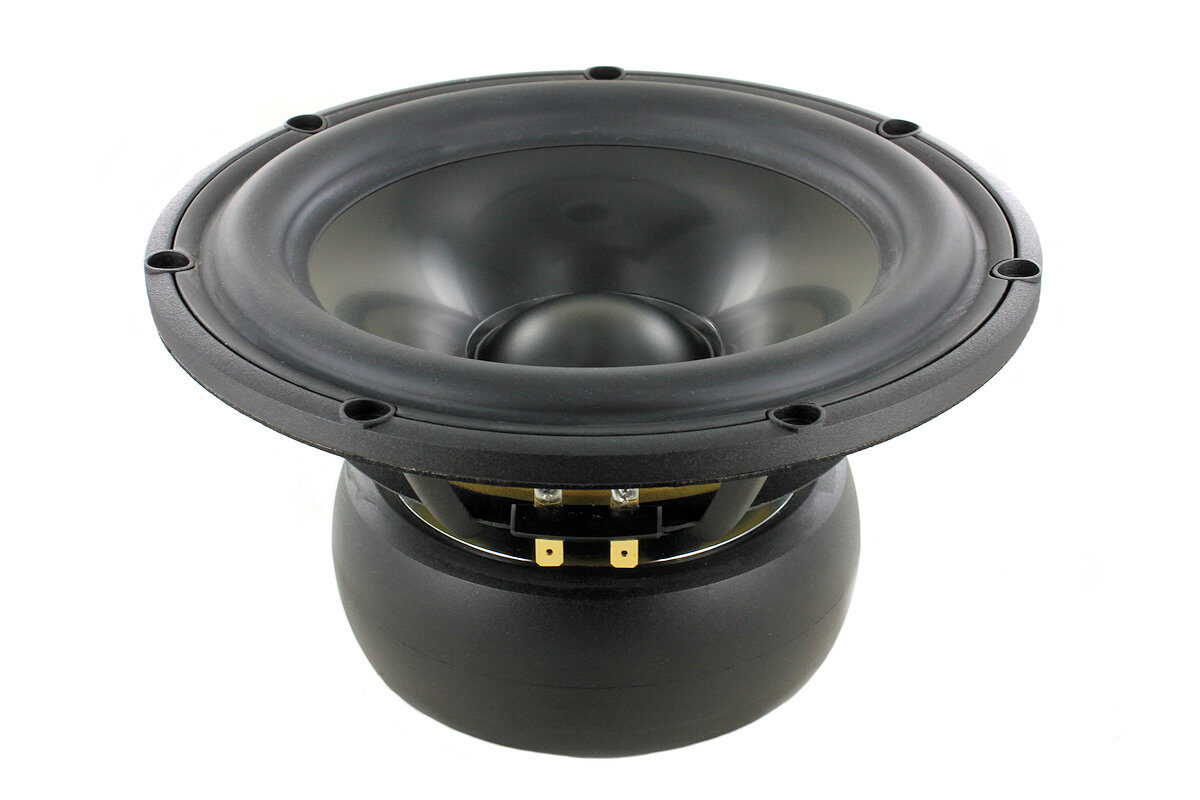

22W/8857T00

22cm Woofer 8ohm, Alu Cone, Ferrite Magnet

Category: Tags: ,

The Revelator woofers and subwoofers features very rigid cones in paper or aluminium that operates as a piston over a wide frequency range, in combination with Scan-Speaks low-loss linear suspension and the patented Symmetrical Drive (SD-1) it results in very low distortion and a smooth and well behaved frequency response as well as perfect transient reproduction.






Weight 3.9 kg
Product Families

Revelator

Product Categories

Woofer


- Patented Symmetrical Drive Motor Design
- Rigid Black Anodized Alu Cone
- Low-Loss linear suspension
- Low Damping SBR Rubber Surround
- Die cast Alu Chassis vented below spider
- Ferrite Magnet System w. Rubber Boot

  Size:22 cm
  Fs:23 Hz
  Re:6.2 Ω
  Qt:0.3
  Sensitivity:86 dB
  VAS:87.7 ltr.
  Sd:220 cm²
  Bl:10.1 Tm
