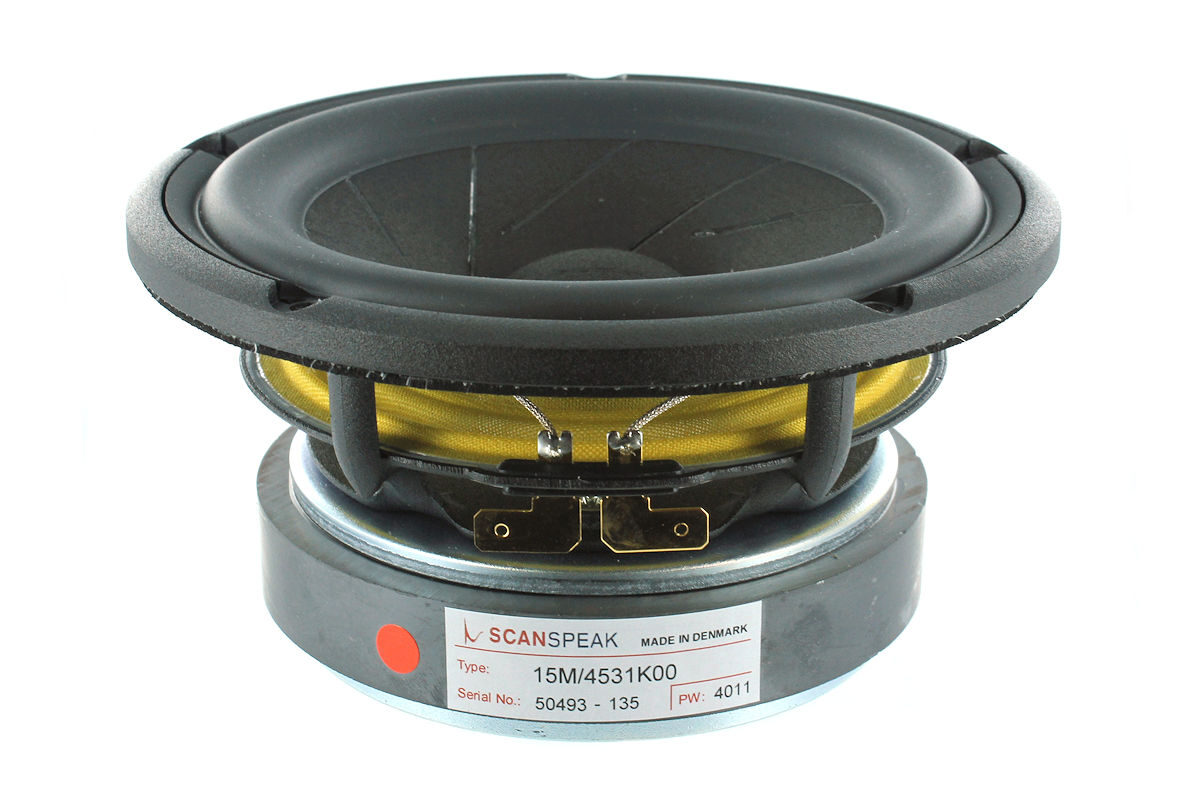

15M/4531K00

15cm Midrange 4ohm, Sliced Paper Cone, Large Ferrite Magnet

Category: Tags: ,

The Revelator midranges are well known for their sliced paper cone technology. The slices are filled with damping glue, which dramatically reduces break-up modes in the diaphragm. In combination with Scan-Speaks low-loss linear suspension and the patented Symmetrical Drive (SD-1) it represented a breakthrough in midrange clarity and overall smooth frequency response characteristics.






Weight 1.9 kg
Product Families

Revelator

Product Categories

Midrange


- Excellent Midrange Reproduction
- Patented Symmetrical Drive motor design
- Sliced Cone (Controls Cone Breakups)
- Low-loss linear suspension
- High Output 90dB @ 2,83V
- Die cast Alu Chassis vented below spider

  Size:15 cm
  Fs:35 Hz
  Re:3.5 Ω
  Qt:0.23
  Sensitivity:90 dB
  VAS:23.8 ltr.
  Sd:95 cm²
  Bl:6 Tm
