D2104/712000

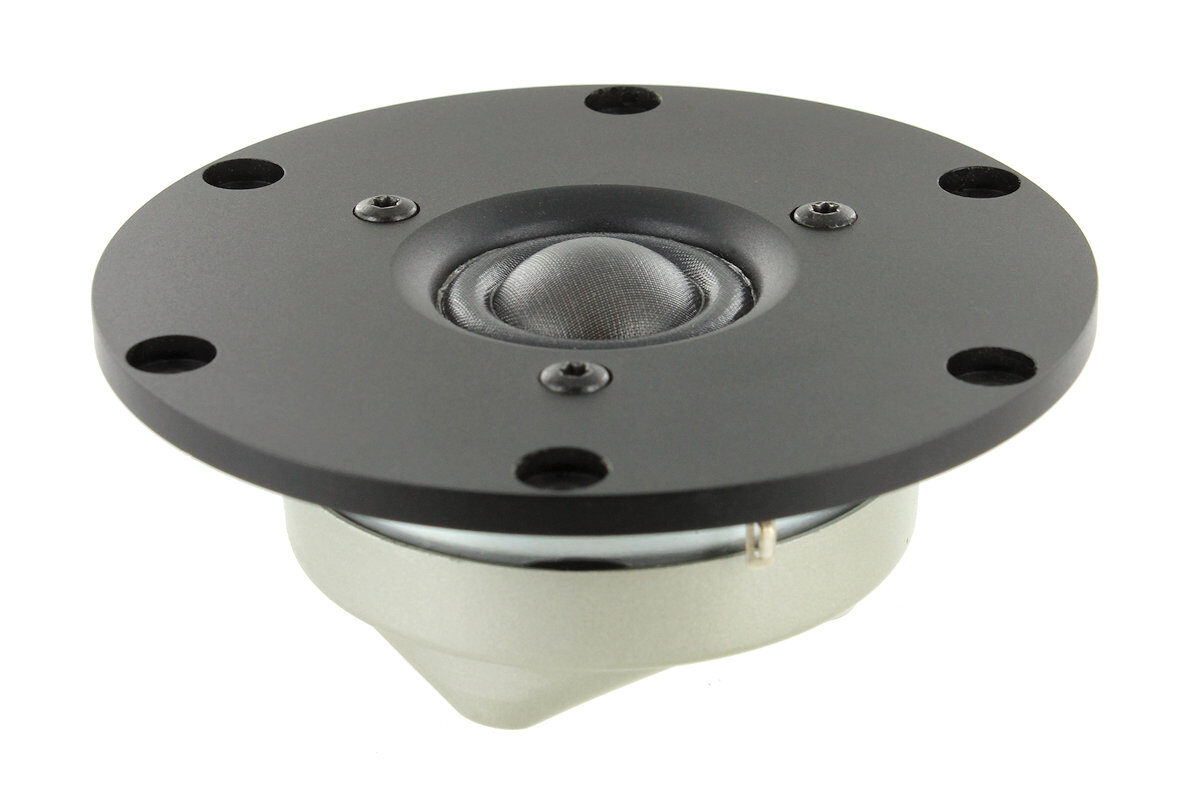

21 mm Dome Tweeter 4 ohm, Large Ring Neo, Black Faceplate

Category: Tags: ,

The large roll surround technology of the Revelator Tweeters represents a breakthrough in overall performance, with outstanding off-axis response, high output capability and low resonance frequency. A large neodymium magnet system for high sensitivity is part of the design. Additional enhancements have been made to reduce distortion and dynamic compression, such as a careful design to optimize airflow in the chambers.




Weight 0.5 kg
Product Families

Revelator

Product Categories

Tweeter


- Patented Symmetrical Drive (SD-2) motor
- Neodymium ring magnet system with double vent.
- High frequency extension beyond 40kHz
- Coated textile diaphragm w. large roll Surround
- Back chamber with high consistency felt pads
- Anodized Machined Alu Face Plate

  Size:1.9 cm
  Fs:500 Hz
  Re:2.8 Ω
  Qt:0.40
  Sensitivity:92 dB
  VAS:0.01 ltr.
  Sd:4.5 cm²
  Bl:2.0 Tm
