Products

Showing 100–108 of 126 results

  • Tweeter

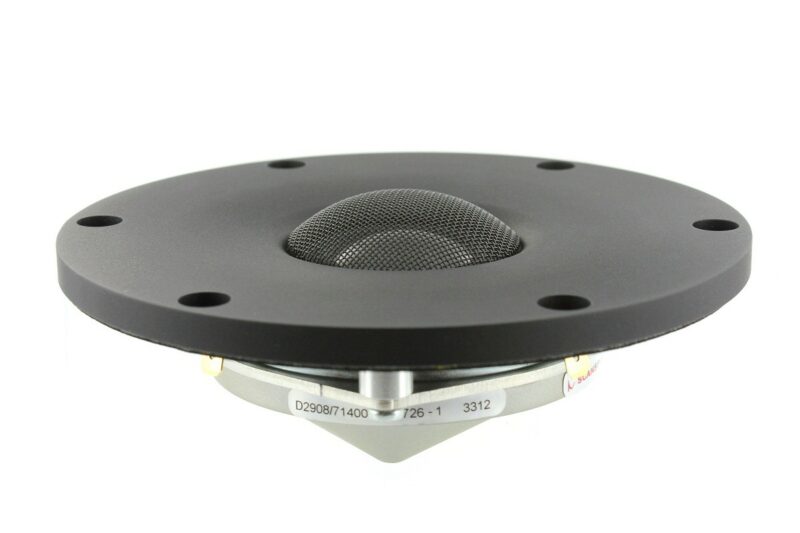

    D2908/714000


    - Beryllium Diaphragm (99% Pure Be)
    - Rear Mount Magnet System
    - Patented Symmetrical Drive (SD-2) motor
    - Titanium Voice Coil Former
    - Black Anodized ø120mm Machined Alu Faceplate
    - Non Resonant Aluminium Rear Chamber


      Size:2.6 cm
      Fs:534 Hz
      Re:5.7 Ω
      Qt:0.47
      Sensitivity:92 dB
      VAS:0.02 ltr.
      Sd:7 cm²
      Bl:3.6 Tm


  • Tweeter

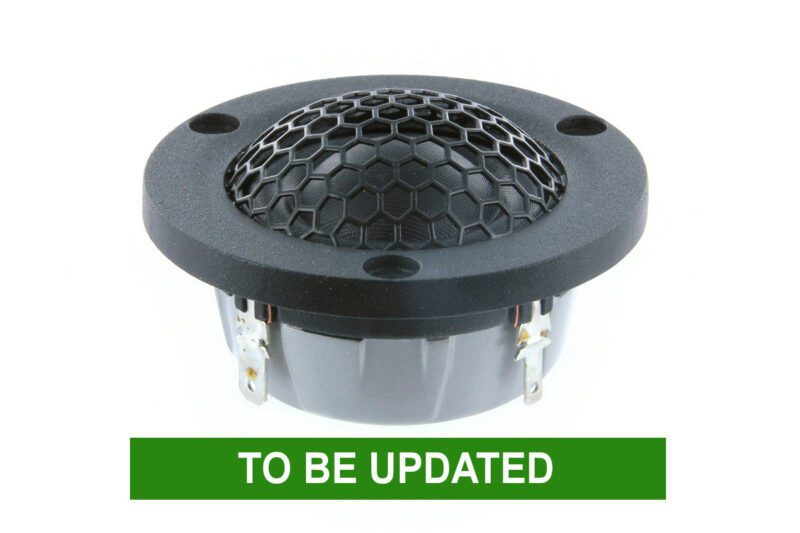

    D3004/602000


    - 1" Textile Dome Diamphragm
    - Large Roll Surround f. Wide Dispersion
    - Patented Symmetrical Drive (SD-2) motor
    - Sound Transparant Protective Grill
    - Non Resonant Alu Rear Chamber
    - Die Cast Housing & Face Plate


      Size:2.6 cm
      Fs:700 Hz
      Re:3 Ω
      Qt:1.15
      Sensitivity:89 dB
      VAS:0.01 ltr.
      Sd:7 cm²
      Bl:1.7 Tm


  • Automotive

    D3004/602006


    - 1" Textile Dome Diamphragm
    - Patented Symmetrical Drive (SD-2) motor
    - Patented Symmetrical Drive (SD-2) motor
    - Large Roll Surround f. Wide Dispersion
    - Sound Transparant Protective Grill
    - Die Cast Housing & Face Plate


      Size:2.6 cm
      Fs:700 Hz
      Re:3 Ω
      Qt:1.15
      Sensitivity:89 dB
      VAS:0.01 ltr.
      Sd:7 cm²
      Bl:1.7 Tm


  • Tweeter

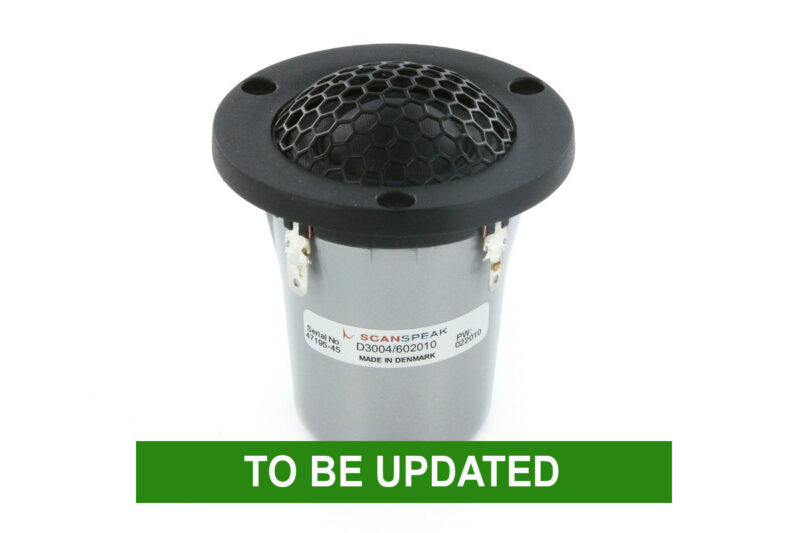

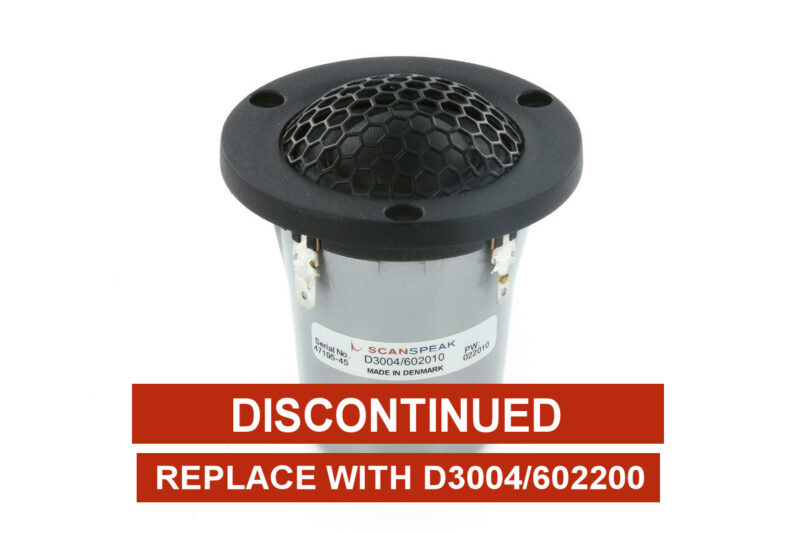

    D3004/602010


    - 1" Textile Dome Diamphragm
    - Large Roll Surround f. Wide Dispersion
    - Patented Symmetrical Drive (SD-2) motor
    - Sound Transparant Protective Grill
    - Large Non Resonant Alu Rear Chamber
    - Die Cast Housing & Face Plate


      Size:2.6 cm
      Fs:425 Hz
      Re:3 Ω
      Qt:0.7
      Sensitivity:89.5 dB
      VAS:0.03 ltr.
      Sd:7 cm²
      Bl:1.7 Tm


  • Tweeter

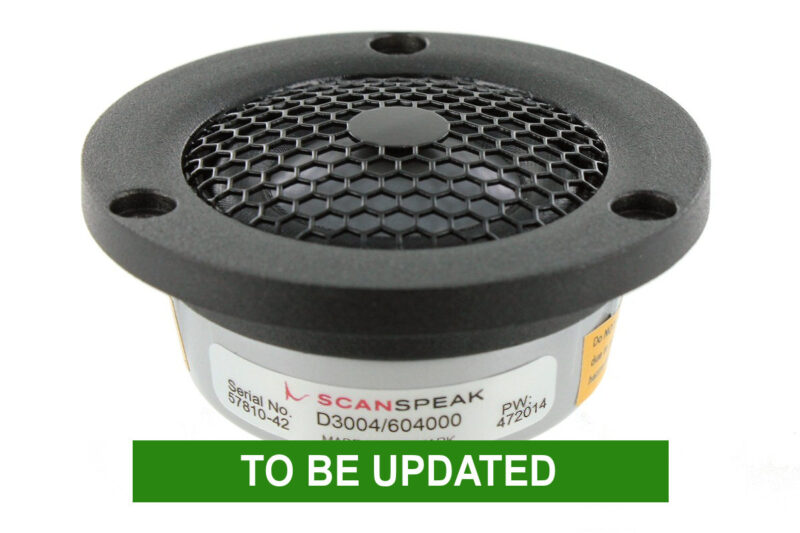

    D3004/604000


    - 1" Beryllium Diaphragm (99% pure Be)
    - Large Roll Surround f. wide dispersion
    - Patented Symmetrical Drive (SD-2) motor
    - Compact Non Resonant Alu Rear Champer
    - Die Cast Housing & Face Plate
    - Sound Transparant Protective Grill


      Size:2.6 cm
      Fs:750 Hz
      Re:2.9 Ω
      Qt:1.41
      Sensitivity:90.5 dB
      VAS:0.01 ltr.
      Sd:7 cm²
      Bl:1.2 Tm


  • Automotive

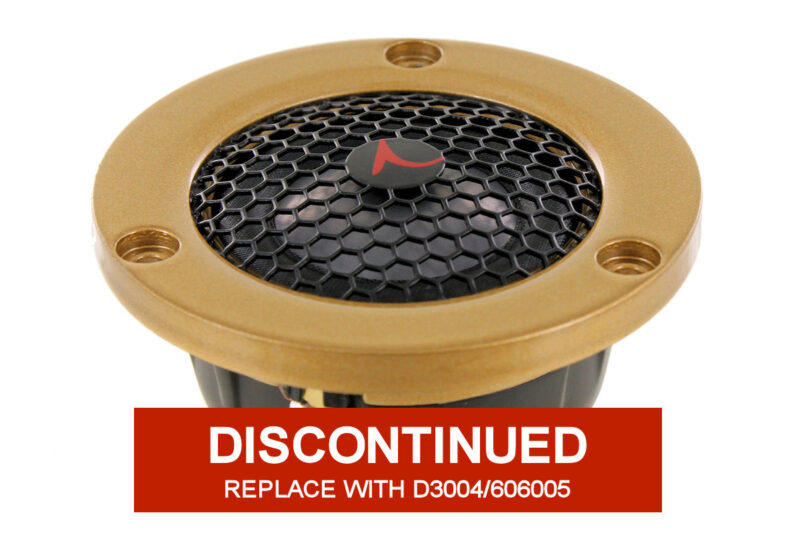

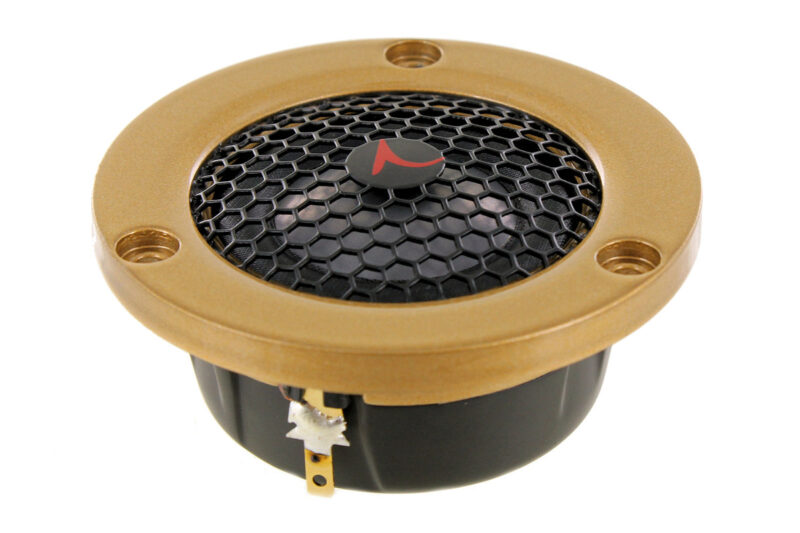

    D3004/604005


    - 1" Beryllium Diaphragm (99% pure Be)
    - High Power Patented SD-2 magnet system
    - Die Cast Housing & Face Plate
    - Large Roll Surround f. wide dispersion
    - Compact Non Resonant Alu Rear Champer
    - Sound Transparant Protective Grill


      Size:2.6 cm
      Fs:715 Hz
      Re:2.9 Ω
      Qt:0.69
      Sensitivity:92 dB
      VAS:0.01 ltr.
      Sd:7 cm²
      Bl:2.4 Tm


  • Tweeter

    D3004/604010


    - 1" Beryllium diaphragm (99% pure BE)
    - Patented symetrical drive (SD-2) motor
    - Large non resonant aluminium enclosure
    - Large roll surround f. wide dispersion
    - Sound transparant protective grill
    - Applicable for HiFi and automotive


      Size:2.6 cm
      Fs:450 Hz
      Re:3 Ω
      Qt:0.7
      Sensitivity:90.5 dB
      VAS:0.03 ltr.
      Sd:7 cm²
      Bl:1.7 Tm


  • Tweeter

    D3004/660000


    - 1" Textile Dome Diaphragm
    - Large Roll Surround f. Wide Dispersion
    - Patented Symmetrical Drive (SD-2) motor
    - AirCirc Motor Design w. 6 Neo magnets
    - Die Cast Rubber Painted Alu Face Plate



      Size:2.6 cm
      Fs:470 Hz
      Re:3 Ω
      Qt:0.49
      Sensitivity:91.5 dB
      VAS:0.02 ltr.
      Sd:6.9 cm²
      Bl:2.3 Tm


  • Tweeter

    D3004/662000


    - 1" Textile Dome Diaphragm
    - Large Roll Surround f. Wide Dispersion
    - Magnet System w. Alu Ring
    - AirCirc Motor Design w. 6 Neo magnets
    - Diffraction Damping Rubber Front
    - Die Cast Rubber Painted Alu Face Plate


      Size:2.6 cm
      Fs:500 Hz
      Re:3 Ω
      Qt:0.54
      Sensitivity:91.5 dB
      VAS:0.02 ltr.
      Sd:7 cm²
      Bl:2.3 Tm
